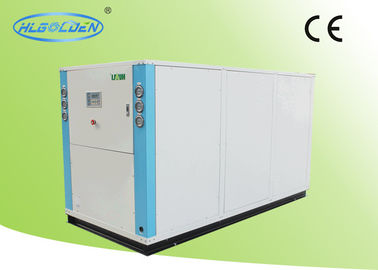

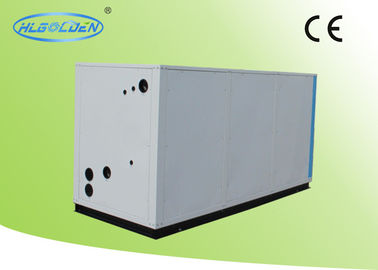

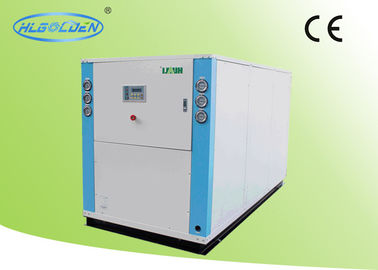

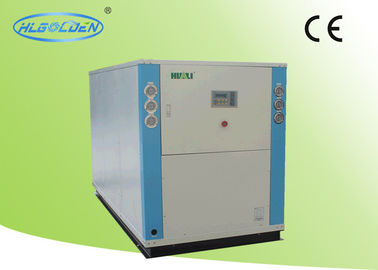

Water Chiller for Injection Molding Machine

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	20 Units per Month

Contact Now

Detailed Product Description

Function:	Industry Cooling	Cooling Capacity:	10.2~156KW
Input Power:	2.85~32.8KW	Compressor:	1~3 Pcs
Comp. Current:	5.3~64.2 A	Power Supply:	380~400V/3PH/50HZ
Circuit Number:	1~3	Water Tank:	80~270 L
Water Pump:	0.75~2.2 KW	Type:	Water Cooled Chiller
Protection:	Low Temp. Protection	Noise:	54~75 Db(A)
Total Weight:	120~1180 KGS
High Light:	Water Cooler Chiller , Air Cooled Scroll Chiller

Power saving 3Ph Water Cooled Chiller For Injection Molding Machine

Product Description:

1. Energy-conserving and environment-protective
2. Power saving and high efficient.
3. It is very safe of using.

4. Cooling Capacity: 10.2KW~156.0KW.

5. Input power: 2.85KW~32.8KW;

6. Condenser/Evaporator: Shell and tube type.

7. Compressor quantity: 1~3 Pcs.

8. Power supply: Standard voltage is 380V/3Ph/50Hz.

9. Total weight: 120~1180KG.

Product Detail:

Model HLLW ～		03SPI	08SPI	12.5SPI	20DPI	30DPI	45TPI
Rated Cooling Capacity	×1000 kcal/h	8.8	22.9	35.4	60.7	89.4	134.1
Rated Cooling Capacity	KW	10.2	26.6	41.2	70.6	104.0	156.0
Input Power (KW)		2.85	6.3	9.3	15.1	22.6	32.8
Comp. Input Power×Qty. (KW)		2.1	5.2	7.8	6.8×2	10.2×2	10.2×3
Chillded Water Pump Model		HT1.0DK-20	HT40-15	HT50-17	HT50-17	HT65-19	HT65-19
Chilled Water Pump Power (KW)		0.75	1.1	1.5	1.5	2.2	2.2
Comp. Current (A)		5.3	12.6	18.1	31.1	44.2	64.2
Power Supply		3φ-380V-50HZ
Safety Protection		Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection,
Number of Refrigeration Circuit		1			2
Capacity Control (%)		0, 100			0, 50, 100
Refrigerant		R22
Condenser		Shell and Tube Type
Water Side Max Pressure (MPa)		1
Dia. of Pipe to Condenser (inch)		1"	1-1/2"	2"	2"	2-1/2"	2-1/2"
Cooling Water Flow (L/m)		35.3	91.2	140.5	225.3	355.4	533.1
Condenser Water Pressure drop (kPa)		21	23	31	56	58	56
Evaporator		Pipe Coil Type	Shell and Tube Type
Water Side Max Pressure (MPa)		-	1
Dia.of Pipe to Evaporator (inch)		1"	1-1/2"	2"	2"	2-1/2"	2-1/2"
Chilled Water Flow (L/m)		29.2	76.4	118.1	202.4	298.1	447.1
Evaporator Water Pressure drop (kPa)		-	17	28	28	32	31
Running Noise dB(A)		54	66	72	75	75	75
Tank Volume (L)		80	180	180	270	270	270
