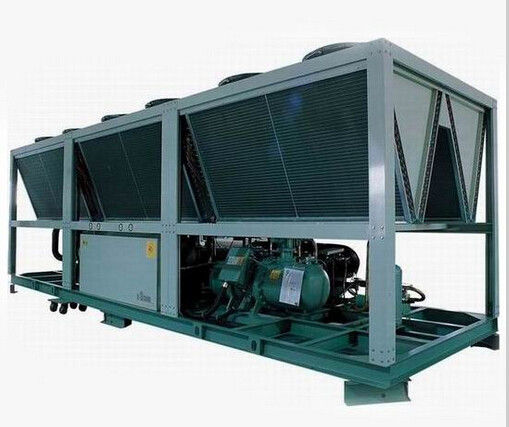

R22 Anti - Explosion Compact Air Cooled Screw Chiller With LCD Touch Screen

R22 Anti - Explosion Compact Air Cooled Screw Chiller With LCD Touch Screen

  • R22 Anti - Explosion Compact Air Cooled Screw Chiller With LCD Touch Screen
R22 Anti - Explosion Compact Air Cooled Screw Chiller With LCD Touch Screen
Product Details:
Place of Origin: ZHEJIANG,CHINA
Brand Name: KASSEL
Certification: CE,ISO
Model Number: KSF
Payment & Shipping Terms:
Minimum Order Quantity: ONE
Price: N.A.
Packaging Details: Export Wooden Case
Delivery Time: N.A.
Payment Terms: T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Detailed Product Description
Model: KSF-40l Cooling Way: Air
High Light:

air cooled Screw compressor Chiller

,

packaged chiller unit



R22  Industry Air-Cooled Screw Chiller For reactor And Control Temperature


Quick Detail:


1. VSD/VFD type available,ABB converter for your choice
2. Adopting famous brand of components like SKF bearing,Danfoss pressure sensor,French Schneider control system.



Description:




 Easy to install
    * Unit has compact, small footprint, saving room space;
    * Machine factory, has been completed strictly debug switch set, fully meet the design state;
    * Minimal vibration, no special isolation measures based, easy to install;
    * Installation just connect the evaporator and condenser cooling water, chilled water pipes.
Refrigeration Components / Electrical vitality of
    With world brand contactors, relays, thermal protection, expansion valves, pressure control, filter drier, to ensure the reliability of the unit.
Operation and maintenance costs low
    * Unit changes according to the load, the intelligent process control: 100%, 75%, 50%, 25% (or start), 0, saving energy
    * Only the total number of reciprocating screw compressor part 1 / 10, simple structure, less wearing parts, no suction, exhaust valve, is not sensitive to humidity trip, very low failure rate;
    * Screw compressor failure-free operation up to 40,000 hours.
PLC controller
    * Germany "SIEMENS" PLC programmable LCD touch screen controller, the whole man-machine interface (or English) text display;
    * Automatic monitoring of cold water temperature and operating conditions, through PLC auto control slide valve, regulating operation of the compressor level, the effective use of tracking on-site load;
Comprehensive security protection
    * Pressure protection
    * Power protection
    * Frost protection
    * Safety valve protection
    * Delay Protection
    * Water conservation



Specifications:

Model KSF

40L

Refrigeration Capacity

KW

128

Kcal/H(*10^4)

11

Compressor

Quantity

1

Power(KW)

28

Refrigeration

R22

Refrigeration Doses

32

Energy Control Section %

0/25/50/75/100

Condenser

Fan Input Power
(KW)

2.8

Fan Delivery(M³/H)

48000

Evaporator

In&Outlet Temper

12/7

Water Resistance

<=60

Water Flow(M³/H)

22

Diameter

DN65

Heat Recovery

Heat At 7 When
 Water Is Supplied

3.3

Circulating Water

30-52℃
