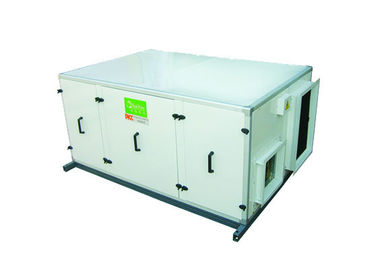

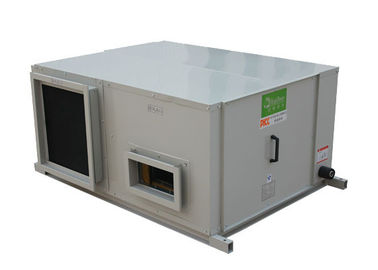

Commercial Ceiling Mounted Fresh Air Heat Recovery Heat Pump For HAVC System

Commercial Ceiling Mounted Fresh Air Heat Recovery Heat Pump For HAVC System

  • Commercial Ceiling Mounted Fresh Air Heat Recovery Heat Pump For HAVC System
  • Commercial Ceiling Mounted Fresh Air Heat Recovery Heat Pump For HAVC System
Commercial Ceiling Mounted Fresh Air Heat Recovery Heat Pump For HAVC System
Product Details:
Place of Origin: China
Brand Name: Head-Power
Certification: CE/ISO
Model Number: HAX060
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Wooden case/carton case
Delivery Time: 25~30days
Payment Terms: TT, LC
Supply Ability: 2000pcs per year
Contact Now
Detailed Product Description
Product Name: Heat Recovery Heat Pump Application: Air Conditioning And Heat Recovery
Cooling Capacity: 28kW Heating Capacity: 30kW
Material: Galvanized Steel Sheet Refrigerant: R22 / R407C /R410A
Compressor: Scroll Type Power Supply: 380V/3PH/50Hz
High Light:

heat recovery ventilation unit

,

air heat recovery unit

Heat Recovery Fresh Air Unit With Heat Pump, Heat Recovery Air Conditioning System



Specifications:



Model



HAX040

HAX050 HAX060 HAX070
Cooling capacity kW 19 23 28 33
Heatiing capacity kW 20 24.3 30 35

Air Flow

m3/h

4000

5000 6000 7000

Power supply



380V/3PH/50Hz

Supply fan

Type



Centrifugal type

Air volume

m3/h

4000

5000 6000 7000

External static

pressure

Pa

150

180 180 220

Motor power

kW

0.75

1.1 1.5 2.2

Drive method



Driect drive/ Belt drive

Exhaust fan

Type



Centrifugal type

Air volume

m3/h

3600

`4500 5400 6300

External static

pressure

Pa

150

180 220 240

Motor power

kW

0.75

1.1 1.5 2.2

Drive method



Driect drive

Plate Heat recovery (optional)



Type



Plate type heat recovery

Material



Aluminium core

 Recovery efficiency



≥88%

≥88% ≥88% ≥88%

Recovery efficiency

(without plate heat exchanger)

       ≥85% ≥85% ≥85% ≥85%
Compressor Type   Scroll Scroll Scroll Scroll
Power   3.6 4.3 5.1 6.4
Refrigerant   R22 (optional R407C/R410A)

Noise level

dB(A)

51

52 52 53

Dimensions(L*W*H)-ceiling mounted(standard type)

mm

1800*1200

*800

2000*1200

*800

2200*1200

*800

2200*1600

*980

Net weight

kg

550

590 650 780



Description:


1. Famous brand scroll compressor, external balance thermostatic expansion valve, solenoid valve, copper tubes with hydrophilic aluminium fins heat exchanger.



2.  Fully fresh air, high air quality.

     Fresh air from outside can be directly treated by the unit, and indoor polluted air extract from this unit.The heat exchange channel betwen fresh air and exhaust air not only meet the air conditioning requirements, but also ensure cleaness of fresh air, prohibiting cross contamination of air.



3. Independent fresh air refrigerant system

    Compared to conventional chilled water systems, the evaporating termperature of the unit is 8~10 ℃ higher, and no need for heat exchange of chilled water, the COP improves more than 30%.



4. No need of cooling tower and outdoor unit

   The  units adopts copper fins with aluminium fins condenser, could be cooled directly by exhaust air, lower condensing temperature, improve refrigeration performance.

   Compact and packaged design, no need outdoor unit or cooling tower, save investment cost and installation space, lower maintainance fees.



5. Eco-friendly refrigerant R407C, R410A could be used.
Commercial Ceiling Mounted Fresh Air Heat Recovery Heat Pump For HAVC System 0

 Advantages:

1. Heat and energy heat recovery, saving energy for building consumption.
2. Higher efficiency than conventional air conditioner units, recovery energy from extract air.

3. Fully fresh air, solve the sick problem due to long time air conditioning.
4. Different structure for optioinal, ceiling mounted, vertical mounted, horizontal mounted type;




Applications:


1. Commercial buildings: Star hotels, restaurants, office buildings, schools, supermarkets, shopping mall, entertainment centers,theaters,etc
2. Industrial field: Electronic factory,pharmaceutical factory, precision instrument factory,petrochemical factory,tobacco factory, cooling for production process, etc.
3. Public places: Airports, stations, exhibition halls, stadiums, museums, convention centers, church,etc

Commercial Ceiling Mounted Fresh Air Heat Recovery Heat Pump For HAVC System 1

Commercial Ceiling Mounted Fresh Air Heat Recovery Heat Pump For HAVC System 2
