| Place of Origin: | China |
| Brand Name: | Head-Power |
| Certification: | CE, ISO |
| Model Number: | HAM12 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden case/carton case |
| Delivery Time: | 25~30days |
| Payment Terms: | TT, LC |
| Supply Ability: | 3,000pcs per year |
| Product Name: | Jet Supply Air Conditioner | Application: | Commercial Air Conditioning |
|---|---|---|---|
| Cooling Capacity: | 31.2kw | Refrigerant: | R22 |
| Compressor: | Hitachi Scroll Compressor | Power Supply: | 380V/3PH/50Hz |
| Material: | Painted Galvanized Steel Sheet | Color: | White Grey |
| High Light: | multi split air conditioner,split units air conditioners |
||

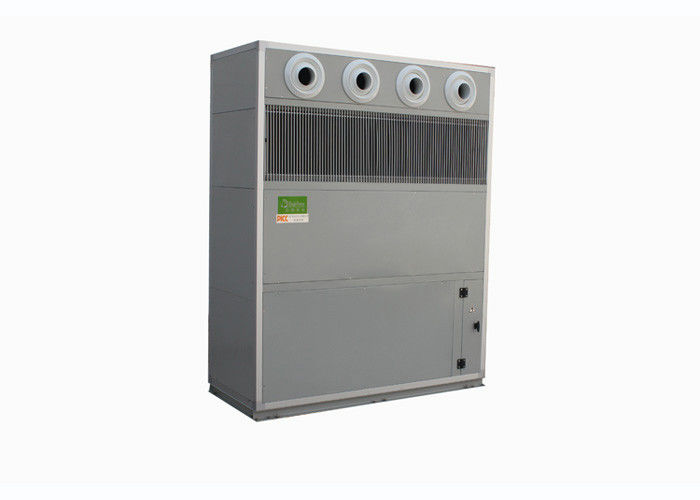

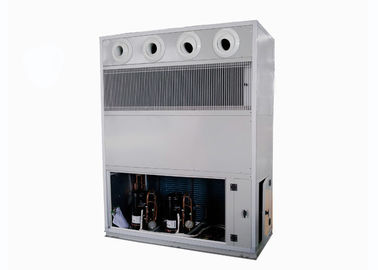

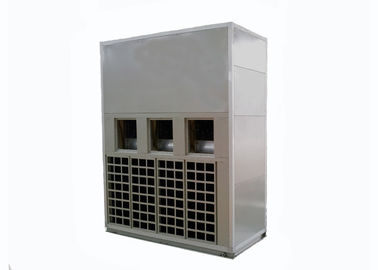

Floor Standing Long Range Jet Supply Air Conditioner 380V / 3PH / 50Hz
Specifications:
|
Model |
|
HAM12(H) |
|
|
Cooling capcity |
kW |
31.2 |
|
|
Heating capacity |
kW |
33 |
|
|
Power supply |
|
380V/3PH/50Hz |
|
|
Refrigerant |
|
R22 |
|
|
Air Volume |
m3/h |
5500 |
|
|
External static pressure |
Pa |
0 |
|
|
Compressor |
Type |
|
Hermetic Scroll |
|
Power |
kW |
9.6 |
|
|
Quantity |
pcs |
2 |
|
|
Supply fan |
Type |
|
DIDW, centrifugal type |
|
Air volume |
m3/h |
5500 |
|
|
Motor power |
kW |
2*0.75 |
|
|
Drive method |
|
Direct drive |
|
|
Evaporator |
Type |
|
Copper tubes with aluminium fins |
|
Throttle method |
|
External balanced thermal expansion valve |
|
|
Electric controller |
|
LCD display screen, automatic microcomputer controller, failure alarm, balance operation time, Timer on/off,etc |
|
|
Net weight |
kg |
225 |
|
|
Dimensions(L*W*H) |
mm |
1500x800x 2000 |
|
|
Matched condensing unit |
|
SW12 |
|
| Condener | Type | Copper tubes with hydrophilic aluminium fins | |
| Condensing fan | Type | Axial type | |
| Power | kW | 0.55 | |
| Dimensions(L*W*H) | mm | 1150*1050*1150 | |
| Net weight | kg |
360 |
|
Description:
1. Flexbile hermetic scroll compressor, high and steady working performance, Hitachi, Copeland, Sanyo, etc.
2. Independent refrigerant system: each compressor is equipped with an independent refrigerant circuit, easy for energy regulation, save energy and ensure running reliablity.

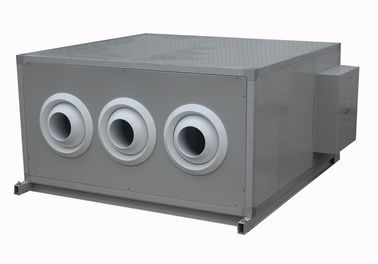

3. Long range jet supply air, floor standing and ceiling mounted type are available..
4. Microcomputer controller, simple interface, adjust temperature automatically, convenient for operation and easy for maintainance.
5. Galvanized steel sheet, outside powder coated, anti-corrosion and weather proof type condenser.
6. For standard model, compressors are installed in condensing unit.
7. Differenct kinds of refrigerant available: R22, R134a, R407C.
Applications:
Industry factories: Electronic factory,pharmaceutical factory, precision instrument factory,petrochemical
factory,tobacco factory, cooling for production process, etc
Public places: Airports, stations, exhibition halls, stadiums, museums, convention centers, apartments,
church,etc
