Swimming Pool Air Handling Units With Cooling And Wheel Dehumidification

Product Details:

Place of Origin:	China
Brand Name:	Head-Power
Certification:	ISO
Model Number:	ZCK025

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	negotiation
Packaging Details:	Wooden case/carton case
Delivery Time:	25~30days
Payment Terms:	TT, LC
Supply Ability:	2000pcs per year

Contact Now

Detailed Product Description

Product Name:	Air Handling Unit	Application:	Swimming Pool
Air Flow:	2500 M3/h	Cooloing Coil:	Chilled Water
Panel Material:	Galvanized Steel Panel	Power Supply:	380V/3PH/50Hz
Panel Thickness:	50mm	Frame:	Aluminium Alloy
High Light:	hvac air handling unit , AHU Air Handling Unit

Swimming Pool Air Handling Units With Cooling And Wheel Dehumidification

Specifications:

Model			ZCK025
Supply Air Flow		m3/h	2500
External Static Pressure		Pa	150
Power supply			380V/3PH/50Hz
Filter	Prefilter		Nylon filter, fresh air inlet
	Primary filter		Plate filter G4, before cooling coil
	Middle filter		Non woven bag filter, F7
First cooling coil	Capacity	kW	20
	Type		Copper tubes with aluminium fins
	Fluid		Chilled water
	Inlet/outlet water temp.		7 / 12℃
	Max.velocity	m/s	2.5
	Water flow	m3/h	3.5
Dehumidification	Type		Wheel dehumidifier
	Air flow	m3/h	2500
	Regeneration heater	kW	21
Second cooling coil	Type		Copper tubes with aluminium fins
	Capacity	kW	15
	Inlet/outlet water temp.	℃	7 / 12
	Water flow	m3/h	2.6
Eliminator	Type		Not included
Supply fan	Type		Centrifugal type
	Air volume	m3/h	2500
	External static pressure	Pa	150
	Motor power	kW	0.75
	Drive method		Direct drive
Electric controller (Optional)			DDC Electric Controller

Description:

1. 50mm thick sandwich panels with PU foam insulation, external panel is painted galvanized steel, inside panel could be painted galvanized steel sheet or stainless steel sheet, anti-corrosion, suitable for humid environment of swimming pool.

2. Aluminium alloy frame, anti cold bridge design, elimination of thermal bridges;
3. Access door: Outward opening for negative pressure section, inward opening for positive pressure section, reduce air leakage. Hinged door or panel door. Access window is optional.
4. Fan system: DIDW backward or forward curved blade centrifugal fan, direct driven plug fan is also offered for some special AHU;
5. Motor: famous brand good quality motor, insulation class F. Belt drive, high quality V-shaped belt, anti vibration rubber or spring damper, reduce vibration transmission.
6. Copper tubes with hydrophilic aluminium fins, high heat exchange efficiency, anti-corrosion.
7. Drain pan: Suitable slope drain pan, easy for water drainage, stainless steel or painted galvanized steel material. All pans have done leakage and pressure test.
8. Filteration: Adopt nylon or metal mesh prefilter, non woven plate filter for primary filter G3~G4(Efficiency 55%~75%), bag filter for secondary filter F7~F9(efficiency 80%~95%), HEPA filter or special function filter is optional

9. Wheel dehumidication: strong capacity of dehumidification, excellent performance in low or high temperature, alkali environment.
10. Swimming pools and spa baths are especially energy-intensive buildings, they offer because of this fact numerous opportunities for energy-saving and energy-recovering measures. Usually, there are plate heat exchangers or wheel heat recovery units for choice , save energy in a maximum degree.

Applications:

Swimming pools, spa baths, sauna bath house, or other humid area requirement cooling and dehumidiciation.

Could be worked as supply air with cooling, dehumidification separately or together according to necessary.

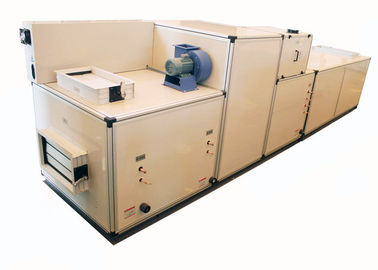

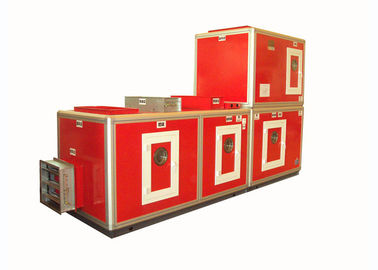

Swimming Pool Air Handling Units With Cooling And Wheel Dehumidification 0
