Medium Brazed Aluminum Plate-Fin Heat Exchanger With Compact Structure

Product Details:

Place of Origin:	China
Brand Name:	Jinxi
Certification:	ISO9001:2008
Model Number:	Air separator-2702

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	Wooden/paper box/paper box
Delivery Time:	10-15 working days
Payment Terms:	T/T ,Western union
Supply Ability:	130Tons/month

Contact Now

Detailed Product Description

High Light:

air to air heat exchangers

Air to air radiator

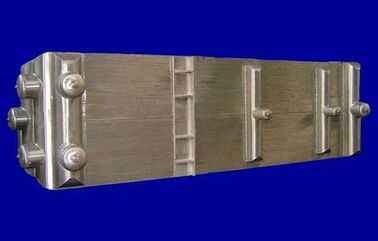

The Brazed Aluminum Plate-Fin Heat Exchanger With Compact Structure

The Brazed Aluminum Plate-Fin Heat Exchanger with the characteristics of compact structure,light weight and high heat taransfer efficiency ,the aluminum plate fin heat exchanger is widely used in various industries such as gas separation plant , LNG plant,transportation, petrochemical and refrigeration applications.

Quick Detail:

Name	Air separation heat radiator	Brand Name	Jinxi
Color	Silver	Feature	Compact structure,high transfer efficiency
Technique	Brazing / Arc Welding	Certificate	ISO9001:2008

2. Specifications

Aluminum vacuum brazed plate-fin air separation radiator
Integrated design for pre-cooling,evaporation,fog-removing and water-separating,compact and less losing of cooling and the lowest dew point to 2℃.
Single unit for air-treating quantity:0.5m³/min-200m³/min
Applications: for air separation industry and chemical profession,Evaporator
Structure: Plate-fin
Highly flexible complete,ready-to-use cooling packages

3. Description:

Production:Medium-sized air separation heat exchanger
Material: Aluminium
Technique: Vacuum Brazing and argon welding
Characteristic:it’s a construction machinery air separation heat exchanger,compact structure, robust design,less losing and the lowest dewoint ,light weight ,easy installation.
Air separation made of following process: Fin punching, Cleaning , Core Assembly and the importance process--Vacuum Brazing ->Part Machining-> Welding->Pressure Test->Drying ->Overall Inspection -> Painting -> Packaging
OEM&ODM service provided

FIN SPEC.
Fins	Pitch(mm/FPI)	G(mm)	H(mm)
Louvered Fin	2.5~5mm/10~20FPI	0.1~0.17	6.5~18
Wavy Fin	2.5~8mm/6~20FPI	0.1~0.35	2.5~12
Flattop Fin	2.1~10mm/5~20FPI	0.1~0.2	2.5~12
Offset Fin1	4.5~8mm/6~16FPI	0.15~0.5	1~5
Offset Fin2	4~8mm/6~13FPI	0.12~0.2	5~18

Place of Origin:	China
Brand Name:	Jinxi
Certification:	ISO9001:2008
Model Number:	Air separator-2702

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Wooden /paper box
Delivery Time:	10-15 working days
Delivery Terms:	FOB shanghai
Payment Terms:	T/T ,Western union
Supply Ability:	130Tons/month

The Most Efficient Service, Best Quality and Excellent Reputation

Reason to choose:

1) Design term:We have professional design team.

2) Sales market: Our Jinxi company have been founded for many years.During the period,we are focused on producing various types of heat exchanger,and have a good selling in Europe,North America,Korea,Australia,Indonesia, Southeast and Asia.

3) Reasonable price: We do not believe in huge profit margin for long term business.Win-win is the survival.Our price is more competitive than others manufacturer.

4) Excellent quality:Our technicians have rich professional working experience,and design or produce what you want and our products have passed ISO certification.

5) Quick response to your enquiry within 24hours.
