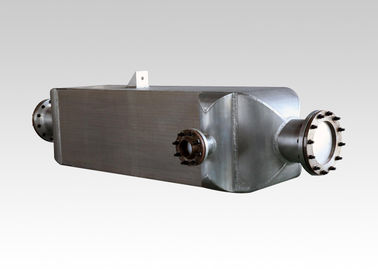

Aluminum Brazed Plate Fin Heat Exchanger For Air Separation

Aluminum Brazed Plate Fin Heat Exchanger For Air Separation

  • Aluminum Brazed Plate Fin Heat Exchanger For Air Separation
  • Aluminum Brazed Plate Fin Heat Exchanger For Air Separation
  • Aluminum Brazed Plate Fin Heat Exchanger For Air Separation
  • Aluminum Brazed Plate Fin Heat Exchanger For Air Separation
Aluminum Brazed Plate Fin Heat Exchanger For Air Separation
Product Details:
Place of Origin: China
Brand Name: Jinxi
Certification: ISO9001:2008
Model Number: Air separator-003
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden/paper box
Delivery Time: 10-15 working days
Payment Terms: T/T ,Western union
Supply Ability: 130Tons/month
Contact Now
Detailed Product Description
High Light:

air to air heat exchangers

,

Air to air radiator





  1. Aluminum Brazed Plate Fin Heat Exchanger For Air Separation



Quick Detail:



Name Air separation coolers Brand Name Jinxi
Color Silver Feature Resistant to vibration,Good cooling efficiency
Technique Brazing / Arc Welding Certificate ISO9001:2008





2. Specifications

  • Aluminum vacuum brazed air separation radiator
  • Integrated design for pre-cooling,evaporation,frog-removing and water-separating,compact and less losing of cooling and the lowest dew point to 2℃.
  • Single unit for air-treating quantity:0.5m³/min-200m³/min
  • Applications: for air separation industry and chemical profession.
  • Structure: Plate-fin
  • Highly flexible complete,ready-to-use cooling packages
  • Compact and robust design
  • OEM&ODM service provided



3. Description:

  1. Production:air separation heat exchanger
  2. Material: Aluminium
  3. Technique: Vacuum Brazing and argon welding
  4. Characteristic:it’s a construction machinery air separation heat exchanger,compact structure, light weight ,easy installation.
  5. Process flows: Blanking ->Fin Punching- > Cleaning - > Core Assembly- >Vacuum Brazing ->Part Machining-> Welding->Pressure Test->Drying ->Overall Inspection -> Painting -> Packaging

FIN SPEC.
Fins Pitch(mm/FPI) G(mm) H(mm)
Louvered Fin 2.5~5mm/10~20FPI 0.1~0.17 6.5~18
Wavy Fin 2.5~8mm/6~20FPI 0.1~0.35 2.5~12
Flattop Fin 2.1~10mm/5~20FPI 0.1~0.2 2.5~12
Offset Fin1 4.5~8mm/6~16FPI 0.15~0.5 1~5
Offset Fin2 4~8mm/6~13FPI 0.12~0.2 5~18





Place of Origin: China
Brand Name: Jinxi
Certification: ISO9001:2008
Model Number: Air separator-003





Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden /paper box
Delivery Time: 10-15 working days
Delivery Terms: FOB shanghai
Payment Terms: T/T ,Western union
Supply Ability: 130Tons/month





Choose Us; Do Not Hesitate:



1) Design term:We have professional design team.



2) Professional manufacturer: Our Jinxi company have been founded for many years.During the period,we are focused on producing various types of heat exchanger,and have a good selling in Europe,North America,Korea,Australia,Indonesia, Southeast and Asia.



3) Reasonable price: We do not believe in huge profit margin for long term business.Win-win is the survival.Our price is more competitive than others manufacturer.



4) Excellent quality:Our technicians have rich professional working experience,and design or produce what you want and our produces have passed ISO certification.





5) Rapid response to your needs:We will reply within 24 hours after receiving you letter.If you have urgent thing,welcome to call us.



6) The Most Efficient Service, Best Quality and Excellent Reputation
