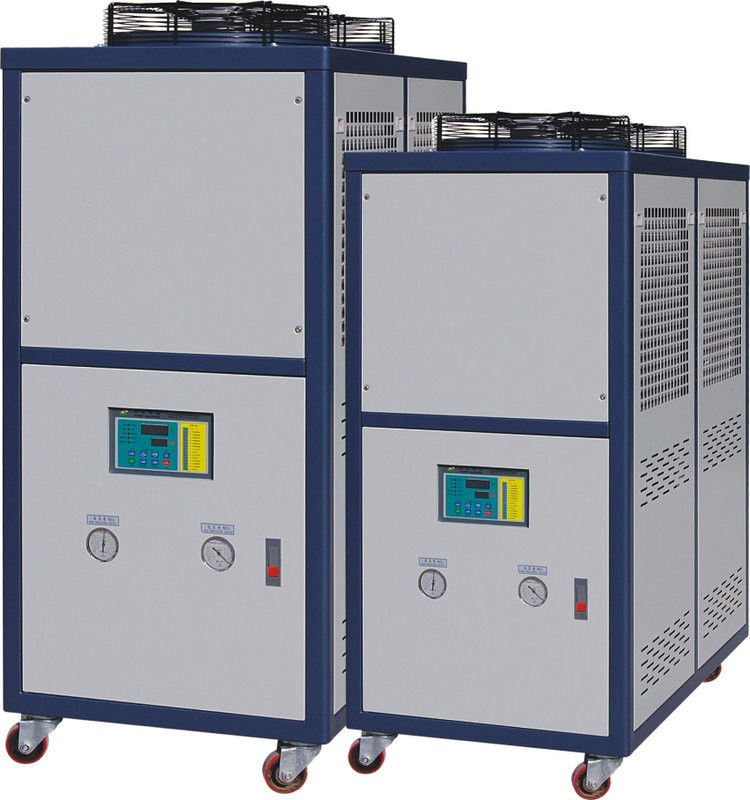

Recirculating Industrial Air Cooled Chillers , Box Type Free Cooling Chillers

Recirculating Industrial Air Cooled Chillers , Box Type Free Cooling Chillers

  • Recirculating Industrial Air Cooled Chillers , Box Type Free Cooling Chillers
Recirculating Industrial Air Cooled Chillers , Box Type Free Cooling Chillers
Product Details:
Place of Origin: China
Brand Name: Aode
Certification: ISO,CE
Model Number: AC-1/2A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Protective/air bubble film, Wooden case. As client’s requirement.
Delivery Time: Within 20days after receiving deposit
Payment Terms: 30% T/T in advance, 70% balance before we delivery
Supply Ability: 500pcs/month
Contact Now
Detailed Product Description
Product Name: Air Cooled Chillers Brand Name: AODE
Application: Pringting, Rubber Presses, Extruder Certification: CE, ISO
Compressor Type: Hermetic Scroll Or Piston Power Supply: 3N-380V 50HZ
Theory: Air Cooled
Highlight:

Industrial water chiller



Recirculating Industrial Air Cooled Chillers , Box Type Free Cooling Chillers





Quick Detail:



1. High/Low pressure protection for the compressor and overheating protection inside the machine

2. Low water level alarm and low water temperature alarm

3. Certification:CE & ISO

4. Compressor type: Totally closed vortex type or piston type

5. Refrigerating capacity: 1316Kcal/h(50HZ)

6. Warranty:1 year





Description:



  • High/low pressure protection for the compressor and overheating protection inside the machine
  • Low water level alarm and low water temperature alarm
  • Imported compressor from Europe, US and Japan
  • Refrigerating system welded with oxygen free method, to reduce oxides and ensure the smooth surface
  • Throttle components from Danfoss (Denmark) and Alco (US)
  • SUS304 stainless steel water tank, to avoid corrosion or water leak
  • Stainless plate, coil, shell and tube or fin type efficient heat exchanger
  • RS485 communication function, to realize automatic management(optional)
  • Electrical devices supplied from OMRON, FUJI, TE, LG, MOELLER and SCHNEIDER
  • Control mode: imported micro-computer or PLC(optional)
  • Perfect safety protection, failure display, and not requiring professional personnel for maintenance
  • Highly efficient evaporator and condenser, to save over 30% energy
  • 2 compressor heads for over AC-08, for individual or joint operation





Specifications:



ITEM

UNIT

AC-1/2A

Cooling capacity

KW50HZ

1.53



Kcal/h 50HZ

1316

Total input

KW

0.68

Maximum Running Current

A

4.1

Power supply



1N-220V 50HZ

Refrigerant

Name

R22



Charge

Kg

0.6



Control Type

Capillary Tube

Compressor

Type



Hermetic Rotary



Power

Kw

0.55

Air Flow

M3/h

800

Chilled water

Flow

M3/h

0.26



Tank

M3

                     0.022



In/Out Pipe Size

G1/2”

water Pump

Power

Kw

0.375



Pressure

Kpa

180

Size(L×W×H)

mm

600×400×940

Weight

Kg

45





Competitive Advantage:



  1. Our core competitiveness:advance technology,the pioneer of TCU industry, Convenient and efficient nationwide service network
  2. Excellent R&D team
  3. Customization thick copper pipe 1.0-1.2
  4. Our core concept:Innovation, high-quality, integrity, service, focus
  5. High density heat insulation cotton and aluminum foil
  6. Electric appliances brands:OMRON, JUJI, TE.LG, MOLLER, ABB and WEST
  7. The thickness of our machine rack is 1.2mm
  8. We have the production certification organic heat transfer material heater





Applications:



Aluminium Alloy: Car accessories

Magnesium alloy: Communication device, navigation

Hot Rolling Machine: Calender Rolls, Wood Presses, Laminating Presses,Molding Presses, Rubber Presses, Jacketed Vessels, Reactors, Heat Exchangers, Mixers, Printing Machines, Asphalt, Vulcanizing Presses.
Die casting,plastic  Injection molding, light guide plates, connectors, Chemical engineering, Shoe materials, Pringting and dyeing, Drying and banburying.





Recirculating Industrial Air Cooled Chillers , Box Type Free Cooling Chillers 0



Recirculating Industrial Air Cooled Chillers , Box Type Free Cooling Chillers 1





Nowadays, Aode Machinery Co.,ltd continue to uphold the purpose of international standards designs and high quality products, applying ourselves to providing high standard products and whole-journey nanny service. Our products are widely applied in plastic injection molding, light guide plates, connectors, chemical engineering, compression casting, reaction kettles, rubber tires, calendaring, shoe materials, printing and dyeing, drying and banburying and tec. And widely sold to Japan, America, Italy, Brazil, Southeast Asia, Africa and etc. The brand recognition from the market is sufficient to prove that our temp. control system can replace the imported similar products. Belows are our honor clients.



Recirculating Industrial Air Cooled Chillers , Box Type Free Cooling Chillers 2
