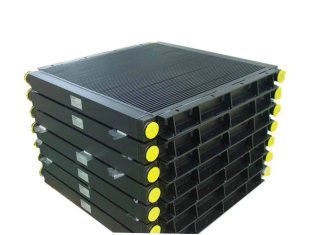

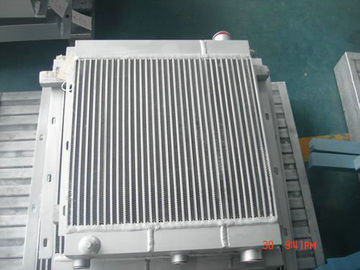

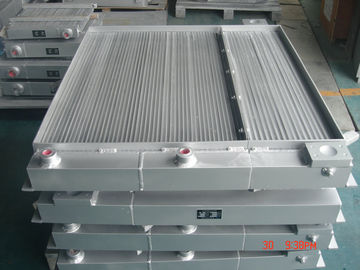

Plate-fin combined heat exchanger radiator , oil-air cooler for screw air compressor

Plate-fin combined heat exchanger radiator , oil-air cooler for screw air compressor

  • Plate-fin combined heat exchanger radiator , oil-air cooler for screw air compressor
  • Plate-fin combined heat exchanger radiator , oil-air cooler for screw air compressor
  • Plate-fin combined heat exchanger radiator , oil-air cooler for screw air compressor
  • Plate-fin combined heat exchanger radiator , oil-air cooler for screw air compressor
Plate-fin combined heat exchanger radiator , oil-air cooler for screw air compressor
Product Details:
Place of Origin: China
Brand Name: Jinxi
Certification: ISO9001:2008
Model Number: Oil-air compressor-001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden/paper box
Delivery Time: 10-15 working days
Payment Terms: T/T ,Western union
Supply Ability: 130Tons/month
Contact Now
Detailed Product Description
Highlight:

oil air heat exchanger





1. Combined cooler heat exchanger radiator, oil - air cooler for screw air compressor



Quick Detail:



Name Plate-fin combined oil-air radiator Brand Name Jinxi
Color Silver / black Feature Resistant to vibration,Good cooling efficiency
Technique Brazed/Welding Certificate ISO9001:2008





2. Specifications

  • Aluminum combined oil-air cooler
  • Working pressure 2-40 bar
  • Working temp -10-220 Deg C
  • Applications Screw air Compressor,compact size and rugged construction
  • Structure Plate-fin
  • Highly flexible complete,ready-to-use cooling packages
  • Compact and robust design
  • Largest and most comprehensive series of oil-air radiators.
  • OEM&ODM service provided



3. Description:

  1. Production:oil-air heat exchanger for compressor
  2. Material: Aluminium
  3. Technique: Vacuum Brazing and argon welding
  4. Characteristic:it’s a construction machinery oil-air cooler,compact structure, easy installation.
  5. Process flows: Blanking ->Fin Punching- > Cleaning - > Core Assembly- >Vacuum Brazing ->Part Machining-> Welding->Pressure Test->Drying ->Overall Inspection -> Painting -> Packaging



FIN SPEC.
Fins Pitch(mm/FPI) G(mm) H(mm)
Louvered Fin 2.5~5mm/10~20FPI 0.1~0.17 6.5~18
Wavy Fin 2.5~8mm/6~20FPI 0.1~0.35 2.5~12
Flattop Fin 2.1~10mm/5~20FPI 0.1~0.2 2.5~12
Offset Fin1 4.5~8mm/6~16FPI 0.15~0.5 1~5
Offset Fin2 4~8mm/6~13FPI 0.12~0.2 5~18





Place of Origin China
Brand Name Jinxi
Certification ISO:2008
Model Number Oil-air compressor-001





Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Wooden/paper box
Delivery Time 10-15 working days
Delivery Terms FOB shanghai
Payment Terms T/T ,Western union
Supply Ability 130Tons/month





Choose Us; Do Not Hesitate:



1) Design term:We have professional design team.



2) Professional manufacturer: Our Jinxi company have been founded for many years.During the period,we are focused on producing various types of heat exchanger,and have a good selling in Europe,North America,Korea,Australia,Indonesia, Southeast and Asia.



3) Reasonable price: We do not believe in huge profit margin for long term business.Win-win is the survival.Our price is more competitive than others manufacturer.



4) Excellent quality:Our technicians have rich professional working experience,and design or produce what you want and our produces have passed ISO certification.





5) Rapid response to your needs:We will reply within 24 hours after receiving you letter.If you have urgent thing,welcome to call us.



6) The Most Efficient Service, Best Quality and Excellent Reputation
