Industrial Plastic Auxiliary Equipment , Air Cooled Water Chiller System

Product Details:

Place of Origin:	Zhejiang China
Brand Name:	HAICHEN
Certification:	ISO9001:2000, CE
Model Number:	XC-A SERIES

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Packaging Details:	Wooden Carton
Delivery Time:	20Days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Application::

Modern Industry

Feature::

High Efficiency

Product Name::

AIR Chiller

Model::

XC-A Series

High Light:

Air Cooled Water Chiller

Automatic Temperature Controller

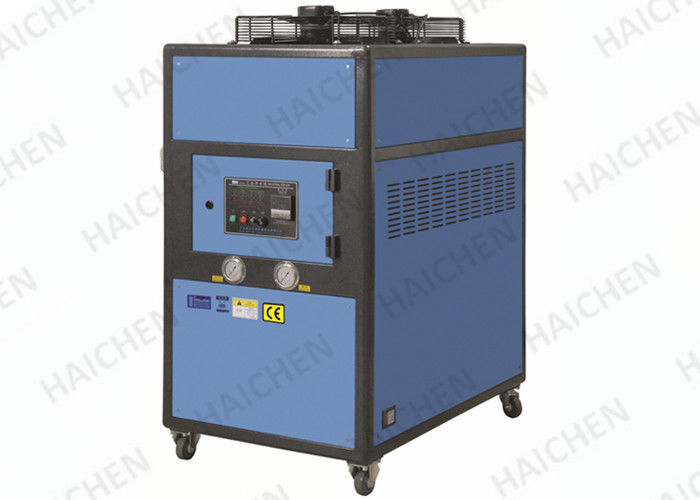

Air Cooling Type Water Chiller, Plastic Auxiliary Equipment for Industrial

The industrial chiller is specially designed on purpose to be used in the plastic manufacturing industry.The equipment can greatly raise the working efficiency of manufacturing machines and obviously improve the quality of products and earn more profit.

Quick Detail:

The XC-A series of air-cooled chillers use a single closed-loop design for pressurized refrigerant. All models are equipped with compressor and motor overload protection, phase shortage and reversal alarms, anti-freeze thermostat, pressure gauges, etc. They feature excellent performance and a long lifespan. The series of working flow is based on the basic principle of heat exchange. It is applicable to the industry that requires flow of precisely controlled chilled water, and considered as indispensable equipment for modern industry.

Main Features:

1. Compressor is usde"COPELAND" brand which made in USA. The inside safety protection can guarantee the long lasting of the chiller

2. The pump is used made in Taiwan and all parts of cooling system are imported from the USA, Mexico,Denmark and Japan

3. The industrial chiller is specially designed on purpose to be used in the plastic manufacturing industry.

4. Applied Machinery: Cooling system of oil temperature, ultrasonic, high frequency machinery.

Specifications		XC-01ACI	XC-03ACI	XC-05ACI	XC-08ACI	XC-10ACI	XC-12ACI
Cooling Capacity(kcal/h)		2300	6800	12040	19000	25200	34400
Compressor		All-closed Vorticity
Compressor Power(kw)		0.8	2.5	4.4	7	9	10.2
Refrigerant		R22(R407,R502 is alternative)
Chilled Water Pump Power(kw)		0.37	0.37	0.75	0.75	0.75	1.5
Max Flow Rate of chilled water(L/min)		90	90	115	115	123	217
Max.Pressure		22	22	28	28	22	25
Flow Water inlet and Outlet Pipe		1”	1”	1”	1”	1.5”	1.5”
Condensing Water Rate		0.1	0.25	0.5	0.5	0.5	0.5
Chilled Water inlet and Outlet Pipe		1”	1”	1.5”	1.5”	1.5”	2”
Water Case Shape	L(mm)	680	1030	1100	1220	1220	1220
	W(mm)	460	680	700	800	930	930
	H(mm)	840	1270	1400	1450	1600	1600
Water Tank Capa.		20	53	88	120	200	200
Wt.		35	180	240	300	360	380

Specifications		XC-15ACI	XC-20ACI	XC-25ACI	XC-30ACI	XC-40ACI	XC-50ACI
Cooling Capacity(kcal/h)		37000	45000	54000	76600	92800	113000
Compressor
Compressor Power(kw)		13.4	18	20.4	26.8	35	40
Refrigerant		R22(R407,R502 is alternative)
Chilled Water Pump Power(kw)		1.5	2.2	2.2	4	7.5	7.5
Max Flow Rate of chilled water(L/min)		217	315	315	400	600	600
Max.Pressure		25	26	26	50	55	55
Flow Water inlet and Outlet Pipe		1.5”	1.5”	1.5”	2”	3”	3”
Condensing Water Rate		1	1.5	1.5	1.5	3.2	3.2
Chilled Water inlet and Outlet Pipe		2”	2”	2”	2”	2”	4”
Water Case Shape	L(mm)	1220	1700	1980	1900	2000	2100
	W(mm)	1050	1100	1160	1200	120	1300
	H(mm)	1600	1920	1800	2000	2100	2100
Water Tank Capa.		240	380	380	Non-Water Box(Dry-Type)
Wt.		460	680	700	820	1100	1400
