| Place of Origin: | China |
| Brand Name: | Head-Power |
| Certification: | CE/ISO |
| Model Number: | WKL20 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden case/carton case |
| Delivery Time: | 25~30days |
| Payment Terms: | TT, LC |
| Supply Ability: | 3,000pcs per year |
| Product Name: | Rooftop Air Conditioner | Application: | Air Conditioning |
|---|---|---|---|
| Cooling Capacity: | 52kw | Refrigerant: | R22 |
| Compressor: | Hermetic Scroll Type | Power Supply: | 380V/3PH/50Hz |
| Dimensions(L*W*H) Mm: | 2300x2100x 2000 | Material: | Painted Galvanized Steel Sheet |
| High Light: | commercial rooftop air conditioner,roof mount air conditioner |
||

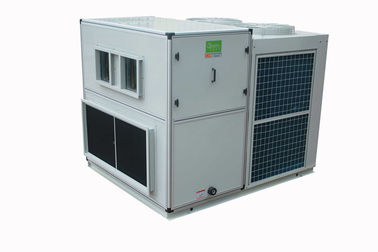

Packaged Rooftop Unit , Central Air Conditioner , Cooling Capacity 52 KW
Specifications:
|
Model |
|
WKL20 |
|
|
Cooling capcity |
kW |
52 |
|
|
Heating capacity |
kW |
56.8 |
|
|
Power supply |
|
380V/3PH/50Hz |
|
|
Refrigerant |
|
R22 |
|
|
Air Volume |
m3/h |
11000 |
|
|
External static pressure |
Pa |
300 |
|
|
Compressor |
Type |
|
Hermetic Scroll |
|
Power |
kW |
15.8 |
|
|
Quantity |
pcs |
2 |
|
|
Supply fan |
Type |
|
DIDW, centrifugal type |
|
Air volume |
m3/h |
10800 |
|
|
Motor power |
kW |
3 |
|
|
Drive method |
|
Belt drive |
|
|
Evaporator |
Type |
|
Copper tubes with aluminium fins |
|
Condenser |
Type |
|
Copper tubes with hydrophilic aluminium fins |
|
Condensing fan |
Fan type |
|
Low noise axial fan |
|
Motor power |
kW |
1.5 |
|
|
Drive method |
|
Direct drive |
|
|
Throttle method |
|
External balanced thermal expansion valve |
|
|
Electric controller |
|
LCD display screen, automatic microcomputer controller, failure alarm,balance operation time, Timer on/off,etc |
|
|
Net weight |
kg |
850 |
|
|
Dimensions(L*W*H) |
mm |
2300x2100x 2000 |
|
Description:
1. Flexible hermetic scroll compressor: Hitachi, Copeland, Sanyo brand,etc.
2. Independent refrigerant system: each compressor is equipped with an independent refrigerant circuit, easy for energy regulation, save energy and ensure running reliablity.
3. Heat Exchanger: copper tubes with aluminium fins, galvanized steel frame, stable and durable.
4. Supply fan: DIDW centrifugal fan, Chinese famous brand Deton, Yilida.
5. Low maintainance fees, package design, save installation space;
6. Microcomputer controller, simple interface, adjust temperature automatically, convenient for operation and easy for maintainance.
7. Galvanized steel sheet, outside powder coated, anti-corrosion and weather proof type condenser.
8. Canvas flexible duct connection, high static pressure, suitable for industrial factory.
9. Refrigerant: R22( R407C and R134a are optional).
10. Cooling capacity range: 13~130 kW
Applications:
|
Commercial buildings |
Supermarkets, large scale shopping malls, entertainment centers, high grade hotels, theaters,restaurants, hospitals, office buildings, etc. |
|
Industry factories |
Electronic factory,pharmaceutical factory, precision instrument factory, petrochemical factory,tobacco factory, cooling for production process, etc |
|
Public Places |
Airports, stations, exhibition halls, stadiums, museums, convention centers, apartments, church,etc |
