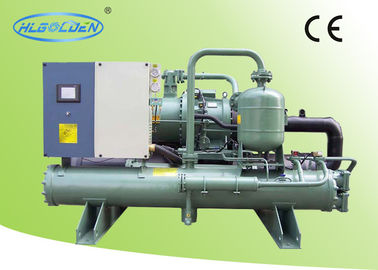

CE Certificated Recirculating Water Chiller / Industrial Water Chiller Units

Product Details:

Place of Origin:	DongGuan, GuangDong
Brand Name:	HIGOLDEN
Certification:	CE
Model Number:	HLWD135~870DM

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	500 units per month

Contact Now

Detailed Product Description

Application:	Cooling Or Heating	Cooling Capacity:	133KW~873KW
Refrigerant:	R22 ( Other Refrigerants Are Available )	Power Supply:	380V-50HZ-3PH
Condenser:	Shell And Tube Type	Heat Recover:	Optional
Certificate:	CE	Compressor:	Screw Type * 2
Cooling Type:	Water Cooled

CE Certificated Recirculating Water Chiller , Industrial Water Chiller Units

Application:

Hardware, vacuum coating, electroplating, Laser carving, plastic products, electronics, chemical industry, food preservation, vacuum coating, ultrasonic cleaning etc. industries.

Features:

Chilled water temperature range: -5°C ~ 5°C.
Equipped with Double compressors - more reliable, multistage control of capacity, reduce energy consumption.
Good quality and reliable compressor – ensure stable performance and long lifetime.
High efficient shell condensers and evaporators -- excellent cooling, quiet with low electric consumption.

Safety package - Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system.
Easy to operate - Equipped with Microprocessor and touch screen, temperature controls in °F or °C.
Full CE design compliance
Advanced design minimizes risk of leakage
Electronic leak detection on board

Components Introduction:

Compressor: COPELAND, HITACHI, DAIKIN, DANFOSS, HANBELL are available.
Electric component: SCHNEIDER
Condenser and evaporator: Shell-and-tube type.
Optional compoents: an integrated stainless steel tank, pump, and controls to fully meet the demands of your process.

Specification:

Model HLWD～		135DM	320DM	350DM	475DM	710DM	780DM	840DM	870DM
Model HLWD～		135DMR	320DMR	350DMR	475DMR	710DMR	780DMR	840DMR	870DMR
Rated Cooling Capacity	X1000 Kcal/h	114.7	272.5	299.1	407.4	610.0	667.8	723.2	751.0
	KW	133	317	348	474	709	777	841	873
	USRT	37.9	90.1	98.9	134.7	201.7	220.8	239.2	248.3
Input Power	KW	46.0	101.4	110.4	144.0	214.0	232.0	249.6	257.6
Comp.Input Power*Qty (kw)		23.0x2	50.7x2	55.2x2	72.0x2	107.0x2	116.0x2	124.8x2	128.8x2
Comp.Current (A)		77.2	170.4	185.6	242.0	360.0	390.0	419.8	433.2
Power Supply		3 ɸ-380V-50HZ
Protection Device		Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temperature protection, Low&High pressure protection, Low temp protection, Water flow protection.
Number of Refrigeration Circuit		2
Capacity Control (%)		0, 25,37.5,50,62.5,75,87.5,100
Refrigerant Charge (kg)		36	84	92	124	188	204	220	230
Condenser		Shell and Tube Type
Water Side Max Pressure (MPa)		1
Dia.of Pipe to Condenser (inch)		3"	4"	5"	5"	4" x 2	5" x 2	5" x 2	5" x 2
Cooling Water Flow (m³/h)		30.9	71.9	78.8	106.2	158.8	173.4	187.6	194.5
Condenser Water Pressure drop (kPa)		40	43	44	45	46	46	49	53
Evaporator		Shell and Tube Type
Water Side Max Pressure (MPa)		1
Dia.of Pipe to Evaporator (inch)		3"	5"	5"	5"	6"	6"	8"	8"
55% Glycol Flow Volume (m³/h)		24.9	59.3	65.0	88.6	132.7	145.2	157.3	163.3
Evaporator Water Pressure drop (kPa)		36	49	62	51	55	61	60	64
Running Noise dB(A)		75.0	75.0	75.0	75.0	75.0	75.0	75.0	75.0
Total weight (Kg)		1580	2520	2830	3480	4380	4620	5030	5570
Running Weight (Kg)		2010	3320	3740	4580	5600	5940	6380	6620

Heat Recovery:

Model HLWD～		135DMR	320DMR	350DMR	475DMR	710DMR	780DMR	840DMR	870DMR
Refrigerant charge(kg)		42	90	98	130	196	214	230	240
Heat Reclaimed Volume	X1000 Kcal/h	34.4	81.7	89.7	122.2	183.0	200.3	217.0	225.3
	KW	40	95	104	142	213	233	252	262
	USRT	11.4	27.0	29.7	40.4	60.5	66.2	71.7	74.5
Heat Recoverer		Shell and Tube Type
Water Side Max Pressure (MPa)		1
Dia of pipe to Heat Recoverer(inch)		2"	2-1/2"	2-1/2"	2-1/2"	3"	3"	3"	3"
Reclaimed Water Flow(m³/h)		6.9	16.3	17.9	24.4	36.6	40.1	43.4	45.1
Heat recovery Unit Water Pressure drop(kPa)		23	26	26	28	34	35	38	38
Total weight (Kg)		1730	2800	3130	3930	4570	5200	5690	6180
Running Weight (Kg)		2180	3610	3990	4980	5750	6520	6810	7070
