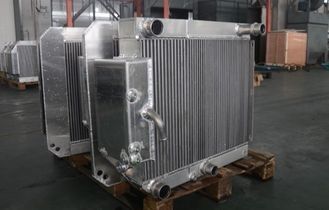

Vacuum Air Compressor Heat Exchanger

Vacuum Air Compressor Heat Exchanger

Vacuum Air Compressor Heat Exchanger

Product Details:

Place of Origin: China
Brand Name: Jinxi
Certification: ISO9001:2008
Model Number: Air Compressor-2609

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden/paper box
Delivery Time: 10-15 working days
Payment Terms: T/T ,Western union
Supply Ability: 130Tons/month
Contact Now
Detailed Product Description

Single Screw Compressor Heat Exchanger



Quick Detail:



Name Single scew compressor heat exchanger Brand Name Jinxi
Color Silver / black Feature Resistant to vibration,Good cooling efficiency
Technique Brazing / Welding Certificate ISO9001:2008





1. Specifications

  • Single screw compressor heat exchanger
  • Working pressure:2-40 bar
  • Working temp:-10-220 Deg C
  • Applications: Screw air Compressor, sliding vane compressor , scroll compressor ,Rolling piston compressor,compression engine
  • Structure: Plate-fin
  • Highly flexible complete,ready-to-use cooling packages
  • Compact and robust design
  • Largest and most comprehensive series of oil-air radiators.
  • OEM&ODM service provided



2. Description:

  1. Production:Single screw compressor
  2. Material: Aluminium
  3. Technique: Vacuum Brazing and argon welding
  4. Characteristic:it’s a construction machinery oil-air cooler,compact structure, easy installation.
  5. Process flows: Blanking ->Fin Punching- > Cleaning - > Core Assembly- >Vacuum Brazing ->Part Machining-> Welding->Pressure Test->Drying ->Overall Inspection -> Painting -> Packaging



FIN SPEC.
Fins Pitch(mm/FPI) G(mm) H(mm)
Louvered Fin 2.5~5mm/10~20FPI 0.1~0.17 6.5~18
Wavy Fin 2.5~8mm/6~20FPI 0.1~0.35 2.5~12
Flattop Fin 2.1~10mm/5~20FPI 0.1~0.2 2.5~12
Offset Fin1 4.5~8mm/6~16FPI 0.15~0.5 1~5
Offset Fin2 4~8mm/6~13FPI 0.12~0.2 5~18





Place of Origin: China
Brand Name: Jinxi
Certification: ISO9001:2008
Model Number: Air Compressor-2609





Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden/paper box
Delivery Time: 10-15 working days
Delivery Terms: FOB shanghai
Payment Terms: T/T ,Western union
Supply Ability: 130Tons/month





Choose Us; Do Not Hesitate:



1) Design term:We have professional design team.



2) Professional manufacturer: Our Jinxi company have been founded for many years.During the period,we are focused on producing various types of heat exchanger,and have a good selling in Europe,North America,Korea,Australia,Indonesia, Southeast and Asia.



3) Reasonable price: We do not believe in huge profit margin for long term business.Win-win is the survival.Our price is more competitive than others manufacturer.



4) Excellent quality:Our technicians have rich professional working experience,and design or produce what you want and our produces have passed ISO certification.



5) Rapid response to your needs:We will reply within 24 hours after receiving you letter.If you have urgent thing,welcome to call us.



6) The Most Efficient Service, Best Quality and Excellent Reputation

Vacuum Air Compressor Heat Exchanger



Vacuum Air Compressor Heat Exchanger

Vacuum Air Compressor Heat Exchanger
