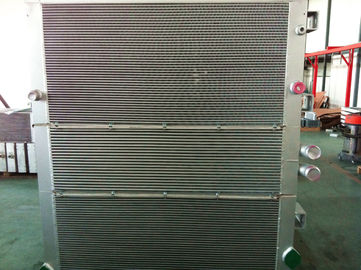

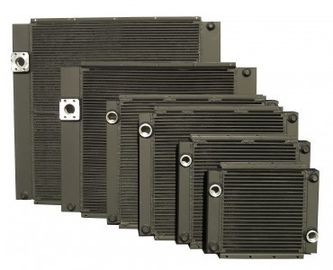

Aluminum Air Compressor Heat Exchanger / Combined Oil-Air Cooler / Vacuum Brazing

Aluminum Air Compressor Heat Exchanger / Combined Oil-Air Cooler / Vacuum Brazing

    • Aluminum Air Compressor Heat Exchanger / Combined Oil-Air Cooler / Vacuum Brazing
    • Aluminum Air Compressor Heat Exchanger / Combined Oil-Air Cooler / Vacuum Brazing
    • Aluminum Air Compressor Heat Exchanger / Combined Oil-Air Cooler / Vacuum Brazing
    • Aluminum Air Compressor Heat Exchanger / Combined Oil-Air Cooler / Vacuum Brazing
  • Aluminum Air Compressor Heat Exchanger / Combined Oil-Air Cooler / Vacuum Brazing

    Product Details:

    Place of Origin: China
    Brand Name: Jinxi
    Certification: ISO9001:2008
    Model Number: Oil-air compressor-002

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Wooden/paper box
    Delivery Time: 10-15 working days
    Payment Terms: T/T ,Western union
    Supply Ability: 130Tons/month
    Contact Now
    Detailed Product Description



    1. Aluminum Air Compressor Heat Exchanger / Combined Oil-Air Cooler / Vacuum Brazing





    Quick Detail:



    Name Plate-fin combined oil-air radiator Brand Name Jinxi
    Color Silver/,black Feature Resistant to vibration,Good cooling efficiency
    Technique Brazed/Welding Certificate ISO9001:2008





    2. Specifications

    • Aluminum combined oil-air cooler
    • Working pressure 2-40 bar
    • Working temp -10-220 Deg C
    • Applications Screw air Compressor,compact size and rugged construction
    • Structure Plate-fin
    • Highly flexible complete,ready-to-use cooling packages
    • Compact and robust design
    • Largest and most comprehensive series of oil-air radiators.
    • OEM&ODM service provided



    3. Description:

    1. Production:oil-air heat exchanger for compressor
    2. Material: Aluminium
    3. Technique: Vacuum Brazing and argon welding
    4. Characteristic:it’s a construction machinery oil-air cooler,compact structure, easy installation.
    5. Process flows: Blanking ->Fin Punching- > Cleaning - > Core Assembly- >Vacuum Brazing ->Part Machining-> Welding->Pressure Test->Drying ->Overall Inspection -> Painting -> Packaging



    FIN SPEC.
    Fins Pitch(mm/FPI) G(mm) H(mm)
    Louvered Fin 2.5~5mm/10~20FPI 0.1~0.17 6.5~18
    Wavy Fin 2.5~8mm/6~20FPI 0.1~0.35 2.5~12
    Flattop Fin 2.1~10mm/5~20FPI 0.1~0.2 2.5~12
    Offset Fin1 4.5~8mm/6~16FPI 0.15~0.5 1~5
    Offset Fin2 4~8mm/6~13FPI 0.12~0.2 5~18





    Place of Origin China
    Brand Name Jinxi
    Certification ISO9001:2008
    Model Number Oil-air compressor-002





    Minimum Order Quantity 1pcs
    Price Negotiable
    Packaging Details Wooden/paper box
    Delivery Time 10-15 working days
    Delivery Terms FOB shanghai
    Payment Terms T/T ,Western union
    Supply Ability 130Tons/month





    Choose Us; Do Not Hesitate:



    1) Design term:We have professional design team.

    2) Professional manufacturer: Our Jinxi company have been founded for many years.During the period,we are focused on producing various types of heat exchanger,and have a good selling in Europe,North America,Korea,Australia,Indonesia, Southeast and Asia.



    3) Reasonable price: We do not believe in huge profit margin for long term business.Win-win is the survival.Our price is more competitive than others manufacturer.



    4) Excellent quality:Our technicians have rich professional working experience,and design or produce what you want and our produces have passed ISO certification.





    5) Rapid response to your needs:We will reply within 24 hours after receiving you letter.If you have urgent thing,welcome to call us.



    6) The Most Efficient Service, Best Quality and Excellent Reputation



    Aluminum Air Compressor Heat Exchanger / Combined Oil-Air Cooler / Vacuum Brazing

    Aluminum Air Compressor Heat Exchanger / Combined Oil-Air Cooler / Vacuum Brazing

    Aluminum Air Compressor Heat Exchanger / Combined Oil-Air Cooler / Vacuum Brazing
