Air To Oil Plate And Fin Heat Exchanger , Brazed Plate Hydraulic Oil Cooler

Air To Oil Plate And Fin Heat Exchanger , Brazed Plate Hydraulic Oil Cooler

    • Air To Oil Plate And Fin Heat Exchanger , Brazed Plate Hydraulic Oil Cooler
    • Air To Oil Plate And Fin Heat Exchanger , Brazed Plate Hydraulic Oil Cooler
    • Air To Oil Plate And Fin Heat Exchanger , Brazed Plate Hydraulic Oil Cooler
    • Air To Oil Plate And Fin Heat Exchanger , Brazed Plate Hydraulic Oil Cooler
  • Air To Oil Plate And Fin Heat Exchanger , Brazed Plate Hydraulic Oil Cooler

    Product Details:

    Place of Origin: China
    Brand Name: Jinxi
    Certification: ISO:2008
    Model Number: Concrete mixer-001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Wooden/paper box
    Delivery Time: 10-15 working days
    Payment Terms: T/T ,Western union
    Supply Ability: 130Tons/month
    Contact Now
    Detailed Product Description





    Air-to-oil Plate And Fin Heat Exchanger , brazed plate hydraulic oil cooler

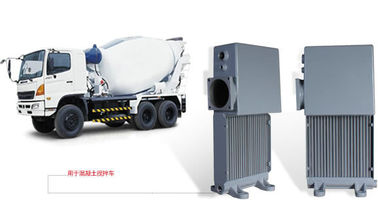

    Name Hydraulic air-to-oil oil coolers for concrete mixer Brand Name Jinxi
    Color Gray,black Feature Resistant to vibration,Good cooling efficiency
    Built in tank 15L,18L,26L Certificate ISO9001:2008
    Patent No. ZL 2013 2 0688313.1





    2. Specifications

    • Hydraulic brazed plate hydraulic oil cooler
    • Heavy-duty air-to-oil heat exchanger
    • OEM&ODM service provided



    Oil tank volume(L) 15L-26L
    Fan Diameter(mm) 280/305
    Fan motor Voltage(V) 24/12
    Fan speed (rmp) 2500
    Filter Oil Flow(L/min) 45
    Fan dia 280mm
    Working Temperature of thermal switch(*C) 50-55/60-65
    Working pressure 2 Bar
    Cooling power 6-12KV





    3. Description:

    1. Production: Concrete mixer oil cooler
    2. Material: Aluminium
    3. Inlet on the top of the tank
    4. Technique: Vacuum Brazing
    5. Structure: Bar and plate(plate-fin) heat exchanger
    6. Characteristic:it’s a construction machinery oil cooler,compact structure, easy installation.
    7. Process flows: Blanking ->Fin Punching- > Cleaning- > Core Assembly- >Vacuum Brazing ->Part Machining->Welding->Pressure Test->Drying ->Overall Inspection -> Painting -> Packaging



    Place of Origin: China
    Brand Name: Jinxi
    Certification: ISO9001:2008
    Model Number: Concrete mixer-001





    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Wooden/paper box
    Delivery Time: 10-15 working days
    Delivery Terms: FOB shanghai
    Payment Terms: T/T ,Western union
    Supply Ability: 130Tons/month





    We are a professional manufacturer and designer of bar and plate(plate-fin),including Air Dryer cooler,Compressor cooler, Intercooler, Radiator and Hydraulic oil cooler ect. There are widely used in compressors ,engineering machinery, chemical industry,automobiles,wind power equipment,new energy sources and other areas.

    We can design the heat exchangers according to your specific require. If you are interested in our product or have any question please feel free to contact with us any time.
