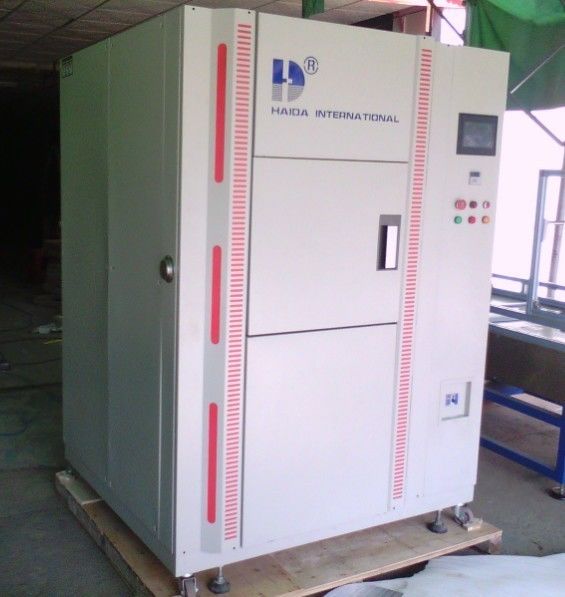

Water Cooling Multi Function Control Hot And Cold Impact Testing Machine HD-E703-50

Water Cooling Multi Function Control Hot And Cold Impact Testing Machine HD-E703-50

  • Water Cooling Multi Function Control Hot And Cold Impact Testing Machine HD-E703-50
  • Water Cooling Multi Function Control Hot And Cold Impact Testing Machine HD-E703-50
  • Water Cooling Multi Function Control Hot And Cold Impact Testing Machine HD-E703-50
  • Water Cooling Multi Function Control Hot And Cold Impact Testing Machine HD-E703-50
Water Cooling Multi Function Control Hot And Cold Impact Testing Machine HD-E703-50
Product Details:
Place of Origin: China
Brand Name: Haida
Certification: CE ISO
Model Number: HD-E703-50K65
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 1000-200000USD
Packaging Details: Export wooden case
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 300 set per month
Contact Now
Detailed Product Description
Power: Electronic Product Name: Environmental Testing Chambers
High Temperature Range: RT~170 ℃ Low Temperature Range: -75℃ ~RT
Type: Impact Testing Machine Model: HD-E703-50
High Light:

environmental testing chamber

,

humidity temperature test chamber

Water Cooling Multi Function Control Environmental Test Chamber




Product Description:
Multi function control hot and cold impact testing machine is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment , that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm. Application objects, including metal, plastic, rubber, electronics ... and other materials can be used as a basis to improve their products or reference.



Water Cooling Multi Function Control Hot And Cold Impact Testing Machine HD-E703-50 0



Specifications:
Thermal Shock Tester
1.High formula memory capacity
2.Color touch panel control system
3.Multiple safety protection device



Parameters:



Model HD-E703-50K40 HD-E703-50K65
Nominal content product(L) 50
Interior dimension(mm) 350×400×350(W×H×D)
Overall dimension(mm) 1230×1500×1830(W×H×D)
Temperature range

High temperature RT~170 ℃
Low temperature -75℃ ~RT
Test area -40℃ ~150℃ -65℃ ~150℃
Temperature shock range High temperature 60℃ ~150℃
Low temperature -10℃ ~-40℃ -10℃ ~-65℃
Normal temperature area Room temperature
Temperature and humidity deviation ±0.3℃,±2%R·H
Average difference in temperature and humidity ±2℃,±3%R·H
Heating rate 2℃/min
Cooling rate 0.5~1.2℃/min
Storage time RT→-75℃≤ 65min
Heat storage time RT→170℃≤ 35min
Refrigeration system Compressor Import of France taikang/Germany
Cooling way Water cooling or air cooling
Condenser Stainless steel brazed plate type heat exchanger
Heater/evaporator Nickel-chromium electric heater/finned evaporator
Microcomputer & display screen TT-5188T3-7HL Taitong controller
Circulation fan Axial flow fan
Safety measures No fuse switch, compressor overpressure, overheat, overcurrent protection, fuse, water flow protection, phase sequence protection, oil pressure protection, pressure relief protection, low pressure protection, pressure cylinder protection, temperature limit protection
Chassis shell Material High quality cold rolled steel sheet is sprayed with static electricity
Inner wall of the case Material SUS304# Stainless steel plate
Heat preservation material Polyurethane rigid foam + high density fiberglass cotton
Standard configuration Test hole, floodlight, double vacuum bulletproof glass observation window
Power supply three-phase,380V,50Hz




Water Cooling Multi Function Control Hot And Cold Impact Testing Machine HD-E703-50 1
