Vacuum Brazed Aluminum Plate And Fin Heat Exchanger With High Heat Transfer Efficiency

Vacuum Brazed Aluminum Plate And Fin Heat Exchanger With High Heat Transfer Efficiency

  • Vacuum Brazed Aluminum Plate And Fin Heat Exchanger With High Heat Transfer Efficiency
  • Vacuum Brazed Aluminum Plate And Fin Heat Exchanger With High Heat Transfer Efficiency
  • Vacuum Brazed Aluminum Plate And Fin Heat Exchanger With High Heat Transfer Efficiency
  • Vacuum Brazed Aluminum Plate And Fin Heat Exchanger With High Heat Transfer Efficiency
Vacuum Brazed Aluminum Plate And Fin Heat Exchanger With High Heat Transfer Efficiency
Product Details:
Place of Origin: China
Brand Name: Jinxi
Certification: ISO9001:2008
Model Number: Plate fin oil cooler -001
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden/paper box
Delivery Time: 10-15 working days
Payment Terms: T/T ,Western union
Supply Ability: 130Tons/month
Contact Now
Detailed Product Description
High Light:

compact heat exchangers

,

aluminum plate fin heat exchanger

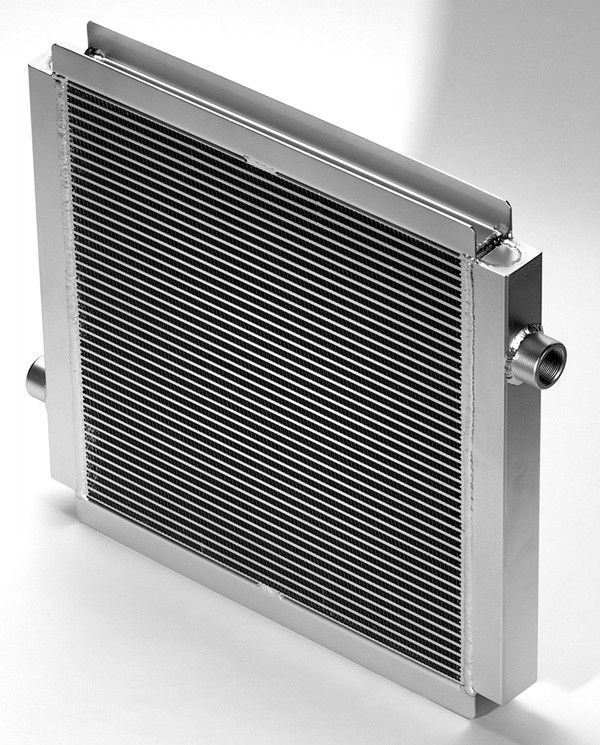

Vacuum Brazed Aluminum Plate And Fin Heat Exchanger With High Heat Transfer Efficiency





Quick Detail:



Name Plate fin oil cooler Brand Name Jinxi
Color Silver / black Feature Large heat transfer area,Good cooling efficiency
Technique Brazed / Welding Certificate ISO9001:2008





1. Specifications



  • Aluminum plate fin oil radiator
  • Core:bar and plate structure aluminum
  • Good heat transfer efficiency,good temperature control
  • Large heat transfer area
  • Able to withstand high pressure
  • High reliability and exchanging heat low noise
  • OEM&ODM service provided
  • Applications: Excavator, vibratile roller, paver, drill rig, crane ,loader



2. Description:

  1. Production: Aluminum vacuum brazing plate fin cooler for engineering machinery
  2. Material: Aluminium
  3. Technique: Vacuum Brazing
  4. Structure: Compact structure light
  5. Characteristic:it’s a construction machinery oil cooler,compact structure, easy installation.High heat transfer efficiency,heat transfer area,withstand high pressure.
  6. Process flows: Blanking ->Fin Punching- > Cleaning - > Core Assembly- >Vacuum Brazing ->Part Machining-> Welding->Pressure Test->Drying ->Overall Inspection -> Painting -> Packaging


3. A plate-fin heat exchanger is a type of heat exchanger design that uses plates and finned chambers to transfer heat between fluids. It is often categorized as a compact heat exchanger to emphasise its relatively high heat transfer surface area to volume ratio. The plate-fin heat exchanger is widely used in many industries, including the aerospace industry for its compact size and lightweight properties, as well as in cryogenics where its ability to facilitate heat transfer with small temperature differences is utilized.





FIN SPEC.
Fins Pitch(mm/FPI) G(mm) H(mm)
Louvered Fin 2.5~5mm/10~20FPI 0.1~0.17 6.5~18
Wavy Fin 2.5~8mm/6~20FPI 0.1~0.35 2.5~12
Flattop Fin 2.1~10mm/5~20FPI 0.1~0.2 2.5~12
Offset Fin1 4.5~8mm/6~16FPI 0.15~0.5 1~5
Offset Fin2 4~8mm/6~13FPI 0.12~0.2 5~18





Place of Origin: China
Brand Name: Jinxi
Certification: ISO9001:2008
Model Number:

Plate fin oil cooler -001





Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden/paper box
Delivery Time: 10-15 working days
Delivery Terms: FOB shanghai
Payment Terms: T/T ,Western union
Supply Ability: 130Tons/month







Choose Us; Do Not Hesitate:



1) Design term:We have professional design team.



2) Professional factory: We are manufacturer, specializing in manufacturing heat exchangers.



3) Sample:We can give out sample within 10 days,but the shipment charge usually paid by buyer.



4) Rapid response to your needs:We will reply within 24 hours after receiving you letter.If you have urgent thing,welcome to call us.



5) The Most Efficient Service, Best Quality and Excellent Reputation
