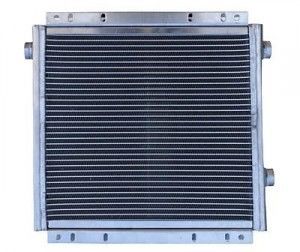

Vacuum Brazed Air Compressor Heat Exchanger Plate - Fin Aluminum Oil Radiator

Vacuum Brazed Air Compressor Heat Exchanger Plate - Fin Aluminum Oil Radiator

  • Vacuum Brazed Air Compressor Heat Exchanger Plate - Fin Aluminum Oil Radiator
  • Vacuum Brazed Air Compressor Heat Exchanger Plate - Fin Aluminum Oil Radiator
  • Vacuum Brazed Air Compressor Heat Exchanger Plate - Fin Aluminum Oil Radiator
  • Vacuum Brazed Air Compressor Heat Exchanger Plate - Fin Aluminum Oil Radiator
Vacuum Brazed Air Compressor Heat Exchanger Plate - Fin Aluminum Oil Radiator
Product Details:
Place of Origin: China
Brand Name: Jinxi
Certification: ISO9001:2008
Model Number: Air compressor-03
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden/paper box
Delivery Time: 10-15 working days
Payment Terms: T/T ,Western union
Supply Ability: 130Tons/month
Contact Now
Detailed Product Description
High Light:

Fully welded heat exchanger

,

air compressor cooler



Vacuum Brazed Air Compressor Heat Exchanger Plate - Fin Aluminum Oil Radiator





Quick Detail:



Name Hydraulic oil cooler for compressor Brand Name Jinxi
Color Silver / black Feature Energy-saving,good cooling efficiency
Technique Brazed/Welding Certificate ISO9001:2008





2. Specifications

  • Aluminum air compressor radiator
  • Working pressure 2-40 bar
  • Working temp -10-220 Deg C
  • Applications Screw air Compressor,compact size and rugged construction
  • Structure Plate-fin
  • Highly flexible complete,ready-to-use cooling packages
  • Compact and robust design
  • Largest and most comprehensive series of oil-air radiators.
  • OEM&ODM service provided



3. Description:

  1. Production: Vacuum brazed plate-fin heat exchanger for compressor
  2. Material: Aluminium
  3. Technique: Vacuum Brazing and argon welding
  4. Characteristic:it’s a construction machinery oil-air cooler,compact structure, easy installation.
  5. Process flows: Blanking ->Fin Punching- > Cleaning - > Core Assembly- >Vacuum Brazing ->Part Machining-> Welding->Pressure Test->Drying ->Overall Inspection -> Painting -> Packaging



FIN SPEC.
Fins Pitch(mm/FPI) G(mm) H(mm)
Louvered Fin 2.5~5mm/10~20FPI 0.1~0.17 6.5~18
Wavy Fin 2.5~8mm/6~20FPI 0.1~0.35 2.5~12
Flattop Fin 2.1~10mm/5~20FPI 0.1~0.2 2.5~12
Offset Fin1 4.5~8mm/6~16FPI 0.15~0.5 1~5
Offset Fin2 4~8mm/6~13FPI 0.12~0.2 5~18





Place of Origin China
Brand Name Jinxi
Certification ISO9001:2008
Model Number Air compressor-03





Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Wooden/paper box
Delivery Time 10-15 working days
Delivery Terms FOB shanghai
Payment Terms T/T ,Western union
Supply Ability 130Tons/month





Choose Us; Do Not Hesitate:



1) Design term:We have professional design team.



2) Professional manufacturer: Our Jinxi company have been founded for many years.During the period,we   are focused on producing various types of heat exchanger,and have a good selling in Europe,North America,Korea,Australia,Indonesia, Southeast and Asia.



3) Reasonable price: We do not believe in huge profit margin for long term business.Win-win is the survival.Our price is more competitive than others manufacturer.



4) Excellent quality:Our technicians have rich professional working experience,and design or produce what you want and our produces have passed ISO certification.





5) Rapid response to your needs:We will reply within 24 hours after receiving you letter.If you have urgent thing,welcome to call us.



6) The Most Efficient Service, Best Quality and Excellent Reputation





Vacuum Brazed Air Compressor Heat Exchanger Plate - Fin Aluminum Oil Radiator 0

Vacuum Brazed Air Compressor Heat Exchanger Plate - Fin Aluminum Oil Radiator 1
