Low temperature Water Cooling 200 Ton Chiller with Copeland Compressor

Low temperature Water Cooling 200 Ton Chiller with Copeland Compressor

  • Low temperature Water Cooling 200 Ton Chiller with Copeland Compressor
  • Low temperature Water Cooling 200 Ton Chiller with Copeland Compressor
  • Low temperature Water Cooling 200 Ton Chiller with Copeland Compressor
  • Low temperature Water Cooling 200 Ton Chiller with Copeland Compressor
Low temperature Water Cooling 200 Ton Chiller with Copeland Compressor
Product Details:
Place of Origin: DongGuan, GuangDong
Brand Name: HIGOLDEN
Certification: CE
Model Number: HLWW~610SI
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 35~45 days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 100 Units per Month
Contact Now
Detailed Product Description
Function: Industry Cooling Cooling Capacity: 606 KW
Input Power: 107.3 KW Compressor: 1 Pcs
Power Supply: 380~400V/3PH/50HZ Circuit Number: 1
Type: Water Cooled Chiller Noise: 75 Db(A)
Total Weight: 2380 KGS Refrigerant: R22, R407C, R134A Etc
High Light:

Water Cooler Chiller

,

Water To Water Chiller



200 Ton Low Temperature Chiller Water Cooling with Copeland Compressor



Product Description:



1. Water-cooling type.
2. With Copeland compressor.
3. Electricity-saving and endurance.
4. Certification: CE Certification.





Product Function:



1. The cooling capacity ranged from 120KW to 3827 KW.

2. Good quality screw type compressor of Hanbell.

3. The heat exchanger are with high efficient tube.

4. Danfoss/ Alco expansion valve, LG relay, other brands PUNP, Schneider.

5. Chiller have high COP, average COP is 4.5-5.5.

6. Stable quality, long using life, the chiller can operation more then 10 years.

7. Heat recovery can produce domestic 50~55°C hot water.

8. Strong frame ensured the equipment stable operation.





Payment terms:



1. 30%T/T in advance, 70% should be paid before shipment is our regular payment terms.

2. D/P, L/C is also acceptable for discussion.

3. Per your secial requests are also welcome for communicating.





Packing:



The standard packaging is wooden case, as per client requests.

The chiller could be packed in the container.





Product Detail:



Model  HLWW ~ 120SI 160SI 290SI 370SI 460SI 610SI
120SRI 160SRI 290SRI 370SRI 460SRI 610SRI
Rated Cooling Capacity   ×1000kcal/h 103.5 141.2 245.7 317.9 397.8 521.2
KW 120 164 286 370 463 606
USRT 34.2 46.7 81.3 105.1 131.5 172.3
Input Power KW 24.3 32 53.6 65.8 83.1 107.3
Comp. Input Power×Qty.  (KW) 24.3×1 32.0×1 53.6×1 65.8×1 83.1×1 107.3×1
Comp. Current (A) 40.9 53.8 90.1 110.6 139.7 180.3
Refrigerant R22
Power Supply 3φ-380V-50HZ
Safety Protection Phase reversion protection, Phase lack protection,
Overload current protection,Discharge air temp. protection,
Low & High pressure protection, Low temp. protection,
Water flow protection,
Number of Refrigeration Circuit 1
Capacity Control (%) 0, 66, 100 0, 50, 75, 100 0, 66, 100
Refrigerant Charge (Kg) 18 25 42 55 68 90
Condenser Shell and Tube Type
Water Side Max Pressure (MPa) 1
Dia. of Pipe to Condenser (inch) 2" 2-1/2" 3" 3" 4" 5"
Cooling Water Flow (m3/h) 24.9 33.7 58.4 74.9 93.8 122.7
 Condenser Water Pressure drop (kPa)  41 47 53 52 50 51
 Evaporator Shell and Tube Type
Water Side Max Pressure (MPa) 1
Dia.of Pipe to Evaporator (inch) 2" 2-1/2" 3" 3" 4" 4"
Chilled Water Flow (m3/h) 20.7 28.2 49.1 63.6 79.6 104.2
Evaporator Water Pressure drop (kPa) 22 28 35 55 66 43
Running Noise dB(A) 73.1 73.7 75.0 75.0 75.0 75.0
Total weight (Kg) 980 1010 1350 1680 1920 2380
Running Weight (Kg) 1080 1120 1530 1850 2080 2660

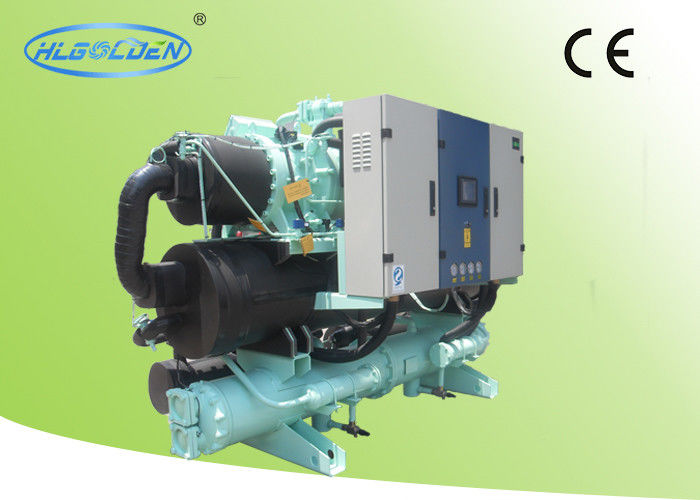

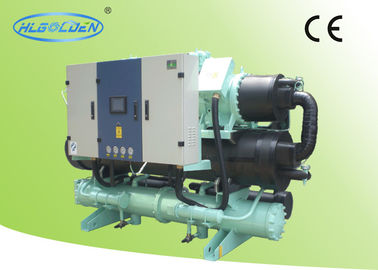

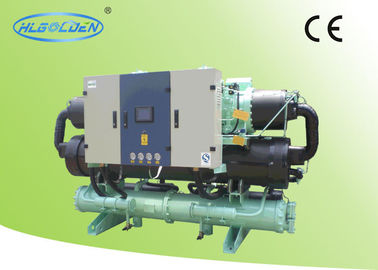

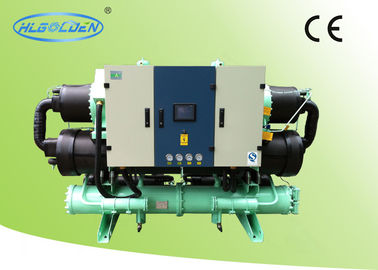

Product Show:



Low temperature Water Cooling 200 Ton Chiller with Copeland Compressor 0Low temperature Water Cooling 200 Ton Chiller with Copeland Compressor 1Low temperature Water Cooling 200 Ton Chiller with Copeland Compressor 2
