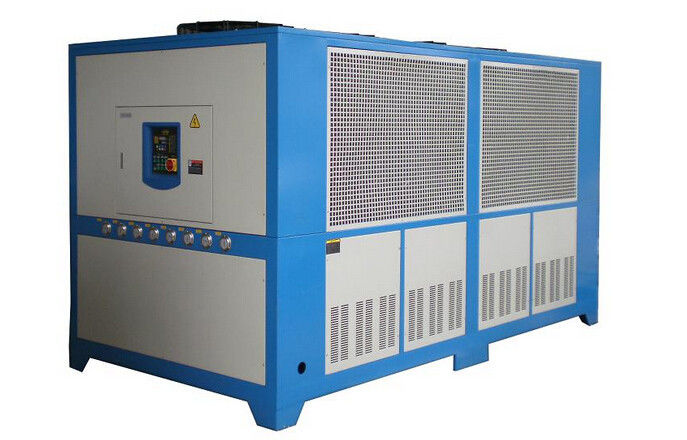

Low Noise Levels Air Cooled Chiller , Air Cooled Packaged Chiller 380V 3PH 50HZ

Low Noise Levels Air Cooled Chiller , Air Cooled Packaged Chiller 380V 3PH 50HZ

  • Low Noise Levels Air Cooled Chiller , Air Cooled Packaged Chiller 380V 3PH 50HZ
  • Low Noise Levels Air Cooled Chiller , Air Cooled Packaged Chiller 380V 3PH 50HZ
  • Low Noise Levels Air Cooled Chiller , Air Cooled Packaged Chiller 380V 3PH 50HZ
Low Noise Levels Air Cooled Chiller , Air Cooled Packaged Chiller 380V 3PH 50HZ
Product Details:
Place of Origin: ZHEJIANG,CHINA
Brand Name: KASSEL
Certification: CE,ISO
Model Number: KSFa
Payment & Shipping Terms:
Minimum Order Quantity: ONE
Price: N.A.
Packaging Details: Export Wooden Case
Delivery Time: N.A,
Payment Terms: T/T
Supply Ability: 15 SETS PER MONTH
Contact Now
Detailed Product Description
Brand: KASSEL
High Light:

Packaged Air Cooled Chillers

,

hvac chiller

Industry  Air Cooled Chiller / For Reaction Still , Electroplate , Chemical


Quick Detail:
Adopt the top-quality and up-to-date designed compressors, pumps and fans imported from Europe&USA, save electricity and durable in operation.
Equipped with entirely up-to-date designed radiator, excellent efficiency in heat exchanging


Description:
Stars air cooled chiller
air cooled chiller cooling capacity:20R--350RT,
R22,R407c,R134a is available,CE certified,COP 3.5
air cooled chiller equipped with Aluminum fins around copper pipes, Stars air cooled chillers can also be installed with heat pump if needed. The heat pump units can supply heat in the winter in addition to refrigeration function of the standard models. No cooling towers are applied
1. air cooled cooler cooling capacity scope: 37RT--236RT
2. Made of the advanced 5:6 screw high efficiency compressors and well-known electric components installed in our air chiller
3. The shell and tube evaporators of high quality and efficiency copper tube
4. Equipped with intelligent microprocessor touch-screen control system, offering signals such as pressure, temperature and current etc.
5. All air chiller feature high efficiency ,low noise, sufficient capacity, convenient of operation
6. Air chillers adopted the fin and pipe coil air cooled condensers, the units need no water cooling system, no cooling pump ,no cooling tower
7. In additional to refrigeration function of standard air chiller models ,all kinds of special chillers and heat pump units are also available to meet the individual requirement of the customer


Applications:
Blow molding
Die casting
Extrusion
Thermoforming
Vacuum forming
paper rolle


Specifications:


Model KSSF

-01

-02

-03

-05

-08

-10s

Cooling Capacity

10³Kcal/H

2.4

4.7

7.6

12

19

25.8

KW

2.75

5.5

8.85

14

22.1

30

Compressor

Power(Kw)

0.8

1.5

2.25

3.75

6.3

7.5

Quantity

1

1

1

1

1

2

Power

Kw

1.36

2.2

3

4.18

7.55

9.3

Evaporator

Form

Water Tank Plate Tube, High Efficiency Shell-And-Tube, Stainless Steel Plate

Water Flow(M³/H)

0.5

1

1.4

2.25

4

5

Interface Size

DN15

DN25

DN25

DN25

DN40

DN40

Condenser

Form

High Effective Red Copper Pipes Covered Into
 Aluminum Fins +Outer Low Noise Fan

Amount Of Cooling Air

1450

2900

3400

5800

9600

13000

Fan Power

0.08

0.16

0.18

0.32

0.5

0.9

Chilled Water Pump

Power(Kw)

0.25

0.25

0.37

0.55

0.75

0.75

Head(M)

22

28

28

28

28

28

Water Tank Volume

L

30

40

60

60

150

200

Dimension

L(Mm)

700

800

1050

1200

1600

1600

W(Mm)

550

660

620

660

860

860

H(Mm)

990

1300

1300

1300

1300

1500

Weight(Kg)

80

120

160

200

320

450

Safety Protection

Incomplete/Reverse Phase Warning, High & Low Voltage
Protection, Overload Current Protection, Water Shortage
Warning,Anti-Freezing Protection, Delay Protection

Refrigeration

R22 R407C R410C R404A R134A

Power Supply

380V-3PH-50HZ



Competitive Advantage:

High efficiency heat exchanger..
Ecological refrigeration units
famous brand compressors.
Reduce energy consumption.
Extremely low noise levels.
No need for specialized technicians.
Plastic water input/output couplings.
External installation.
