Injection / Molding / Plastic Industrial Water Chiller Water Cooled Screw Chiller

Injection / Molding / Plastic Industrial Water Chiller Water Cooled Screw Chiller

  • Injection / Molding / Plastic Industrial Water Chiller Water Cooled Screw Chiller
  • Injection / Molding / Plastic Industrial Water Chiller Water Cooled Screw Chiller
  • Injection / Molding / Plastic Industrial Water Chiller Water Cooled Screw Chiller
  • Injection / Molding / Plastic Industrial Water Chiller Water Cooled Screw Chiller
Injection / Molding / Plastic Industrial Water Chiller Water Cooled Screw Chiller
Product Details:
Place of Origin: DongGuan, GuangDong
Brand Name: HIGOLDEN
Certification: CE
Model Number: HLWW Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 45 days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 100 Units per Month
Contact Now
Detailed Product Description
Function: Industry Use Cooling Capacity: 120~3827KW
Input Power: 24.3~657.8 KW Compressor: 1~2 Pcs
Power Supply: 380~400V/3PH/50HZ Circuit Number: 1~2
Type: Water Cooled Chiller Noise: 75 Db(A)
Temp: 5 °C~20 °C. Refrigerant: R22, R407C, R410A Etc
High Light:

Water Cooler Chiller

,

Water To Water Chiller

Injection / Molding / Plastic Industrial Water Chiller , Water Cooled Screw Chiller




Production Description:



1. Working power supply: 380V/50Hz/3Ph.

2. Temperature control precision: ≤ ± 1 °C.

3. Temperature control range: 5 °C~20 °C.

4. Total power: 24.3~657.8KW.

5. Cooling capacity: 120~3827KW.

6. Refrigerant: R22 / R407C / R134A.



7. Working environment: temperature ≤ 36 °C.

8. Compressor quantity: 1~2 Pcs.

9. Protections: Phase reversion/ lack protection, Overload current protection, Discharge air temp.

protection, Low/High pressure protection, Low temp.  protection, Water flow protection.

10. Capacity control: 0, 25, 37.5, 50, 62.5, 75, 87.5, 100.



11. Condenser: Shell and tube type.

12. Chilled water flow: 20.7~658M3/H.

13. Numbers of refrigerant circuits: 1~2.

14. Semi- Hermetic screw compressor: High efficiency, energy-conserving and environment-protective .

15. High performance shell and tube evaporator, power saving

16. Industrial water cooled water chiller, It is very safe of using.

17. With heat recovery for domestic hot water. Heating capacity: 36~1148KW.





Product Application:



CNC wire cutting machine

High speed spindle

Laser cutting machine

PCB drilling machine

Electrode cooling of spot welder

Plastic injection molding machine

Printing machines

Semiconductor manufacturing equipment

Medical instrument

Other industrial machines





Product Terms:



MOQ

1pc

Price:

1~500000USD

Payment Terms:

T/T

Supply Ability:

100 pcs per month

Delivery Date:

45 working days

Packaging:

Packed wooden package





Product Detail:



Model  HLWW ~ 700SI 790SI 1210SI 1750SI
700SRI 790SRI 1210SRI 1750SRI
Rated Cooling Capacity   ×1000kcal/h 602.4 677.6 1042.7 1506.1
KW 701 788 1213 1752
USRT 199.2 224.1 344.8 498.0
Input Power KW 122.7 136.3 208.1 297.5
Comp. Input Power×Qty.  (KW) 122.7×1 136.3×1 208.1×1 297.5×1
Comp. Current (A) 206.3 229.2 349.8 500.1
Refrigerant R22
Power Supply 3φ-380V-50HZ
Safety Protection Phase reversion protection, Phase lack protection,
Overload current protection, Discharge air temp. protection,
Low & High pressure protection, Low temp. protection,
Water flow protection,
Number of Refrigeration Circuit 1
Capacity Control (%) 0, 50, 75, 100
Refrigerant Charge (Kg) 102 115 177 256
Condenser Shell and Tube Type

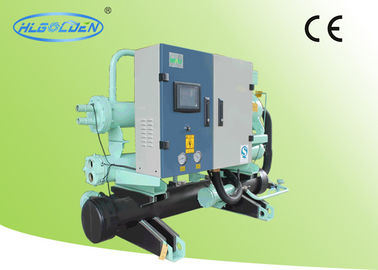

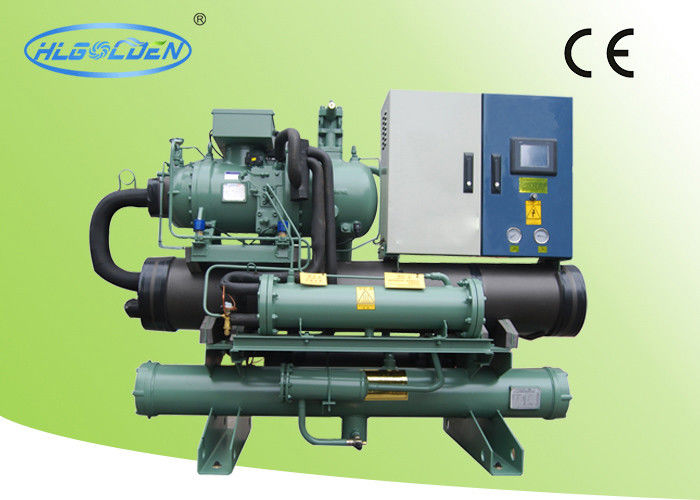

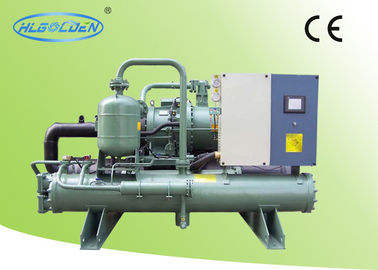

Product Show:



Injection / Molding / Plastic Industrial Water Chiller Water Cooled Screw Chiller 0Injection / Molding / Plastic Industrial Water Chiller Water Cooled Screw Chiller 1Injection / Molding / Plastic Industrial Water Chiller Water Cooled Screw Chiller 2
