Industrial Sliding Vane Compressor Radiator Plate Fin Heat Exchanger

Industrial Sliding Vane Compressor Radiator Plate Fin Heat Exchanger

  • Industrial Sliding Vane Compressor Radiator Plate Fin Heat Exchanger
  • Industrial Sliding Vane Compressor Radiator Plate Fin Heat Exchanger
  • Industrial Sliding Vane Compressor Radiator Plate Fin Heat Exchanger
  • Industrial Sliding Vane Compressor Radiator Plate Fin Heat Exchanger

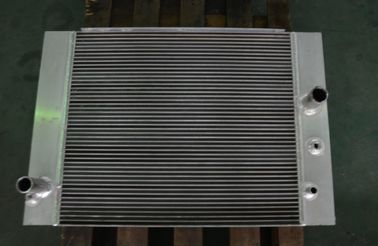

Industrial Sliding Vane Compressor Radiator Plate Fin Heat Exchanger
Product Details:
Place of Origin: China
Brand Name: Jinxi
Certification: ISO9001:2008
Model Number: Air Compressor-2606
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden/paper box
Delivery Time: 10-15 working days
Payment Terms: T/T ,Western union
Supply Ability: 130Tons/month
Contact Now
Detailed Product Description
High Light:

Fully welded heat exchanger

,

air compressor cooler

Aluminum Plate Fin Heat Exchanger For Sliding Vane Compressor



Quick Detail:



Name Sliding vane compressor radiator Brand Name Jinxi
Color Silver / black Feature Resistant to vibration,Good cooling efficiency
Technique Brazing / Welding Certificate ISO9001:2008





1. Specifications

  • Aluminum sliding vane heat exchanger
  • Applications:  slidingwane compressor
  • Highly flexible complete,ready-to-use cooling packages
  • Compact and robust design
  • Largest and most comprehensive series of oil-air radiators.
  • Working pressure:2-40 bar
  • Working temp:-10-220 Deg C

2. Description:

  1. Production:Industrial Sliding Vane Compressor Radiator Plate Fin Heat Exchanger
  2. Technique: Vacuum Brazing and argon welding
  3. Characteristic: compact structure, easy installation.
  4. Process flows: Blanking ->Fin Punching- > Cleaning - > Core Assembly- >Vacuum Brazing ->Part Machining-> Welding->Pressure Test->Drying ->Overall Inspection -> Painting -> Packaging
  5. OEM&ODM service provided



FIN SPEC.
Fins Pitch(mm/FPI) G(mm) H(mm)
Louvered Fin 2.5~5mm/10~20FPI 0.1~0.17 6.5~18
Wavy Fin 2.5~8mm/6~20FPI 0.1~0.35 2.5~12
Flattop Fin 2.1~10mm/5~20FPI 0.1~0.2 2.5~12
Offset Fin1 4.5~8mm/6~16FPI 0.15~0.5 1~5
Offset Fin2 4~8mm/6~13FPI 0.12~0.2 5~18





Place of Origin: China
Brand Name: Jinxi
Certification: ISO9001:2008
Model Number: Air Compressor-2606





Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden/paper box
Delivery Time: 10-15 working days
Delivery Terms: FOB shanghai
Payment Terms: T/T ,Western union
Supply Ability: 130Tons/month





Choose Us; Do Not Hesitate:



1) Design and research group, drawing creating team.



2) Professional manufacturer: Our Jinxi company have been founded for many years.During the period,we are focused on producing various types of heat exchanger,and have a good selling in Europe,North America,Korea,Australia,Indonesia, Southeast and Asia.



3) Reasonable price: We do not believe in huge profit margin for long term business.Win-win is the survival.Our price is more competitive than others manufacturer.



4) Excellent quality:Our technicians have rich professional working experience,and design or produce what you want and our produces have passed ISO certification.



5) Rapid response to your needs:We will reply within 24 hours after receiving you letter.If you have urgent thing,welcome to call us.



6) The Most Efficient Service, Best Quality and Excellent Reputation

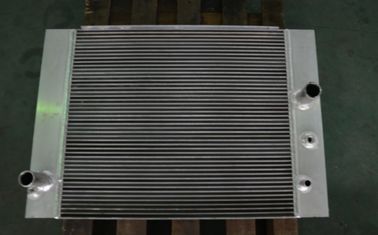

Industrial Sliding Vane Compressor Radiator Plate Fin Heat Exchanger 0

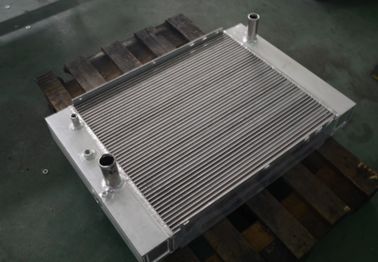

Industrial Sliding Vane Compressor Radiator Plate Fin Heat Exchanger 1

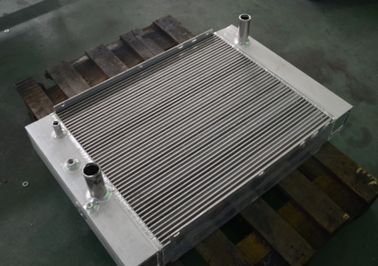

Industrial Sliding Vane Compressor Radiator Plate Fin Heat Exchanger 2
