Detailed Product Description
High Light:

compact heat exchangers

,

aluminum plate fin heat exchanger

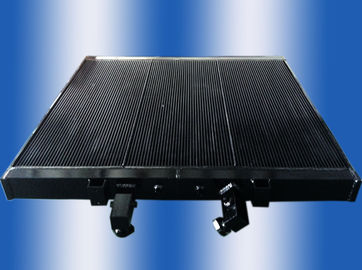

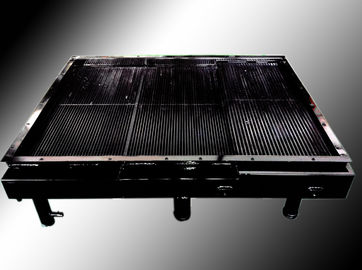

High Cooling compact heat exchangers , aluminum plate fin heat exchanger





Quick Detail:



Name Plate fin heat exchanger Brand Name Jinxi
Color Silver / black Feature Large heat transfer area,Good cooling efficiency
Technique Brazing / Welding Certificate ISO9001:2008





1. Specifications

  • Core:bar and plate structure aluminum
  • Fin:LF02, RW10
  • Size: 1024*1036*240mm
  • Short Bar:9.5*8
  • Working pressure(bar):water 1bar/oil 10bar/ CAC 3bar



2. Description:

  1. Production:Oil cooling system / aluminum heat exchanger for engineery machine
  2. Material: Aluminium
  3. Technique: Vacuum Brazing
  4. Structure: Compact structure light
  5. Characteristic:it’s a construction machinery oil cooler,compact structure, easy installation.High heat transfer efficiency,heat transfer area,withstand high pressure.
  6. Process flows: Blanking ->Fin Punching- > Cleaning - > Core Assembly- >Vacuum Brazing ->Part Machining-> Welding->Pressure Test->Drying ->Overall Inspection -> Painting -> Packaging

3. A plate-fin heat exchanger is a type of heat exchanger design that uses plates and finned chambers to transfer heat between fluids. It is often categorized as a compact heat exchanger to emphasise its relatively high heat transfer surface area to volume ratio.



FIN SPEC.
Fins Pitch(mm/FPI) G(mm) H(mm)
Louvered Fin 2.5~5mm/10~20FPI 0.1~0.17 6.5~18
Wavy Fin 2.5~8mm/6~20FPI 0.1~0.35 2.5~12
Flattop Fin 2.1~10mm/5~20FPI 0.1~0.2 2.5~12
Offset Fin1 4.5~8mm/6~16FPI 0.15~0.5 1~5
Offset Fin2 4~8mm/6~13FPI 0.12~0.2 5~18





Place of Origin: China
Brand Name: Jinxi
Certification: ISO9001:2008
Model Number:

Cooling system-015





Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden/paper box
Delivery Time: 10-15 working days
Delivery Terms: FOB shanghai
Payment Terms: T/T ,Western union
Supply Ability: 130Tons/month







Choose Us; Do Not Hesitate:



1) Design term:We have professional design team.



2) Professional factory: We are manufacturer, specializing in manufacturing heat exchangers.



3) Sample:We can give out sample within 10 days,but the shipment charge usually paid by buyer.



4) Rapid response to your needs:We will reply within 24 hours after receiving you letter.If you have urgent thing,welcome to call us.



5) The Most Efficient Service, Best Quality and Excellent Reputation
