Customized Plate And Fin Heat Exchanger Cooling System With Fan

Customized Plate And Fin Heat Exchanger Cooling System With Fan

  • Customized Plate And Fin Heat Exchanger Cooling System With Fan
  • Customized Plate And Fin Heat Exchanger Cooling System With Fan
  • Customized Plate And Fin Heat Exchanger Cooling System With Fan
  • Customized Plate And Fin Heat Exchanger Cooling System With Fan
Customized Plate And Fin Heat Exchanger Cooling System With Fan
Product Details:
Place of Origin: China
Brand Name: Jinxi
Certification: ISO9001:2008
Model Number: Concrete oil mixer-002
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden/paper box
Delivery Time: 10-15 working days
Payment Terms: T/T ,Western union
Supply Ability: 130Tons/month
Contact Now
Detailed Product Description
High Light:

Plate Fin Heat Exchangers

,

aluminum plate fin heat exchanger



Customized Made Plate Fin Heat Exchanger Cooling System With Fan For Concrete Mixers





Name Concrete mixer oil radiator Brand Name Jinxi
Color Gray,black Feature Resistant to vibration,Good cooling efficiency
Built in tank 12L ,15L,18L,25L,32L Certificate ISO9001:2008
Patent No. ZL 2013 2 0688313.1





2. Specifications

  • Engineering Machine oil heater
  • Heavy-duty air-to-oil heat exchanger
  • Cooling by fan
  • OEM&ODM service provided



Oil tank volume(L) 12L-32L
Fan Diameter(mm) 280/305
Fan motor Voltage(V) 24/12
Fan speed (rmp) 2500
Filter Oil Flow(L/min) 45
Fan dia 280mm
Working Temperature of thermal switch(*C) 50-55/60-65
Working pressure 2 Bar
Cooling power 6-12KV





3. Description:

  1. Production:Plate fin Concrete mixer oil cooler
  2. Material: Aluminium
  3. Inlet on the top of the tank
  4. Technique: Vacuum Brazing
  5. Structure: Bar and plate(plate-fin) heat exchanger
  6. Characteristic:it’s a construction machinery oil cooler,compact structure, easy installation.
  7. Process flows: Blanking ->Fin Punching- > Cleaning- > Core Assembly- >Vacuum Brazing ->Part Machining->Welding->Pressure Test->Drying ->Overall Inspection -> Painting -> Packaging



Place of Origin: China
Brand Name: Jinxi
Certification: ISO9001:2008
Model Number: Concrete oil mixer-002





Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden/paper box
Delivery Time: 10-15 working days
Delivery Terms: FOB shanghai
Payment Terms: T/T ,Western union
Supply Ability: 130Tons/month





We are a professional manufacturer and designer of bar and plate(plate-fin),including Air Dryer cooler,Compressor cooler, Intercooler, Radiator and Hydraulic oil cooler ect. There are widely used in compressors ,engineering machinery, chemical industry,automobiles,wind power equipment,new energy sources and other areas.



We can design the heat exchangers according to your specific require. If you are interested in our product or have any question please feel free to contact with us any time.

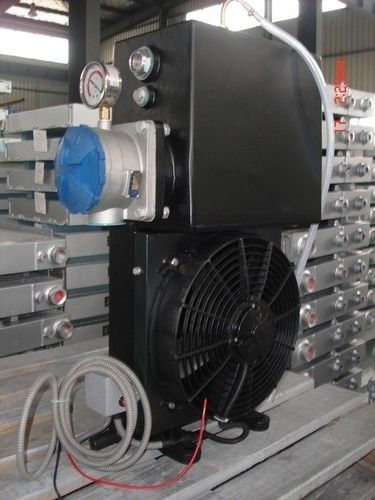

Customized Plate And Fin Heat Exchanger Cooling System With Fan 0

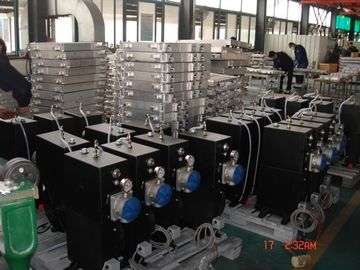

Customized Plate And Fin Heat Exchanger Cooling System With Fan 1

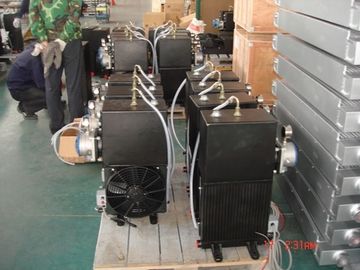

Customized Plate And Fin Heat Exchanger Cooling System With Fan 2
