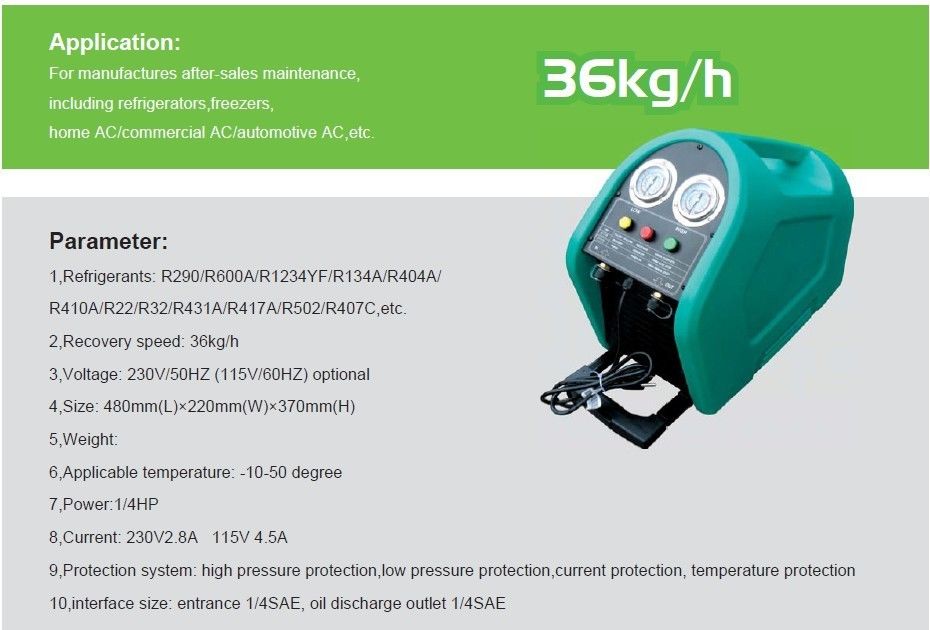

portable refrigerant machie(R600A)

Features:
1,Apply to recover HC/HFC/HCFC/CFC kinds of refrigerants.
2,High safety performance,including high pressure protection,low pressure protection and current protection.
3,Unique tie rod design and slinky shape make it very convenient to carry outside.
4,There is twin-stage oil seperator inside so it can seperate the oil in the process of refrigerant recovery.
5,Inlet has filter screen which can clear system impurity conveniently.
6,Control valve design in inlet so that the recovery machine can efficiently and steadily work for a long time.
7,It includes push/pull,liquid/vapour recovery mode and self-cleaning function.

Parameter:
1,Refrigerants: R290/R600A/R1234YF/R134A/R404A/
R410A/R22/R32/R431A/R417A/R502/R407C,etc.
2,Recovery speed: 36kg/h
3,Voltage: 230V/50HZ (115V/60HZ) optional
4,Size: 480mm(L)220mm(W)370mm(H)
5,Net Weight: 20.8kg
6,Applicable temperature: -10-50 degree
7,Power:1/4HP
8,Current: 230V2.8A 115V 4.5A
9,Protection system: high pressure protection,low pressure protection,current protection, temperature protection
10,interface size: entrance 1/4SAE, oil discharge outlet 1/4SAE

Apply to recover HC/HFC/HCFC/CFC kinds of refrigerants.
Application:
For manufactures after-sales maintenance,
including refrigerators,
freezers,home AC/commercial AC/automotive AC,etc.
36kg/h
High safety performance,
including high pressure protection,
low pressure protection and current protection.
ChunMu Refrigeration
Nanjing Wonfulay Precision Machinery Co., Ltd
Model: CM-EP
