Place of Origin: | DongGuan, GuangDong |
Brand Name: | HIGOLDEN |
Certification: | CE |
Model Number: | HLWW-090SR |
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Case |
Delivery Time: | 10 -35working days after received your payment |
Payment Terms: | T/T, Western Union, L/C, MoneyGram |
Application: | Indoor | Power Supply: | 380v-50hz |
---|---|---|---|
Cooling Capacity: | 92kw | Refrigerant: | R22 |
Condenser: | Shell And Tube | Type: | Free Standing |
High Light: | Screw Water Chiller,Screw Compressor Chiller |

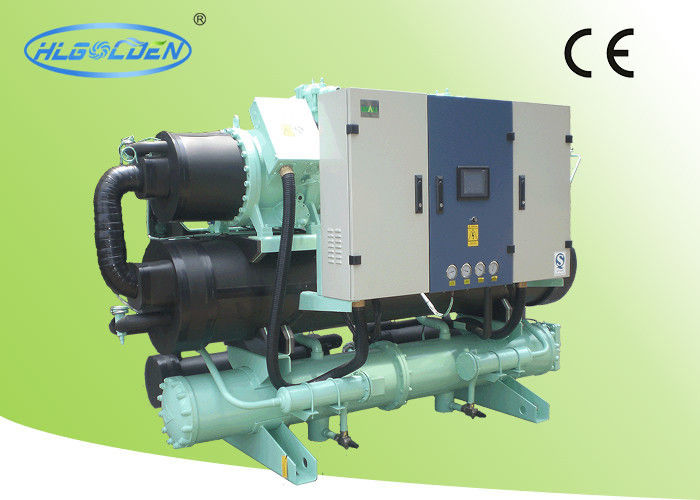

28kw Heat Recovery Water Cooled Screw Chiller Shell And Tube Type
Description
1. This type of chillers are made of superior compressor, so it is exllcellent in quality, noiseless,
economical and durable.
2. The evaportors are shell and tube types, which are of excellent performace.
3. The cooling capacity is 92kw(789000kcal/h)
4. 28KW heat reclaimed volume
Competitive Advantage
· Power source phase deficient protection;
· Circuit breaker;
· Compressor over load protecting and indicating lamp;
Specifications
Model HLWW~ |
090S |
||
090SR |
|||
Rated Cooling Capacity |
×1000Kcal/h |
78.9 |
|
KW |
92 |
||
USRT |
26.1 |
||
lnput power |
KW |
22.1 |
|
Comp. Current (A) |
39.2 |
||
Refrigerant Charge (kg) |
17 |
||
Dia. of Pipe to Condenser (inch) |
2" |
||
Cooling Water Flow (m3/h) |
19.6 |
||
Condenser Water Pressure drop (kPa) |
41 |
||
Dia.of Pipe to Evaporator (inch) |
2" |
||
Chilled Water Flow (m3/h) |
15.8 |
||
Evaporator Water Pressure drop (kPa) |
22 |
||
Running Noise dB(A) |
73.1 |
||
Total weight (kg) |
880 |
||
Running Weight(kg) |
970 |
||
|
|
|
|
Heat Recovery Parameter |
|||
Refrigerant Charge (Kg) |
20 |
||
Heat Reclaimed Volume |
×1000kcal/h |
23.7 |
|
KW |
28 |
||
USRT |
7.8 |
||
Dia. of Pipe to Heat Recover (inch) |
1" |
||
Water Side Max Pressure (MPa) |
1 |
||
Reclaimed Water Flow (m3/h) |
4.7 |
||
Heat recovery unit water pressure Drop (kPa) |
21 |
||
Total Weight (kg) |
930 |
||
Running Weight (kg) |
1020 |
||
Dimension L×W×H (mm) |
HLWW~ S |
2200×800×1500 |
|
Dimension L×W×H (mm) |
HLWW~ SR |
2400×950×1400 |
Description
1. This type of chillers are made of superior compressor, so it is exllcellent in quality, noiseless,
economical and durable.
2. The evaportors are shell and tube types, which are of excellent performace.
3. The cooling capacity covers a range of 120-2002KW
4.It is compact-sized, with sufficent cooling capacity, and easy to clean.
5.Water cooled Water chiller can be used in various feilds,such as chemical industry, medical industry
industrial processing, food processing industry,etc.
6. All round safety protection: phase reversion protection, phase lack protection, overload current
protection, discharge sir temp. protection, low&high pressure protection , low temp. protection, water
flow protection.
7.Refrigerant is R407C,R22,but R410A,R134A also available.
8. Rated cooling capacity base: chilled water inlet/outlet temp.17 °C /12V cooling water inlet/outlet
temp. 30°C / 35°C, fouling factor:0.088m2/KW.
9. Chilled water range: 5°C to 20°C Cooling water range: 20°C to 40°C;
Applications
1, Injection Industry
Golden chiller can accurately control the temperature of mold which can improve the quality and produ
-ction rate.
2, Electronic Component Industry
Golden chiller can stabilize the molecular structure of electronic component inside. This can improve
the FTQ and product time.
3, Machinery Industry
Golden chiller can cool down the oil for the machine and stabilize the oil temperature and pressure. It’ll
extend the useful life of oil. And it can also improve mechanical lubrication efficiency
4, Electroplating Industry
The temperature of electroplate can be controlled by our chiller. It can improve the density and smooth
of electroplate and production efficiency.
5, Food & Drink Processing Industry
The temperature of processed food and drink will be too high to be packaged. Golden chiller can cool it
down through food grade stainless steel heat exchanger.
6, Air conditioner system
Widely used in building air conditioning system, small and medium sized office, workshop, restaurants,
villas and other air conditioning environment
Competitive Advantage
· Power source phase deficient protection;
· Circuit breaker;
· Compressor over load protecting and indicating lamp;
· Pump reversal protecting and indicating lamp;
· Pump over load protecting and indicating lamp;
· Cooling water bad heat loose protecting and indicating lamp;
