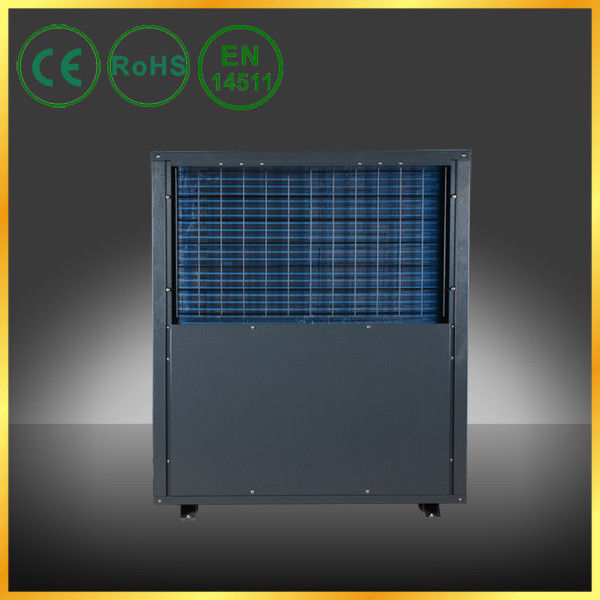

Low Temperature Air Source Heat Pump For Heat Exchanger Hot Water System

Product Details:

Place of Origin:	China
Brand Name:	Power World
Certification:	CE, ROHS, EN14511
Model Number:	MG-030A-KFXRS

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	negotiation
Packaging Details:	Plywood packing
Delivery Time:	15-20 working days after received payment
Payment Terms:	Western Union, L/C, D/A, T/T, D/P, MoneyGram
Supply Ability:	9,000pcs per month

Contact Now

Detailed Product Description

Working Ambient Temperature (℃):	-25 To 43	Color:	Gray,white,gold
Unit Size:	8304901160	Packaging:	Plywood CTN
Heating Capacity/Power Consumption (kw):	10.8	COP:	3.84
Refrigerant Oil:	R407C	Power Supply:	(220~240)V/50Hz
Highest/Rate Water Temperature (℃):	60/55	Thermostatic Expansion Valve:	Danfoss
High Light:	heat pumps for hot water heating systems , heat exchanger Heat Pump

Better COP 10.8KW EVI Pump Heater For Snowy Area Hot Water with Galvanised Case, Quiet Compressor, Green Refrigerant Oil

Specifications of Power World 10.8KW EVI Pump Heater For Snowy Area Hot Water:

Model No.		#MG-030A-KFLW	#MG-030B-KFLW	#MG-050-KFLW	#MG-100 -KFLW	#MG-200 -KFLW
20℃	Heating Capacity(KW)	10.8	11.8	20.6	40.6	81.2
	Heating Input Power(KW)	2.81	3.1	5.4	10.7	21.4
	Rated Current(A)	12.4	6.2	9	17.6	35.2
	COP(Coefficient of Performance)	3.84	3.81	3.81	3.79	3.79
	Water Capacity(L/H)	232	254	443	873	1745
-10℃	Heating Capacity(KW)	6.3	7	12.6	24.4	48.8
	Heating Input Power(KW)	2.58	2.9	5.1	9.9	19.8
	COP	2.44	2.41	2.47	2.46	2.46
	Water Capacity(L/H)	135	150	271	524	1049
-20℃	Heating Capacity(KW)	4.9	5.4	10.3	19.6	39.2
	Heating Input Power(KW)	2.45	2.68	5.05	9.8	19.6
	COP	2.00	2.01	2.04	2.00	2.00
	Water Capacity(L/H)	105	116	221	421	843
Voltage		220V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Advised Cable		3*2.5mm²	32.5mm²+ 21.5mm²	34mm²+ 22.5mm²	36mm²+ 22.5mm²	310mm²+ 24mm²
IP Grade(Level of protection)		IPX4	IPX4	IPX4	IPX4	IPX4
Electric Shock Proof Grade		I	I	I	I	I
Working Condition (℃)		-25 to 43	-25 to 43	-25 to 43	-25 to 43	-25 to 43
Rated Water Temp. Output(℃)		55	55	55	55	55
Max Water Temp. Output(℃)		60	60	60	60	60
Pipe Size(mm)		DN25	DN25	DN25	DN32	DN65
Compressor		Copeland	Copeland	Copeland	Copeland	Copeland
EVI Exchanger		Plate-type Heat Exchanger	Plate-type Heat Exchanger	Plate-type Heat Exchanger	Plate-type Heat Exchanger	Plate-type Heat Exchanger
Thermostatic Expansion Valve		Danfoss	Danfoss	Danfoss	Danfoss	Danfoss
Air Flow		Side Fan	Side Fan	Side Fans	Top Fans	Top Fans
Refrigerator		R407C	R407C	R407C	R407C	R407C
Noise (dB(A))		≤55	≤55	≤58	≤66	≤66
Net Size(WDH)mm		8304901160	8304901160	11104901260	15808001600	200011002080
N.W./G.W.(KG)		100/106	100/106	145/155	298/313	585/645
Payment: 50% T/T in advance + 50% balance before shipment.(100% T/T for Sample/Try Order)
After-sales Service & Quality warranty: 7 years for compressor, 1 years for whole unit.
Sampletime: 7-45 days.
Leadtime: 30 days after deposited & sample approval.
Remarks: Offer 1% spare parts for container order only and this offer is valid within 30 days.

Description of Power World 10.8KW EVI Pump Heater For Snowy Area Hot Water:

1. Environmental friendly and safe
Electric parts and water system is completely cut off, ensuring security water use, no pollution to the atmosphere and free of greenhouse effect and it is the safest water heater
2. Wide climatic zone adaptability
Our heat pumps with special designing possess better climatic adaptability, can work from -25degrees to 43degrees.
3. Energy-saving
Heat pump water heater is a high efficient transferring heating equipment which is driven by electricity. The operating cost is only 1/4 of electric water heater, 1/3 of gas water heater.
4. Automatic intelligent control system
Adopting intelligent computerized automatic control system, no manual cost, easy to operate, convenient, make heat pump work safely and reliably.
Control panel with modularized unit design can control more flexible heat pumps packs, with user-friendly operating system interface, easy to operate..
5. Advanced testing methods
Adopting world-class Enthalpy potential laboratory to test heat pumps, except basic testing items, we also test heat pump in the ambient of temperature of -30degrees to test our heat pump performance.
6. Widely used
Heat pump is applied to hot water for household and commercial use like families, schools, hospitals, shower center, swimming pools, etc. and industrial use like electroplating, drying, etc.

Applications of Power World 10.8KW EVI Pump Heater For Snowy Area Hot Water:

Business Organizations	supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations	Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places	subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
Entertainments	Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course

Competitive Advantage of Power World 10.8KW EVI Pump Heater For Snowy Area Hot Water:

1) EVI compressor special designed for high COP (Coefficient of Performance): 4.0 even in bad weather condiction or area.
2) Base frame and externel panels made of galvanized powder coated steel
3) Water exchanger equipped with high efficiency tube in shell heat exchanger
4) Reliable compressor with R407C refrigerant
5) Stable water flow switch & backflow proof.
6) Fully sealed control box with water proof level IPX4
7) Intelligent microprocessor double control systems with Motorola IC, auto memory & nighlight.
8) Air exchanger (fin-coil) with hydrophilic coating
9) Thermostatic heating element for evaporator, anti-frosting every 30 minutes per day.
10) EVERY capillary tube of DANFOSS/EMERSON expansion valve full-covered by silicon/soft pipe refucing buffer friction, subtle vibraction from compressor/fan, keeping strong as 10-year working life,even longer.
11) No need of auxiliary electrical heating and works well even at -30 ℃.
12) Lowest noise that 6T fan motor & Mitsubishu/Copeland high efficient compressor, thermostability PE material with bond for soundproof & heat preservation.
