Liquid Bottle Filling Machine Line with Oral Liquid Bottle Ultrasonic Washing

Liquid Bottle Filling Machine Line with Oral Liquid Bottle Ultrasonic Washing

  • Liquid Bottle Filling Machine Line with Oral Liquid Bottle Ultrasonic Washing
  • Liquid Bottle Filling Machine Line with Oral Liquid Bottle Ultrasonic Washing
  • Liquid Bottle Filling Machine Line with Oral Liquid Bottle Ultrasonic Washing
Liquid Bottle Filling Machine Line with Oral Liquid Bottle Ultrasonic Washing
Product Details:
Place of Origin: China
Brand Name: LTPM China
Certification: SGS, CE
Model Number: LTKGX
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negociation
Packaging Details: Export Standard Wooden Box
Delivery Time: 25days
Payment Terms: T/T, L/C, D/P, Cash, Paypal
Supply Ability: 15sets/month
Contact Now
Detailed Product Description
Highlight:

automatic bottle filling machine

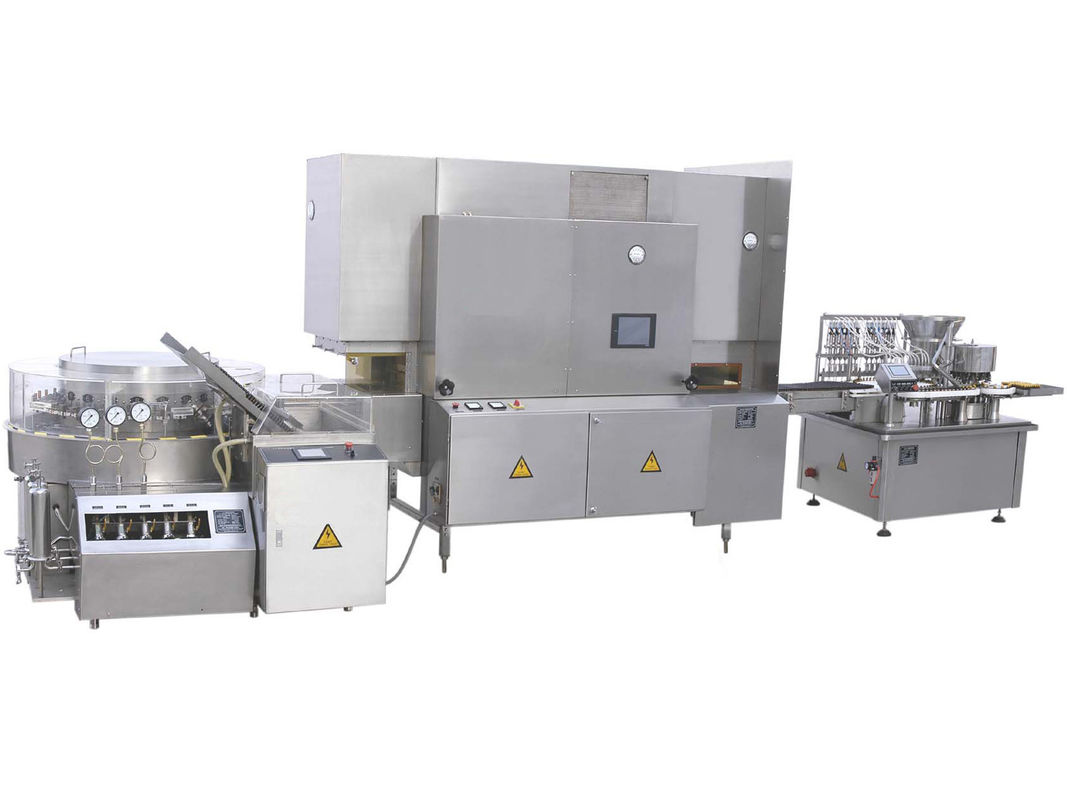

Liquid Boffle Filling Machine Line with Oral Liquid Bottle Ultrasonic Washing, Infrared Drying And Filling Capping





Quick Details:



    Capacity: 12,000-24,000bottles per hour

    Filling Volume: 5-30ml

    Using Field: Oral Liquid, Syrup, Water, etc.

    Production Line Consist: Ultrasonic Washing Machine, Infrared Drying Tunnel, Filling and Capping Machine





Description:



    This line is made up of model Vertical ultrasonic washing machine, Infrared drying and sterilizing machine, filling and capping machine, which is divided into washing area, drying and sterilizing area, and filling and sealing area. The complete line can manufacture singly and combine with other machine and can complete the following procedures: watering, ultrasonic washing, clamping bottle with manipulator, turning, flushing water, air charging, preheating drying and sterilizing, cooling, filling, cap arranging, cap-feeding, and capping.





Application:



   Pharmaceutical: Oral Liquid, Syrup, Homoeo,etc

   Food: Oral Water, energy Drink, etc.





Specification:



System model LTKGX5/20/A LTKGX5/20/B LTKGX5/20/C
Component parts cleaner LTCX/40 LTCX /60 LTCX /80
Drier LTPG420/27 LTPG 620/43 LTPG900/68
Filling&Capping machine LTKG12/12 LTKG12/12A LTKG16/24
Productive Capacity(btls/m) 12000 18000 24000
Specifications 5-25ml 5-25ml 5-30ml
Electric power(kw) 43/actual consumption 28 voltage AC 380V 50Hz 61/actual consumption 30 voltage AC 380V 50Hz 92/actual consumption 40 voltage AC 380V 50Hz
Total weight(kg) 5000 6000 6500
Overall dimension(L*W*H) 7400*2500*2400mm 8200*2500*1800mm 8600*2500*1800mm



Show Room:

Liquid Bottle Filling Machine Line with Oral Liquid Bottle Ultrasonic Washing 0



Sample Room:

Liquid Bottle Filling Machine Line with Oral Liquid Bottle Ultrasonic Washing 1

Liquid Bottle Filling Machine Line with Oral Liquid Bottle Ultrasonic Washing 2



Production Workshop:

Liquid Bottle Filling Machine Line with Oral Liquid Bottle Ultrasonic Washing 3
