planetary reduction gearbox

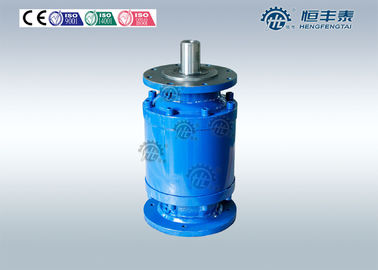

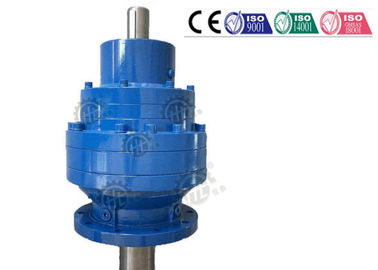

Electric Motor Planetary Shaft Mounted Speed Reducer For Sewing Machine





Quick Details



Output Speed: 0.17rpm-431rpm



Input Speed: 500rpm-1500rpm



Mounting position: Foot, Flange or Shaft mounted



Keyed Parallel (inch series)





Applicable AC motors:



Integral motors - M series - with or without brake



IEC-standard motors - BN series - with or without brake



NEMA-Motors up to frame size 624-365T



Hydraulic Brake



Hydraulically released parking brake on request



Electric Brake



DC and AC type



Note: Same mounting install dimensions to Bonfiglioli 300 series shaft Planetary gear motors From 300-325



Input Options:



NEMA-Motor adaptor



IEC-normalized Motor adaptor



Parallel keyed shaft with or without fan cooling - inch dims.





Descriptions:



Their planetary drive train makes them the ideal choice for all the severe duty applications where shock



loadings and impacts are more the rule than the exception.Compact, and yet extremely powerful, are the



units of the 300 Planetary gear reducer series.  The product configuration is highly versatile, due to



several options as far as the mounting, the gear layout, the output shaft and the motor interface. All the



features are available for each of the 18 finely spaced frame sizes, spanning over the 1.000 - 1.400.000



Nm torque range. Finding the perfect match to any drive problem is therefore more than a wish, it is



something users can safely rely on - always.









Specification:



Type	Torque Nm	Type	Torque Nm
300	1.250	313	57.970
301	2.460	314	84.000
303	2.970	315	105.000
304	3.960	316	138.820
305	5.800	317	208.110
306	10.840	318	280.580
307	15.680	319	476.410
309	23.240	321	655.740
310	34.120	323	890.310
311	48.330	325	1.286.700





Applications:



1. Construction machinery:



the rotating Drills, cranes, Flat Bed Trailer, elevating transporter, Pile Driver, Continuous wall Grab, and



etc)

2. Wind Power Equipment:



Transportation facility, lifting equipment, and variable pitch), Coal Mine Machinery(Excavator), etc



Maintenance:



After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.



Pls do not mix the mineral oil and synthetic oil.



Pls check the oil level in regular time.



The cause for breakdown and settlement of reducer:



Breakdown	Possible cause	The way of settlement
The motor does not run in case of loading	Voltage is too low	Check to see if the wire is too long or too thin
	Gear is damaged	Repair it in special factory
	Work with overload	Discharge load
Very hot	Work with overload	Discharge load
	Start and stop too many	Discharge load
	Bearing is damaged	Reduce using frequency
	Voltage is too high or too low	Repair or replace
Loud noise	If the noise is loud and continuous, the bearing is damaged or the gear damaged	Repair it in special factory
	If the noise is loud occasionally, the gear must be damaged or something else block	Contact with the service institution





Storage:



1:Pls do not store in outdoor.



2:pls put cardboard, wood or other material between the products and floor. the gear box cannot directly



touch the floor.





Warranty:



HFT guarantees the products sold for one year from the date of delivery. Warranty is limited to repair or



replacement, free at our plant, of defective parts due to an ascertained defect of material or manufacture.



The parts replaced remain our property. All other compensation is excluded, nor can any direct and/or



indirect damage be claimed of any nature, also for the temporary lack of use of the goods purchased.
