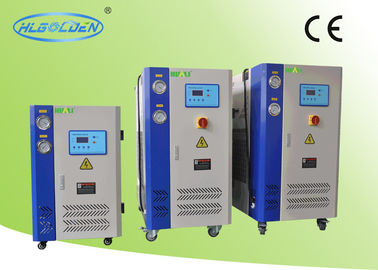

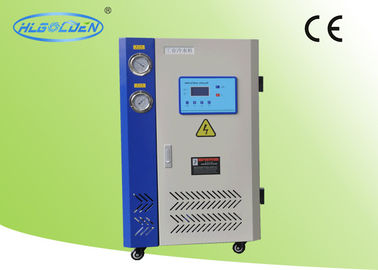

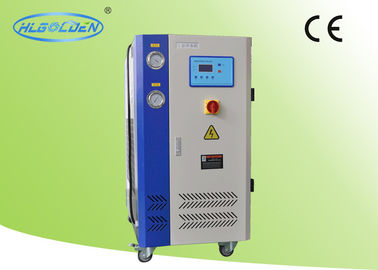

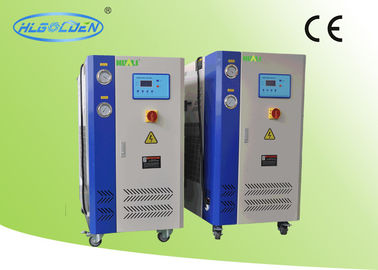

380 Volt Pipe Coil Type Air Cooled Water Chiller System 7.9KW for Aquarium

Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

380 Volt Pipe Coil Type Air Cooled Water Chiller for Aquarium 7.9KW

Production Description:

Rated Cooling Capacity Based on: Chilled water inlet/outlet temp. 17℃/12℃, Cooling water inlet/outlet temp. 30°C/35°C, Fouling factor: 0.088㎡.°C/KW
Chilled Water Range: 5～20℃;
Cooling Water Range: 20～40℃;
Changes of Specification for improvement may be made without Notice.

Product Function:

Applicable for Electroplating, plastic products, hardware, chemical industry, electronics, food preservation,laser carving, vacuum coating, ultrasonic cleaning etc industries.
Chiller that uses high effective a easy cleaning stainless steel heat exchanger, exerts its unique advantageagainst erosion and filth in electroplating, PCB, oxidization, chemical Industry,etc weakacid and alkaline conditions.
Compressor: Hitachi, Daikin, Danfoss, Copeland, client can choose the compressors.
Safety production Device:Phase reversion protection, Phase lack protection, overload current protection, discharge air temp. protection, low & high pressure protection.

Product Detail:

Model HLLA ～		03SI
Rated Cooling Capacity	×1000 kcal/h	7.9
	KW	9.2
Input Power (KW)		3.85
Comp. Input Power×Qty. (KW)		2.6
Chillded Water Pump Model		HT1.0DK-20
Chilled Water Pump Power (KW)		0.75
Comp. Current (A)		6.8
Power Supply		3φ-380V-50HZ
Safety Protection		Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection.
Number of Refrigeration Circuit		1
Capacity Control (%)		0, 100
Refrigerant		R22
Condenser		Ripple Aluminum Fins around Cooper Pipe
Power lnput of Fan (KW)		0.5
Evaporator		Pipe Coil Type
Water Side Max Pressure (MPa)		-
Dia.of Pipe to Evaporator (inch)		1"
Chilled Water Flow (L/m)		26.4
Evaporator Water Pressure drop (kPa)		-
Running Noise dB(A)		72
Tank Volume (L)		80
Total weight (Kg)		130
Dimension L×W×H		1000×650×1500
