| Place of Origin: | China |
| Brand Name: | Head-Power |
| Certification: | CE, ISO |
| Model Number: | HAL20 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden case/carton case |
| Delivery Time: | 25~30days |
| Payment Terms: | TT, LC |
| Supply Ability: | 3,000pcs per year |
| Product Name: | Ducted Split Air Conditioner | Application: | Air Conditioning, Cooling |
|---|---|---|---|
| Cooling Capacity: | 52kw | Refrigerant: | R22/R407C/R134A |
| Compressor: | Hermetic Scroll Type | Power Supply: | 380V/3PH/50Hz |
| Dimensions(L*W*H) Mm: | 1900x850x 2100 | Material: | Painted Galvanized Steel Sheet |
| High Light: | split system air conditioner,split units air conditioners |
||

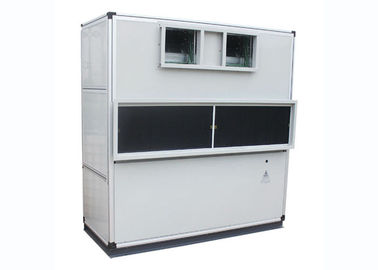

Ducted Split Air Conditioner HAL20(H)
Specifications:
|
Model |
|
HAL20(H) |
|
|
Cooling capcity |
kW |
52 |
|
|
Heating capacity |
kW |
56.8 |
|
|
Power supply |
|
380V/3PH/50Hz |
|
|
Refrigerant |
|
R22 |
|
|
Air Volume |
m3/h |
10800 |
|
|
External static pressure |
Pa |
200 |
|
|
Compressor |
Type |
|
Hermetic Scroll |
|
Power |
kW |
15.8 |
|
|
Quantity |
pcs |
2 |
|
|
Supply fan |
Type |
|
DIDW, centrifugal type |
|
Air volume |
m3/h |
10800 |
|
|
Motor power |
kW |
3 |
|
|
Drive method |
|
Belt drive |
|
|
Evaporator |
Type |
|
Copper tubes with aluminium fins |
|
Throttle method |
|
External balanced thermal expansion valve |
|
|
Electric controller |
|
LCD display screen, automatic microcomputer controller, failure alarm, balance operation time, Timer on/off,etc |
|
|
Net weight |
kg |
350 |
|
|
Dimensions(L*W*H) |
mm |
1900x850x 2100 |
|
|
Matched condensing unit |
|
SW20 |
|
Description:
1. Flexible hermetic scroll compressor: brand Hitachi, Copeland, Sanyo,etc. Original new comprssor.
2. Independent refrigerant system: each compressor is equipped with an independent refrigerant circuit, easy for energy regulation, save energy and ensure running reliablity.
3. Heat Exchanger: heat exchanger tubes are arranged in triangle staggered way,generally 4~8row according to capacity, high quality red copper(TP2). Coil border is bent and formed with galvanized steel panels, stable and durable.
4. Supply fan: DIDW centrifugal fan, Chinese famous brand Deton, Yilida. Fan shaft use C-45 steel, well treated and anti-rust, easy for maintainance.
5. Low maintainance fees, no consumption of water: suitable for Asia, Middle east, Africa, Europe, South America,etc.
6. Microcomputer controller, simple interface, adjust temperature automatically, convenient for operation and easy for maintainance.
7. Galvanized steel sheet, outside powder coated, anti-corrosion and weather proof type condenser.
8. Various indoor unit for option: floor standing duct connection type, floor standing free blowing type, ceiling mounted duct connection type, high static pressure, meet requirements of different occasions.
9. Refrigerant: R22( R407C and R134a are optional).
10. For other power supply area and specifications, please contact for details.
Applications:
