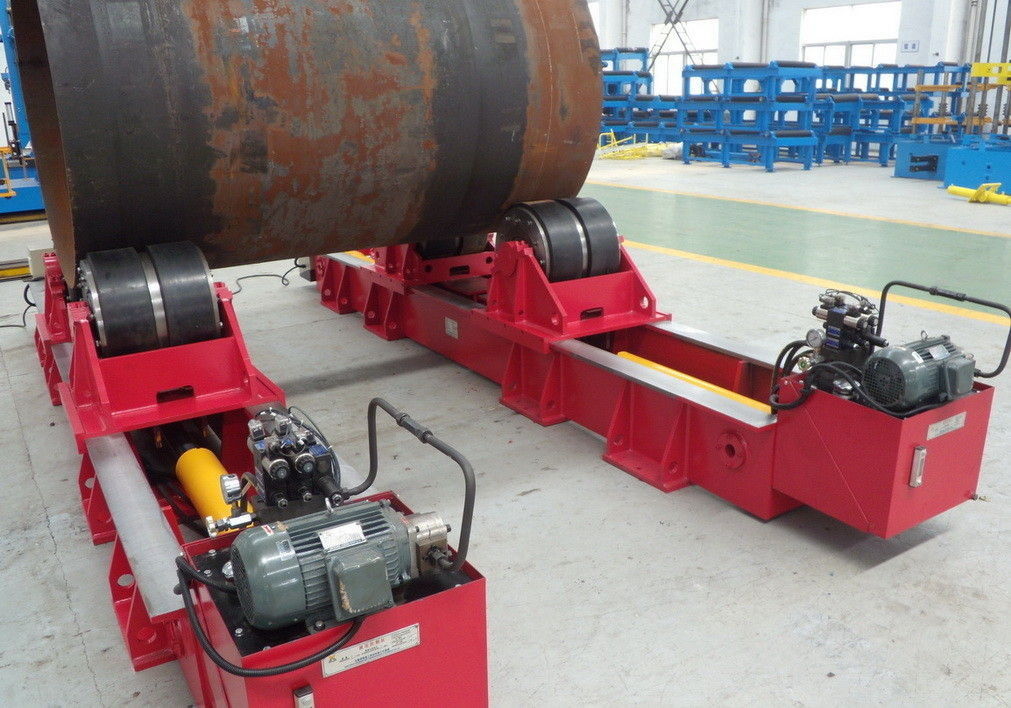

4 Wheels Normal Welding Rollers 40 Tons Hydraulic Cylinder Adjust Wheels Center to Center Distance

4 Wheels Normal Welding Rollers 40 Tons Hydraulic Cylinder Adjust Wheels Center to Center Distance

  • 4 Wheels Normal  Welding Rollers 40 Tons Hydraulic Cylinder Adjust Wheels Center to Center Distance
4 Wheels Normal  Welding Rollers 40 Tons Hydraulic Cylinder Adjust Wheels Center to Center Distance
Product Details:
Place of Origin: China
Brand Name: TMB
Certification: CE
Model Number: WR
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: discuss in letter
Packaging Details: With bubble paper
Delivery Time: 15--25days
Payment Terms: TT
Supply Ability: 80sets/month
Contact Now
Detailed Product Description
Max Loading: 40 Tons Workpiece Diameter: 600-4200 Mm
Wheels Size: Diameter400mm Motor Power: 3 Kw
High Light:

Conventional Welding Rotator

,

adjustable welding rotator


4 wheels normal  welding rotator with hydraulic cylinder
adjust the wheels center to center distance


  Hydraulic Cylinder Adjust the Wheels Center to Center distance is easily to be controled . We may lift the tanks edge height  and prevent the tanks horizontal move .
     Adjustable turning rolls apply to circular cylinder of welding, trolley spacing can adjust to adopt to the cylinder size. Roller spacing can be divided into lead screw-adjustable turning roller and bolt-adjustable turning roller. Adjustable turning rolls for double motor drive, frequency control method.
    The Speed adjust by VFD,the line speed may from 100--1000mm/min.the VFD brand :Siemens or Teco.
Ordering Information: the units size,the units weight , the wheels material (Rubber or PU ).

Product Application:

Hardfacing roller ,shaft,cylinder welding ,such as Marine,Oil&Gas ; Offshore,Petro Chemical ; Plate Heat Exchanger ; Charged air cooler ; Pressure Vessel ; Boiler ; Pipe system&Steel works etc

Product Advantage:
  1. Hydraulic bar / Screw Center to Centerv
  2. high quality
  3. Reasonable price
  4. good service

Specification:


Type

Max Loading Ton


Vessel Diameter Range  mm


Wheel Size mm

Motor Power KW


Linear Speed M/ h








Diameter

Width





WR5

5

250---2300

250/240

100+20*2

0.37*2

6---60

WR10

10

320---2800

300/290

120+25*2

0.55*2



WR20

20

450---3500

350/340

120+30*2

1.1*2



WR40

40

600---4200

400/390

120+40*2

1.5*2



WR60

60

750---4800

450/440

120+50*2

1.5*2



WR80

80

850---5000

500/490

120+60*2

2.2*2



WR100

100

1000---5500

500/490

120+70*2

2.2*2



WR150

150

1200---6500

600

280

4*2



WR200

200

1500---8000

700

300

5.5*2



WR500

500

1800---8000

800

300

7.5*2



WR1000

1000

2000---10000

1000

350

11*2



Remote control box line length:8m
The speed adjustment way:Electromagnetic speed or frequency conversion
SAR5-100:Roller for rubber wheel add two pieces of metal wheels / SAR150-500:Roller for metal wheels
SAR150-1000:Adopt double motor speed control
