| Place of Origin: | China |
| Brand Name: | Sunny |
| Certification: | Certification of original |
| Model Number: | XBJ-9 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Electric control box with wooden package,Mainframe with Plastic paper package |
| Delivery Time: | 30 work days |
| Payment Terms: | 1-30% T/T down payment,70% T/T before delivery 2-30% T/T down payment,70% LC at sight |
| Supply Ability: | 20 sets per month |
| Application: | Pressure Vessel|Steel Structure|Heat Exchanger | Driving Motor: | 1.5 Kw |
|---|---|---|---|
| Milling Angle: | 0° - 45° | Milling Motor: | 5.5KW |
| Milling Thickness: | 6mm - 50mm | Product Name: | Edge Milling Machine |
| Pump Motor: | 5.5kw | Rotational Speed: | 75rpm -420rpm |
| Voltage Standard: | 380V|50HZ|3PH | Max Width: | 12 Mm |
| High Light: | Floor Milling Machine,Pipe Mill Machine |
||

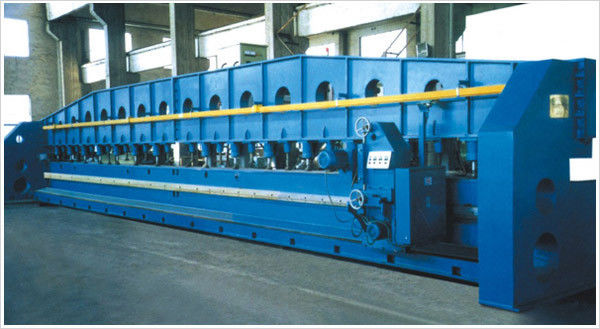

Large Pipe Beveling Edge Milling Machine for Heat Exchanger with 0° - 45° Milling Angle
Kindly Noted:
1. Model from XBJ-6 to XBJ-15, please confirmed before you order.
2. Milling angle is from 0-45°,thickness is from 6-50mm.
3. Voltage standard is 380V , 50HZ , 3PH. We can customized other voltage
4. We can customize various different specifications ,such as double milling head ,double side milling ,great milling head ,auto-feeding and auto-blocking.
Description:
Compared with the traditional edge milling machine,this machines series is mountable in their tracks,more rational in structure by heat-treatment of the bench,more reliable and stable in the milling&turning head’s running.The feed and feed-back systems are fully independent respectively.The feed-back is quick and is highly efficient.The angle of the milling tool’s tray is convenient in adjustment,and the custom-built tool rest and the normal tool rest can be interconverted.They are the updated products of the traditional edge milling machine.
Applications:
This series machine is used for milling and beveling the plate ,mainly used for pressure vessel , steel structure , heat exchanger ,etc .
Specifications:
|
Type |
XBJ-6 |
XBJ-9 |
XBJ-12 |
XBJ-15 |
|
The angle of milling |
0-45° |
|||
|
The thickness of being processed steel plate |
6-50 mm |
|||
|
The max width of milling bevel edge at on time |
12 mm |
|||
|
The travelling speed of crosswise milling |
150-500 mm/min |
|||
|
The rotational speed of milling and whittling spindle |
75-420 rpm |
|||
|
The working pressure of the hydraulic pressure system |
<= 3.5 Mpa |
|||
|
The number of the cylinders |
8 |
11 |
15 |
19 |
|
Height between the platform and the ground |
900 mm |
|||
|
The power of driving motor |
1.5 kw |
|||
|
The power of milling motor |
5.5 kw |
|||
|
The power of oil pump motor |
5.5 kw |
|||
Competitive Advantage:
1. Adopt Taiwan Milling head ,or famous Chinese brand milling head.
2. Main electric elements are Schneider.
3. Automatic feeding ,with roller bed,easy for operation.
4. We can customize various different specifications ,such as double milling head ,double side milling ,great milling head ,auto-feeding and auto-blocking.
5. Customer could test the machine in Seller’s factory before delivery.
The Edge milling machine comprises:
Installation and commissioning:
If customer need installation and commissioning,we’ll send 3 workers to customer’s factory ,including one machinery worker,one electrician and one translator.But customer should pay the cost of installation and commissioning.
Why always Sunny?
360°guarantee makes ordering risk free.
20 years welding machine manufacture experiences.
one-stop service of welding.
OEM service.
Quickly feedback for your problems.
