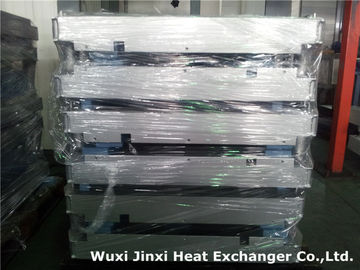

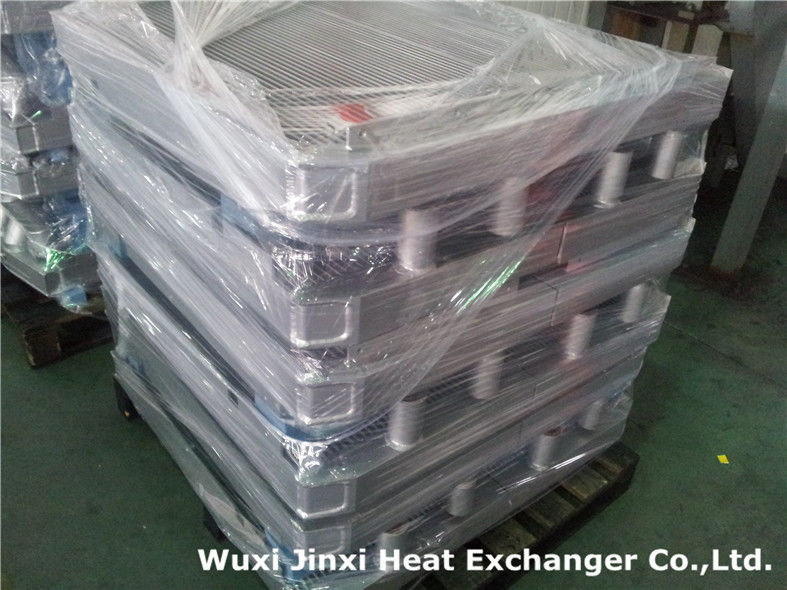

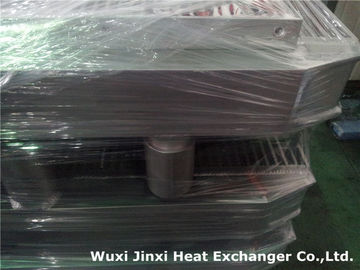

Anti-pressure Hydraulic Oil Heat Exchanger 5.0Mpa Water Test Combined Core

Anti-pressure Hydraulic Oil Heat Exchanger 5.0Mpa Water Test Combined Core

1. Quick Detail:

2. Specifications

Flange 5A02

Cover Plate 5mm * 140mm * 1190mm

Bar 9.5 mm*11.5 mm * 140 mm

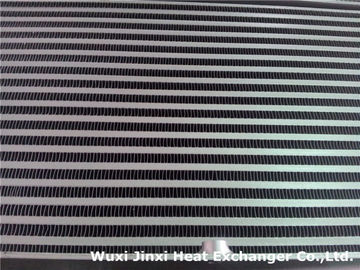

Outside fins 140mm * 1167mm D type Wavy Type

Cross plate: 1.2mm * 140mm * 1190mm Y2-434

3. Description:

1. Scattered tropical structure should be wavy type

2. No any damage or scratch on the surface of the core, keep aluminum fins are modified.

   Plastic cap should be put on the tube mouth
3. Interior alleyway must bear the pressure of 5.0 Mpa water test, 10mintues water test without no deformation or leakage. Then, 1.6Mpa gas tightness test, 30minitues without deformation or any leakage.
4. Thoroughly welding at the passage of inner fins, guarantee the surface was clean and without any air-hole or crack, finished with nice surface.
5. This oil cooler was referred to the standard of JB/T7261-94 aluminum plate- fin heat exchanger technical document granting condition.

Factory feature:

1) Advanced managment

2) Large scale sales: Our Jinxi company have been founded for many years.During the period,we are focused on producing various types of heat exchanger,and have a good selling in Europe,North America,Korea,Australia,Indonesia, Southeast and Asia.

3) Reasonable price: We do not believe in huge profit margin for long term business.Price is competitive

than those trading company.

4) Excellent quality:Our technicians have rich professional working experience,and design or produce what you want and our produces have passed ISO certification.

5) Rapid response to customer's demand:We will reply within 24 hours after receiving you letter.
