Plate Fin Transmission Heat Exchanger Vacuum Aluminum Brazing

Plate Fin Transmission Heat Exchanger Vacuum Aluminum Brazing

  • Plate Fin Transmission Heat Exchanger Vacuum Aluminum Brazing
  • Plate Fin Transmission Heat Exchanger Vacuum Aluminum Brazing
  • Plate Fin Transmission Heat Exchanger Vacuum Aluminum Brazing
  • Plate Fin Transmission Heat Exchanger Vacuum Aluminum Brazing
Plate Fin Transmission Heat Exchanger Vacuum Aluminum Brazing
Product Details:
Place of Origin: China
Brand Name: Jinxi
Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Ply-wooden box/Paper Box
Delivery Time: 10-15 working days
Payment Terms: T/T ,Western union
Supply Ability: 130Tons/month
Contact Now
Detailed Product Description
Model Number: S150319 Material: Aluminum
Type: Oil Cooler Structure: Plate Fin
Certificate: ISO9001:2008 Technology: Brazed / Welding
High Light:

oil cooler heat exchanger

,

engine oil heat exchanger

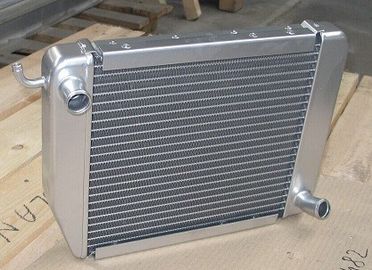

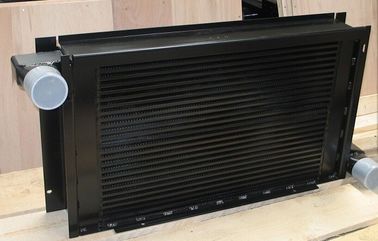

Plate Fin Transmission Heat Exchanger Vacuum Aluminum Brazing





Oil cooler , air cooled aftercooler , combicooler (air to air heat exchanger) for compressors and also cooler for hydraulic systems.



1. Oil cooler from 5kw to 260kw with fan motor 12V/24V DC; Or 220V/380V AC or hydraulic motor

2. Bar & plate brazed aluminum core for Hydraulic radiator

3. Tanks:5052 Aluminum




  • 1. Maximum Working Pressure: 21bar
    2. Dynamic working pressure: 14bar
    3. Maximum oil inlet temperature: 120C


Based on modern production technology JINXI aluminum coolers are manufactured completely individually after  customer requirements according "bar&plate" or fine & tube design.  According customers demand we supply also special fans for 110, 220, 380 volts in 50 and 60hz

Our production line covers small quantities up to larger call-offs for compressors, construction machinery as "air to air heat exchanger", "oil cooler" or "air cooled aftercooler". Our flexibility both in design, and supply is the guarantee for a reliable partnership.  According your demand we hold a security stock or as a consignment stock in your company.



Standard coolers from 5,5 kW (7,5 HP) up to 110 kW (150 HP) are  available in black, grey or silver as spray or powder painting. Other colors on request.



Name

Hydraulic oil radiator

Brand name

Jinxi

Model Number

S150320

Certificate

ISO9001:2008

Structure

Plate fin

Technology

Brazed / Welding

Packaging

Wooden

MOQ

1 PCS

Delivery time

10-15 working days

Type

Oil heat exchanger
