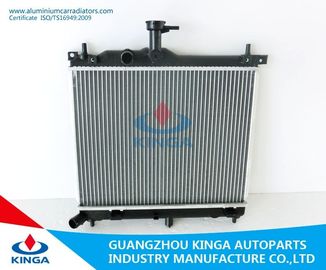

Suzuki MT Aluminium Car Radiators for HYUNDAI i10 ’ 09 PA 16 / 22 / 26

Suzuki MT Aluminium Car Radiators for HYUNDAI i10 ’ 09 PA 16 / 22 / 26

  • Suzuki  MT Aluminium Car Radiators for  HYUNDAI i10 ’ 09 PA 16 / 22 / 26
  • Suzuki  MT Aluminium Car Radiators for  HYUNDAI i10 ’ 09 PA 16 / 22 / 26
  • Suzuki  MT Aluminium Car Radiators for  HYUNDAI i10 ’ 09 PA 16 / 22 / 26
  • Suzuki  MT Aluminium Car Radiators for  HYUNDAI i10 ’ 09 PA 16 / 22 / 26
Suzuki  MT Aluminium Car Radiators for  HYUNDAI i10 ’ 09 PA 16 / 22 / 26
Product Details:
Place of Origin: China
Brand Name: Kinga
Certification: ISO 9001 / TS 16949
Model Number: KJ - 18060
Payment & Shipping Terms:
Minimum Order Quantity: 30PCS
Price: Negotiation
Packaging Details: Cardboard Protector / Neutral Packing / Foam Corner Protector / Blister Packing
Delivery Time: 45 DAYS
Payment Terms: L/C T/T
Supply Ability: 600,000 PCS / Year
Price terms: FOB ShenZhen / GuangZhou
Contact Now
Detailed Product Description
Core Size: 350 * 438 * 16 / 22 / 26 Mm Core Thickness: 16 / 22 / 26 Mm
At / Mt: MT Core Material: Aluminum
Inlet Location: Top Left Outlet Location: Bottom Left
Tank Size: 46 / 46 * 452 Mm Net Weight: 1.2 / 1.6 / 1.8 Kg
Core Width: 438 Mm Place Of Origin: Guangzhou China
High Light:

car parts radiator

,

car radiator replacement

Suzuki  MT Aluminium Car Radiators for  HYUNDAI i10 ’ 09 PA 16 / 22 / 26

Radiator Works (engine cooling)

When the engine is cold, the thermostat is closed except for a small bypass flow so that the thermostat
experiences changes to the coolant temperature as the engine warms up. Engine coolant is directed by
the thermostat to the inlet of the circulating pump and is returned directly to the engine, bypassing the
radiator. Directing water to circulate only through the engine allows the temperature to reach optimum
operating temperature as quickly as possible whilst avoiding localised "hot spots." Once the coolant
reaches the thermostat's activation temperature, it opens, allowing water to flow through the radiator to
prevent the temperature rising higher.

Choose us, No Hesitation!

1) Wide user:
Kinga products are high qulity, and have exported a great number of products to all over the world,
such as Korea, USA, German, etc.
2) OEM services:
We can provide customer with OEM service of heat exchangers totally according to your requirements,
also print logos which are based on buyers' needs.
3) Certification:
We have been qualified by ISO9001:2000 and ISO 16949
4) Professional factory:
We are specializing in manufacturing heat exchangers ( auto radiator , condencer and cooling networks )
for more than 20 years. So Kinga can offer you pretty competitive price with good quality.
5) Design term:
kINGA factory has an experienced and professional design team with dynamic technical engineers.

Various of Radiators Supply



Peugeot 307


KJ - 50012 - PA16 / 22 / 26


PA16 / 22 / 26 MT


Hyundai KIA PICANTO ' 10


KJ - 21152A - PA16 / 26


PA16 / 26 MT


Suzuki VITARA ' 88 - 97 TA01 G16A


KJ - 18019A - PA16 / 26


PA16 / 26 AT


Mitsubishi PICKUP L200 ' 98


KJ - 14094 - PA16 / 26 / 32 / 36


PA16 / 26 / 32 / 36 MT


Toyota COROLLA 01-04 ZZE122


KJ - 12165 - PA16 / 26


PA16 / 26/ AT


......

Structure Chart


Brazed Radiator Structure

1. Filler Neck

8. Side Plate

15. KINGA Logo

2. Top Header Plate

9. Core Height

16. Bottom Header Plate

3. Inlet Pipe

10. Fin

17. Water switch

4. Top Tank

11. Tube

18. Bottom Tank

5. Top Mounting Pins

12. Core Width

19. Oil Cooler

6. Fan Mount

13. Core Thickness

20. Outlet Pipe

7. Overflow Pipe

14. Clip




Suzuki  MT Aluminium Car Radiators for  HYUNDAI i10 ’ 09 PA 16 / 22 / 26 0

Suzuki CULTUS ' 07 - MT


Our services
Our team has over 20 years experience in foreign trade business.
We have exported more than 10,000pcs car radiators per year.
Mostly exported to Australia market, Asia and South America market.
We believe our professional will bring you a bright future.


Suzuki Radiator Drawings

Suzuki  MT Aluminium Car Radiators for  HYUNDAI i10 ’ 09 PA 16 / 22 / 26 1

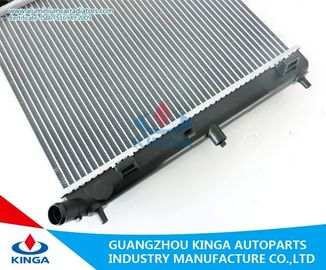

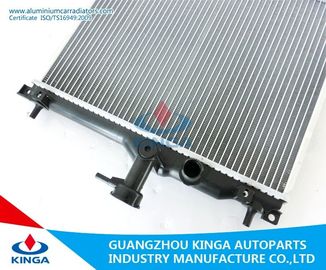

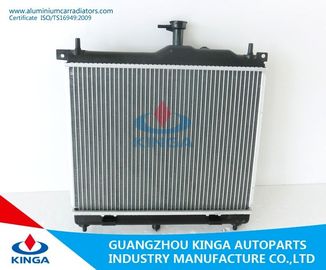

Suzuki Radiator Pictures

Suzuki  MT Aluminium Car Radiators for  HYUNDAI i10 ’ 09 PA 16 / 22 / 26 2

Suzuki  MT Aluminium Car Radiators for  HYUNDAI i10 ’ 09 PA 16 / 22 / 26 3


Kijnga Metal Pressing Workshop

Metal Pressing workshop found in 2005, it specializes in producing stamping parts and components.
10 millions RMB has been invested for this workshop.
Covering more than 30 million square meters, the workshop has series of equipments,including punching
machine, hydraulic machine, cutting machine, bending machine, cutting machine, calibration lapping-shearing machine, spot welding machine, etc.
Many kinds of metal plate and ironware can be processed, the biggest size of which is 300 * 200 * 200 mm
And now the production capacity is about 500 thousand pieces each month.
There are more than 1000 pieces of various metal plate and ironware moulds in the workshop.

Suzuki  MT Aluminium Car Radiators for  HYUNDAI i10 ’ 09 PA 16 / 22 / 26 4


Please feel free to contact us for any question! Join us, this is a new beginning of the journey ,
you will feel the most efficient service, best quality and excellent reputation!
