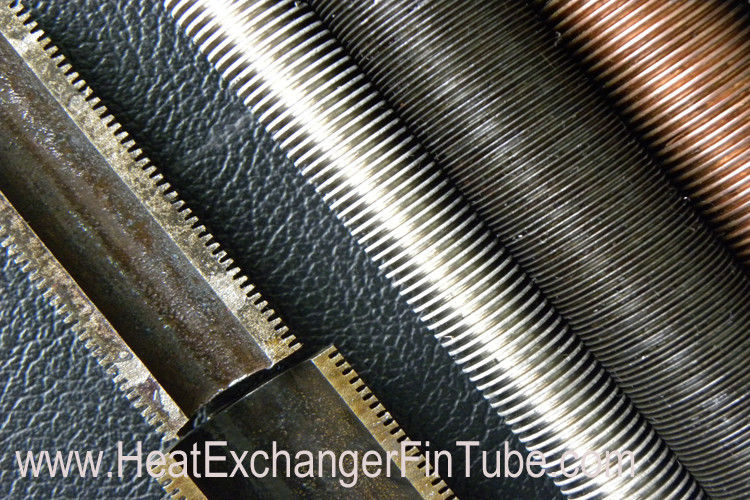

A334 Gr 1 / 3 / 6 Carbon Steel Threaded Low Fin Tube for Ventilation system

A334 Gr 1 / 3 / 6 Carbon Steel Threaded Low Fin Tube for Ventilation system

A334 Gr 1 / 3 / 6 Carbon Steel Threaded Low Fin Tube for Ventilation system

Product Details:

Place of Origin: China.Imported materials are available
Brand Name: Reliance
Certification: CE,ISO...
Model Number: LF

Payment & Shipping Terms:

Minimum Order Quantity: N/A
Price: N/A
Packaging Details: (1) All integral low fin tubes are packed in hexagonal bundles. (2) Steel frame case sealed by plywoods; 3: Solid fumigated seaworthy wooden box.
Delivery Time: Ex-work with 5 weeks after order.
Payment Terms: T/T, L/C
Supply Ability: Daily capacity up to 5,000 Meters
Contact Now
Detailed Product Description
Company Type: Manufacturer, Importer & Exporter Fin Tube Type: Low Fin Tubes
Fins Type: Integral, N Type Origin: China
Nearest Port: Shanghai Port, China Acceptance Ceritia: WOLVERINE, HPT, GEWA-K & GEWA-KS



26FPI / 1024 FPM / 0.976mm , A334 Gr 1 / 3 / 6 Carbon Steel Threaded Fin Tubes

ASTM A334 / A334M: Seamless and Welded Carbon and Alloy-Steel Tubes for Low-Temperature Service


Quick Detail:

General Low Fin Tubes Production Capacity  Specifications of Low Fin Tubes('N' Fins)

Finning Facility: 10 finning machines;
Daily capacity up to 3000 meters;
Tube OD: 12.7 mm~25.4mm
Tube Length: 18 meters max.
Fin Height: 1.2 mm ~2.77mm
Fin Thickness: appr. 0.3mm
Fin Pitch: 30 FPI /28 FPI/ 26 FPI/ 36 FPI /43 FPI



Description:
Manufacturing process:
The fins are rolled out of outer wall of the plain tubes by a pass roller. Tubes and fins are in same piece tube. We call it “N” fin type.

More Carbon Steel Tube Materials Sheet We're Supplying:

Chinese Standard

Steel Grade/ No.

American Standard

Steel Grade/ No.

GB5310

20G,15MoG,12CrMoG,

12Cr2MoG,15CrMoG,

12Cr1MoVG,

ASTM A106

GR. A,B,C

GB9948

10,20,12CrMo,15CMo

ASTM A53

GR.A,B

GB3087

10,20

ASTM A192







ASTM A179







ASTM A210

A-1,C





ASTM A333

GR.1,GR3,GR6





ASTM A334

GR.1,GR3,GR6





ASTM A209

T1, Ta, Tb

German standard

Steel Grade/ No.

Japanese standard

Steel Grade/ No.

DIN17175

ST35.8, ST45.8

JIS G3454

STPG370,STPG410

DIN1629

ST37.0, ST44.0, ST52.0

JIS G3461

STB340, STB410, STB440

British Standard

Steel Grade/ No.

European standard

Steel Grade/ No.

BS3059-Ⅰ

320

EN10216-1

P195TR1/TR2,P235TR1/TR2,
P265TR1/TR2

BS3059-ⅡS1/S2; TC1/TC2

360,440,

EN10216-2
TC1,TC2

195GH,P235GH,
P265GH,





Delivery Range of Low Fin Tubes
We can provide the integral low fin tubes with un-finned section gaps( 5mm Min.) in the middle of core tube OR bent with designed Bend Radius.

Quality Test:
The integral low fin tube quality is assured by hydrostatic or pneumatic tests, eddy current tests & MARCO            tests in order to verify design specifications.
 Acceptance Ceritia:
 WOLVERINE  /  HPT  / GEWA-K & GEWA-KS

Delivery Condition:
Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish.
The desiccants are put into the each package for continental transportation.


Applications:
​The Integral Low Finned Tubes find the preference in the following industrial sectors:

  1. Heating systems
  2. Ventilation systems
  3. Refrigeration and climate control systems
  4. Mechanical engineering
  5. Automotive manufacturing
  6. Chemicals and pertrochemical and power plant technology


Specifications:
Tube and fins consist of same tube and materials as carbon steel , low-alloy steels , stainless steel , brass , copper , cooper-nickel alloys , aluminum bronze , nickel alloys , titanium etc...





Data sheet of Low Fin Tubes

Plain tube (mm)

Finned section dimensions (mm)

Ratio

De

D×t

Tp

dd

dr

di

η

mm

19×2

0.8

18.8

17

134

2.8

17.9

19×2

1

18.8

16.8

13.4

2.5

17.8

19×2

1.25

18.8

16.6

13

2.2

17.8

19×2

1.5

18.8

16.6

13

2

17.7

19×2

2

18.8

16.4

13

1.7

17.5

25×2.5

0.8

24.8

23

18.8

2.8

23.9

25×2.5

1

24.8

22.6

18.8

2.75

23.7

25×2.5

1.25

24.8

22.3

18

2.5

23.6

25×2.5

1.5

24.8

22.3

18

2.2

23.5

25×2.5

2

24.8

22

18

1.8

23.4

25×2.5

2.5

24.8

22

18

1.6

23.3

D------Outside diameter of plain end section
Dof----Diameter of top fins
Dr-----Root diameter of finned section
Di-----Inside diameter of finned section
T------Wall thickness of plain end section
Tp-----Fin pitch
De----Equivalent diameter of finned tube
L------Plain tube end length

Please email us for more information.



Competitive Advantage:

  1. We have more than 10,000 square meters workshop, including 10 finning machines, daily extrusion capacity up to 3,000 meters.
  2. The finning machines of Integral Low Fin Tubes are designed and assembled by ourselves and we can offer you finning machines and all accessories etc...
  3. The Integral Low Fins are rolled out of the tube surface to increase the tubes external surface area, without affecting any others dimension.
  4. Low Fins are very useful for tight condensers and exhibits high efficiency of heat transfer.
  5. Economical solutions of heat exchange problems of media with different heat conduction abilities or different current conditions.
  6. High chemical-, thermal- and mechanical resistance, suitable for rough operation conditions.
