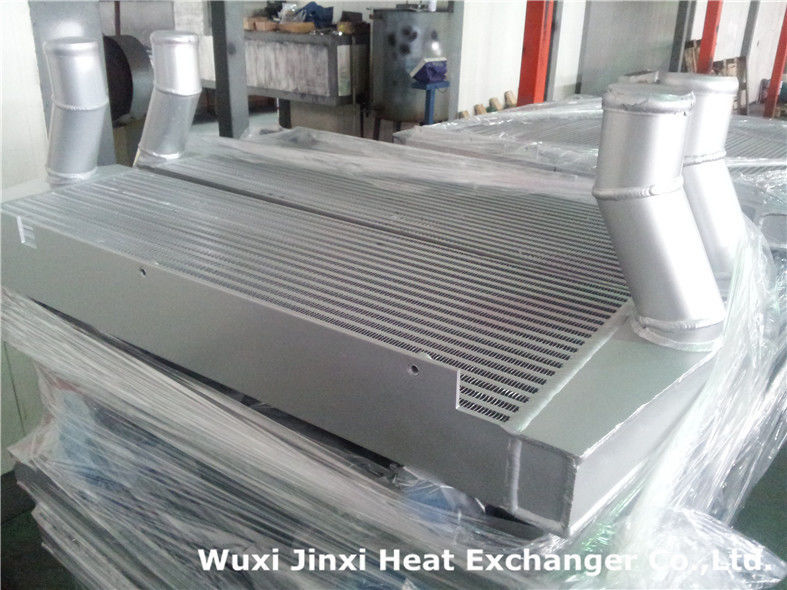

Aluminum Tube and Fin Heat Exchanger with Water Cooler Combined

Aluminum Tube and Fin Heat Exchanger with Water Cooler Combined

Quick Detail:

2. Water cooler feature

Features of Water cooler

All parts has been cleaned strictly, drying. Fins are modified with smooth apperance.

All long smooth of short bar and perpendicularity has been controlled.

Weld joint are with full of welding, and no weld penetration or desoldering.

No any damage or scratch on the surface of the core

plates,which have a corrugation pattern to create high turbulence in the fluids and thereby maximise the heat transfer.

3. Technical requirement

(1) This water cooler was referred to the standard of JB/T7261-94 aluminum plate- fin heat exchanger technical document granting condition.

(2) Thoroughly welding at the channel of inner fin, guarantee the surface was clean and without any gas porosity or crack, finished with smooth surface.

(3) Interior alleyway must bear the pressure of 1.5 Mpa water test, 10mintues water test without no deformation or leakage. Then, 1.0Mpa gas tightness test, 30minitues without air bubble.

(4) Tub mouth must be protected with plastic cap or plastic film.

tube dimension: Φ63.5mm*5mm length is 85mm  6061-T6

(5) Connector Z1/4  6061-T6

(6) Aluminum dam board 110 mm*31 mm*120 mm  5A02-F

(7) Burring and chamferring sharp angle for connector Z 1/4

Advantage of factory:

1) Design term:We have professional design team.

2) Sales Market: Our Jinxi company have been founded for many years.During the period,we are focused on producing various types of heat exchanger,and have a good selling in Europe,North America,Korea,Australia,Indonesia, Southeast and Asia.

3) Reasonable price: We do not believe in huge profit margin for long term business.Win-win is the survival.Our price is more competitive than others manufacturer.

4) Excellent quality:Our technicians are full of professonal skills , they can design cooler as your specific  requirment. Wuxi Jinxi Heat Exchanger Co.,Ltd. was cerfified by many authotities with many certification.

5) Rapid response to your needs:We will reply within 24 hours after receiving you letter.If you have urgent thing,welcome to call us.
