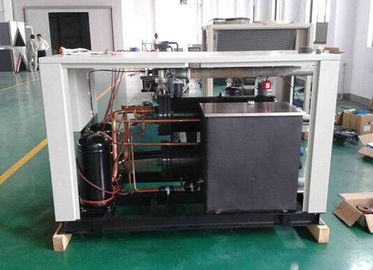

Name: Power Saving Water Cooled Chiller , Cooling Water Chiller For Vacuum Coating
Brand: KASSEL
SKU: KSWb
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (188 reviews)

Home Products Industrial Water Chiller

Power Saving Water Cooled Chiller , Cooling Water Chiller For Vacuum Coating

Product Details:

Place of Origin:	ZHEJIANG,CHINA
Brand Name:	KASSEL
Certification:	CE,ISO
Model Number:	KSWb

Payment & Shipping Terms:

Minimum Order Quantity:	ONE
Price:	N.A.
Packaging Details:	Export Wooden Case
Delivery Time:	N.A.
Payment Terms:	T/T
Supply Ability:	15 SETS PER MONTH

Contact Now

Detailed Product Description

Name:	Water Chiller	Brand:	Kassel
Power:	3N-380V 50HZ	Certification:	CE/ISO
Application:	Plastic Injection Molding\|Extruder	Theory:	Water Cooled
High Light:	water chiller units , cooling water chiller

CE Approved industrial water cooled chille / For Center Air Condition And Control Low Temperature

Quick Detail:

KASSEL water-cooled box chiller can provide chilled water with the temperature of -10～+30℃ for ice storage, cold air distribution and all other occasions requiring chilled water above -10℃, It can precisely control the temperature required by the mechanized production of modern industry, thus greatly improving the production efficiency and product quality.

Description:

1. Industrial Water Chiller is mainly applicable for working according to heat exchange principle.

2. Applicable for cooling field in modern industry without influence from environmental temperature as the necessary equipment.

3. It adopts quality and newly designed compressor and famous brand water pump and features low noise,power saving and long service life.

4. It is equipped with precise electric temperature controller and is capable of precisely controlling the water temperature at +7°c-+35°c.

5. The condenser and heat radiator with unique design features best heat exchange efficiency.

6. The stainless steel open water tank is convenient for cleaning and maintaining .

7. The product is installed with over current protective device,high and low voltage switch and time delay devices.

8. Automatically alarm and display the fault reason when there's fault.

Applications:

Aluminum oxidation, ultrasonic cleaning and cooling, printing, artificial leather, vacuum coating, wallpaper

Specifications:

Model KSW		3	5	8	10s	12	15s
Cooling	10³Kcal/H	7.9	13.3	21.3	27.8	31.1	41.7
Capacity	Kw	9.2	15.5	24.8	32.3	36.2	48.5
Compressor	Power(Kw)	2.25	3.75	6.3	7.5	8.9	11.5
	Quantity	1	1	1	2	1	2
Total Power	Kw	2.8	4.85	7.8	8.8	10	14.5
Evaporator	Form	Water Tank Plate Tube, High Efficiency Shell-And-Tube, Stainless Steel Plate
	Water Flow	1.4	2.25	4	5	6	8.5
	(M³/H)
	Interface	DN25	DN25	DN25	DN25	DN40	DN40
	Size
Condenser	Form	Shell And Tube Type, Stainless Steel Plate
	Water Flow	2.2	3.5	5.2	6.5	7.9	10.3
	(M³/H)
	Interface	DN25	DN25	DN25	DN25	DN40	DN40
	Size
Chilled Water	Power(Kw)	0.37	0.55	0.75	0.75	1.1	1.5
Pump	Head	28	30	28	34	33.5	32
Water Tank (L)		60	60	120	150	150	200
Weight(Kg)		150	180	260	350	400	500
Safety Protection		Incomplete/Reverse Phase Warning, High&Low Voltage Protection, Overload ,current Protection, Water Shortage Warning, Anti-Freezing Protection, Delay Protection

Refrigeration Conditions		chilled water inlet temperature:12℃,chilled water outlet temperature:7 ℃ cooling water inlet temperature:30℃,cooling water outlet temperature:35 ℃

Refrigeration		R22 R407C R410A R404A R134A
Power		380V/3PH/50HZ
