| Place of Origin: | DongGuan, GuangDong |
| Brand Name: | HIGOLDEN |
| Certification: | CE |
| Model Number: | HLWH-110S |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 10 working days after received your payment |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 500pcs per month |
| Product Name: | Water Heat Pump | Application: | Indoor |
|---|---|---|---|
| Cooling Capacity: | 109kw | Power Supply: | 380v-50hz-3ph |
| Heating Capacity: | 119kw | Refrigeration: | R410A |
| Standard: | CE | Type: | Free Standing |
| Compressor: | Hitachi/Daikin | ||
| High Light: | Drinking Water Chiller,hot Water Chiller |
||

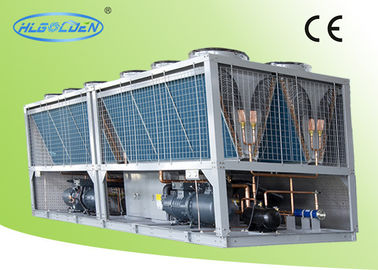

OEM HVAC Air Cooled Heat Pump Chiller 109KW with Refrigeration Parts
Description:
• Water sourced design make sure high efficiency through using wasted or ground water
• Save energy for global environment
• Cooling capacity:109KW
• Double shell tube type heat exchanger
• Working source side outlet water temperature range:-10℃ to 35℃
• Max outlet water temperature: 60℃ when heating
• Min outlet water temperature: 8℃ when cooling.
• Five working mode are changeable.
• Copeland scroll compressor
• R410A R22 R407 refrigerant
Specifications:
|
Model HLWH～ |
110S |
|
|
|
Cooling Capacity (KW) |
109 |
|
Comp. Input Power (KW) |
34.7 |
|
|
|
Heating Capacity (KW) |
119 |
|
Comp. Input Power (KW) |
32.6 |
|
|
Refrigerant |
R22 |
|
|
Power Supply |
380V/ 3ph/ 50Hz |
|
|
Safety Protection |
protection, Overload current protection, High pressure protection, Low temp. protection, Water flow protection. |
|
|
Number of Refrigeration Circuit |
1 |
|
|
Capacity Control (%) |
0, 50, 75, 100 |
|
|
Refrigerant Charge (Kg) |
30 |
|
|
Air Cooled Heat Exchanger |
Ripple Aluminum Fins Around Copper Pipe |
|
|
|
Dia.of Pipe (inch) |
2-1/2" |
|
|
1 |
|
|
Chilled Water Flow(m3/h) |
18.7 |
|
|
Water Pressure Drop (kPa) |
28 |
|
|
Flow of Hot Water(m3/h) |
20.4 |
|
|
|
|
56.8 |
|
Power×Qty (KW) |
1.2×4 |
|
|
Running Noise dB(A) |
75 |
|
|
Total Weight (Kg) |
1550 |
|
|
Running Weight(Kg) |
1660 |
|
Main Export Markets:
Standard Using Environment Notes
• High efficiency intube type heat exchanger, factory insulated with flexible close cell material.
• Copper tube connection with charge, filter drier, gas-liquid separator, high and low pressure switch.
• Rated Cooling Capacity Based on: DB Temperature 35℃/WB Temperature 24℃
• Chilled water inlet/outlet temp. 12℃/7℃, Fouling factor: 0.088㎡.°C/KW.
• Rated Cooling Capacity Based on: DB Temperature 7℃/WB Temperature 6℃
• Hot water inlet/outlet temp. 40℃/45℃; Hot water range: 45℃～45℃;
• Chilled Water Range: 5～20℃; Lowest Ambient Temperature: -5℃～43℃;
• Heat recovery unit water in/out temperadture: 50℃/55℃;
