    Product Details:

    Contact Now
    Detailed Product Description

    Two Down drive guide rollers Knitted No-tension industrial wash machine





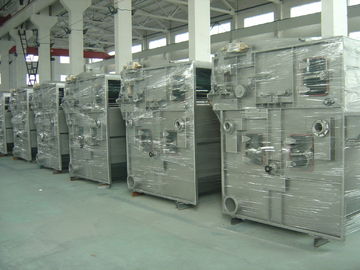

    KD-200 type Knitted No-tension Washing Machine



    Equipment Flow:

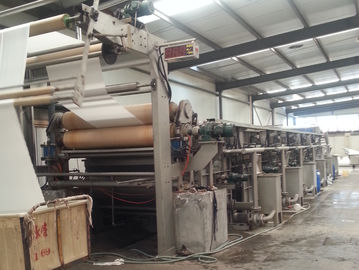

    Open width feeding frame — photoelectric translation centring machine — MEX812F high efficiency drum drip washing box*6—XLP681F two rollers seal type padder*6 — spray pipe — vacuum water suction device — TM05-02C pendulous doffing frame



    Equipment performance

    1.  Machine width: 2000mm

    2.  Machine direction: left or right hand.

    3.  Machine speed: 20-30m/min(bleaching speed: approx. 8m/min)

    4.  Transmission method: AC frequency,PLC control

    5.  Water consumption: 0.5~1m³/h

    6.  Steam consumption: 150~200kg/h

    7.  Power consumption: 36kw/h



    Equipment Structure Feauture:

    1.  TE08-01 open width feeding frame

    C type Steel frame,fabric tight deivce,gap bridge guide roller.

    Photoelectric translation centring machine.

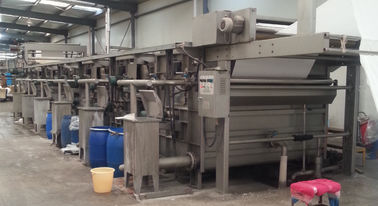

    2.  MEX812F high efficiency drum drip washing box

    Box end plate is made of 3mm stainless steel plate,processed through laser cutting,NC machining,Surface shot blast.

    Upper drive mesh drip washing roller (big diameter), 4 drip washing pipe are in the top of the mesh roller to flush the fabric,mesh diameter Ф750mm.



    Description:

    Two Down drive guide rollers(big diameter), guide rollers diameterФ250mm, two guide rollers are in the independent wash tank, lotion backflow to improve wash efficiency.Lotion is 130mm higher above the guide roller, this can ensure the adequate exchange between surface dyeing and lotion, and decrease cutting points distance (fabric enter into mesh roller) in max limit, keep sure fabric relax synchronous running.

    Mesh roller and two big diameter guid rollers dragged by BWD2-43-1.5 motor reducer together,unique driven design ensures fabric relax synchronous running.

    Excessive guide roller roller diameterФ150mm,2mm stainless steel plate and 2mm carbon steel composite coated roller, with light weight and good dynamic balance efficiency, the fabric can run in low tension.

    Mesh roller, big diameter guide roller,excussive guide roller adopt stainless steel bearing block, external rolling bearings,    Ф50mm mechnical seal, decrease fabric running tension in max limit.

    Drip washing box inside with low tension tension frame,high precision pneumatic control valve,instrument, air cylinder control, ensure the fabric tension delivery siginal is true,in high speed,sensitive.

    Tension frame actuating signal feedback through high precision FJS-R type angular transducer.

    Drip washing box equipped with dynamic filter circulation box to ensure lotion clean and full washing of fabric, improve lotion use ratio, low energy and consumption.Circulation pumb model: centrifugal pipeline pumb 100BF100, flow rate: 100m³/h, 4KW.

    Internal with Venturi direct heating pipe, uniform heat, reduce noise.

    Drip washing box equipped with backflow mouth to achieve backflow box by box, pneumatic dewatering, fast and convenient.

    Top open the door,easy to clean.

    Temperature self control, 95—98℃±3℃,low energy and consumption, easy to operate.

    Box side equipped with temperature gauge,surface and ground into 45°, easy to observe.

    Left and right toughened glass door, convenient to observe internal condition.

    Annular rubber sealing strips are made of silicon rubber with thermostability,good sealing,acid and alkali corrosion.



    XLP681F two rollers seal type padder

    Whole sealing structure,comprised of box,padder,drive thread separator rolle,low tension tension frame.

    Box end plate is made of 3mm stainless steel plate,processed through laser cutting,NC machining,Surface shot blast.

    Top open the door, easy to clean.

    Padder drive roller is stainless steel roller, diameter Ф220mm, passive BNR roller is in the top of steel roller, diameter Ф250mm,pressure 3t, dragged by 2.2KW AC motor.

    Drive thread separator roller diameter Ф125mm,single drag.

    Sealed box inside with low tension tension frame,  high precision pneumatic control valve,instrument,air cylinder control,ensure the fabric tension delivery siginal is true,in high speed,sensitive.

    Tension frame actuating signal feedback through high precision FJS-R type angular transducer.

    Spray pipe and vacuum suction device are equipped behind the second padder padding point .





    Elelctric control cabinet:

    u  Spray cabinet shell,there is axial flow fan to radiate in the top,internal with lighting device.

    u  Schneider transducer, total machine AC frequency speed adjustment control.

    u  Schneider switches, contactor, breaker and other main electrical element are famous brand.



    User self-care parts:

    Foundation,installation material,big tools,shovel crane;

    Total pipelines net,light,air compressor;

    Cloth cars,A-frame,chemical dyes burdening system



    Equipment list:

    ITEM

    EQUIPMENT NAME

    Remark

    QTY

    1

    Inlet Frame

    Made of 14# Channel steel

    1  set

    2

    Infrared centring m/c



    1 set

    3

    Single-drum washer

    sets of small built-in padders

    6 pcs

    4

    Spray filter box

    3KW

    6 pcs

    5

    Filter screen plate



    6 pcs

    6

    Pumb

    3kw

    6 pcs

    7

    Joint pipe of circulating pump



    6 pcs

    8

    Circulating spray wash pipe



    6 sets

    9

    Water-jet knif



    6 sets

    10

    Stainless steel fastener



    6 pcs

    11

    Foot expansion screw



    8 sets

    12

    Inlet Valve



    6 sets

    13

    Drain valve



    6 sets

    14

    Temperature control meter



    6 sets

    15

    Electrical cabinet



    1 set

    16

    Electrical apparatus element

    Siemens, Chint, Schneider



    17

    Electric wire

    Wuxi “Yuandong”



    18

    Synchronous Controller

    Siemens



    19

    PLC

    Siemens



    20

    Button

    Hnagzhou “Sanli”



    21

    Motor

    China “Wannan”



    22

    Cabling channel



    1 set

    23

    Electric metallic tubing



    1 set

    24

    Air compressed pipe



    1 set

    25

    Connection of water inlet



    1 set

    26

    Connection of steam inlet pipe



    1 set

    27

    Two-roller padder

    Pressure 5 ton

    1 set

    28

    Two-roller padder,  transition guide roller



    1 pcs

    29

    Cloth discharge device

    14# Channel steel

    1 set

    30

    Cloth discharge traction device



    1 set
