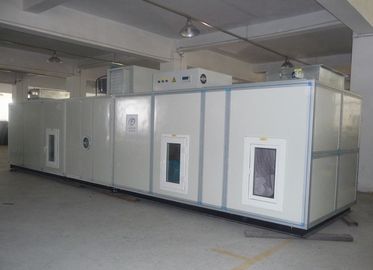

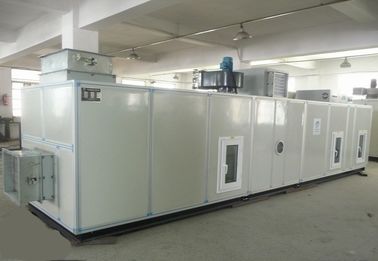

AHU Rotor Industrial Dehumidification Refrigeration for Low Humidity Control

AHU Rotor Industrial Dehumidification Refrigeration for Low Humidity Control

    • AHU Rotor Industrial Dehumidification Refrigeration for Low Humidity Control
    • AHU Rotor Industrial Dehumidification Refrigeration for Low Humidity Control
  • AHU Rotor Industrial Dehumidification Refrigeration for Low Humidity Control

    Product Details:

    Place of Origin: Hangzhou, China
    Brand Name: FUDA
    Certification: CE, ISO
    Model Number: ZCB-12000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Packaging Details: Wooden Case
    Delivery Time: 45days
    Payment Terms: T/T, LC
    Supply Ability: 10000sets/Year
    Contact Now
    Detailed Product Description
    Product Name: AHU Dehumidifier Type: Cooling&Dehumidifying
    Usage: Temp.&Humidity Control Product: Cool&Dry Air
    Process Airflow: 12000m3/h Supply Air: T≤25℃ RH≤30%

    AHU Rotor Industrial Dehumidification Systems for Low Humidity Control





    Quick Details:



    Style: Refrigeration combined with Wheel

    Desiccant Rotor: Sweden Proflute

    Desiccant Material: Silica Gel Wheel

    Rated Air Flow: 12000m³ /h

    Supply Air Parameters: T=25℃ RH=30%

    Dehumidifier Quality: High

    Installed Power: 12.6kw

    Voltage: 380V, 3 phase, 50Hz or customized

    Certification: ISO9001:2008

    Features: Economical, energy-saving

    Usage: Air temperature and humidity control





    General Description:



    ZCB Series Dehumidifier removes humidity using both refrigeration and a desiccant rotor, so it can both control the humidity and temperature of the air independently in one packaged unit.

    Operating Principles:



    Supply Air Stream

    Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.



    Exhaust Air Stream

    Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.





    Applications:



    • War Industry, Scientific Research, Electric Power Transportation
    • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
    • Chemical, Daily Chemical Industry, Food Beverage Industry
    • Safety Glazing Material Industry, Tyre and Rubber Industry
    • Medical Instrument, Vegetables Frozen, Precise Instrument
    • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage





    Specifications:



    Main Parameters
    Model ZCB—12000
    Total Process Airflow 12000m3/h
    Fresh Airflow 1200 m3/h
    Recirculated Airflow 10800 m3/h
    Rotor Regeneration Airflow 2000m3/h
    Parameters of Output Air T≤25℃ RH≤30%
    Regeneration Power Electric Heating 42kw
    Steam Consumption 90kg/h
    The Power of Regeneration Fan 1.5kw
    The Power of Blower 11kw
    The Power of Driving Motor 0.1 kw
    Installed Power Electric Regeneration 54.6kw
    Steam Regeneration 12.6kw
    Cooling Load 116kw
    Chilled Water Consumption 20T/h




    Competitive Advantage:



    • Sweden Proflute silicon gel wheel
    • A totally self contained unit
    • PLC automatic control system, human-machine interface
    • Aluminum alloy frame, anti-cold bridge
    • Body modularization design, foam injected double wall casing
    • Stainless steel drain pan and bottom boards
    • Process and reactivation air flow sectors are insulated
    • Electric or steam heating or convert type can be available
    • All operation parameters can be on-line observed, ensuring operation reliability
    • High temperature safety thermostat cutout
    • Electrical interlocking of fan motors, heaters and rotor driving





    We can provide the technical design and suitable equipment for dehumidification project according to your requirements.
