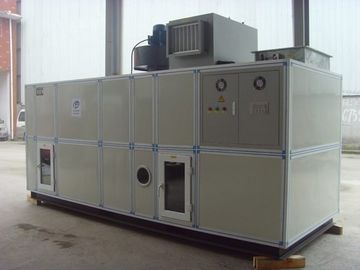

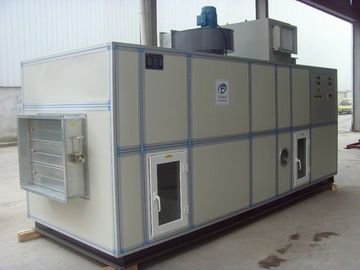

Economical Desiccant Industrial Dehumidification Equipment Rotary Wheel

Economical Desiccant Industrial Dehumidification Equipment Rotary Wheel

    • Economical Desiccant Industrial Dehumidification Equipment Rotary Wheel
    • Economical Desiccant Industrial Dehumidification Equipment Rotary Wheel
  • Economical Desiccant Industrial Dehumidification Equipment Rotary Wheel

    Product Details:

    Place of Origin: Hangzhou, China
    Brand Name: FUDA
    Certification: CE, ISO
    Model Number: ZCB-10000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Packaging Details: Wooden Case
    Delivery Time: 45days
    Payment Terms: T/T, LC
    Supply Ability: 10000sets/Year
    Contact Now
    Detailed Product Description
    Rated Airflow: 10000m3/h Supply Dry Air: T≤36℃ RH≤10%
    Product Name: Dehumidification Equipment Dehumidify Mode: Cooling And Rotor
    Usage: Temp. & Humidity Control Standard: ISO9001:2008

    Cool Industrial Dehumidification Equipment Desiccant Rotary Wheel




    Quick Details:

    Style: Refrigeration combined with Wheel
    Desiccant Rotor: Sweden Proflute
    Desiccant Material: Silica Gel Wheel
    Rated Air Flow: 10000m³ /h
    Supply Air Parameters: T=36℃ RH=8%
    Dehumidifier Quality: High
    Installed Power: 10.7kw
    Voltage: 380V, 3 phase, 50Hz or customized
    Certification: ISO9001:2008
    Features: Economical, energy-saving
    Usage: Air temperature and humidity control


    General Description:

    ZCB Series Dehumidification Equipment removes humidity using both refrigeration and a desiccant rotor, so it can both control the humidity and temperature of the air independently in one packaged unit.
    Operating Principles:

    Supply Air Stream
    Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.

    Exhaust Air Stream
    Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.


    Applications:



    • War Industry, Scientific Research, Electric Power Transportation
    • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
    • Chemical, Daily Chemical Industry, Food Beverage Industry
    • Safety Glazing Material Industry, Tyre and Rubber Industry
    • Medical Instrument, Vegetables Frozen, Precise Instrument
    • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage




    Specifications:


    Main Parameters
    Model ZCB—10000
    Total Process Airflow 10000m3/h
    Fresh Airflow 5400m3/h
    Recirculated Airflow 4600m3/h
    Rotor Regeneration Airflow 3340m3/h
    Parameters of Output Air T≤36℃ RH≤8%
    Regeneration Power Electric Heating 72kw
    Steam Consumption 145kg/h
    The Power of Regeneration Fan 3.0kw
    The Power of Blower 7.5kw
    The Power of Driving Motor 0.2kw
    Installed Power Electric Regeneration 82.7kw
    Steam Regeneration 10.7kw
    Cooling Load 141kw
    Chilled Water Consumption 25T/h



    Competitive Advantage:



    • Sweden Proflute silicon gel wheel
    • A totally self contained unit
    • PLC automatic control system, human-machine interface
    • Aluminum alloy frame, anti-cold bridge
    • Body modularization design, foam injected double wall casing
    • Stainless steel drain pan and bottom boards
    • Process and reactivation air flow sectors are insulated
    • Electric or steam heating or convert type can be available
    • All operation parameters can be on-line observed, ensuring operation reliability
    • High temperature safety thermostat cutout
    • Electrical interlocking of fan motors, heaters and rotor driving




    We can provide unique dehumidifying solution according to your requirements.
