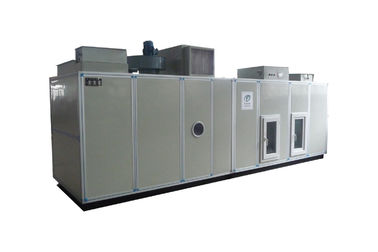

Fully Automatic Industrial Dehumidification Equipment with silica gel

Fully Automatic Industrial Dehumidification Equipment with silica gel

Fully Automatic Industrial Dehumidification Equipment with silica gel

Product Details:

Place of Origin: Hangzhou, China
Brand Name: FUDA
Certification: CE, ISO
Model Number: ZCB-8000

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Wooden Case
Delivery Time: 45days
Payment Terms: T/T, LC
Supply Ability: 10000sets/Year
Contact Now
Detailed Product Description
Product Name: Dehumidification System Treatment Type: Refrigeration&Rotor
Structure: Custom-built Regeneration: Steam/ Electricity
Process Airflow: 8000m3/h Supply Air: T≤23℃ RH=30%-40%

Fully Automatic Industrial Dehumidification Equipment with Silica Gel Rotor​





Quick Details:



Style: Refrigeration combined with Wheel

Desiccant Rotor: Sweden Proflute

Desiccant Material: Silica Gel Wheel

Rated Air Flow: 8000m³ /h

Supply Air Parameters: T=20℃ RH=30%

Dehumidifier Quality: High

Installed Power: 40.71kw

Voltage: 380V, 3 phase, 50Hz or customized

Certification: ISO9001:2008

Features: Economical, energy-saving

Usage: Air temperature and humidity control





General Description:



ZCB Series Industrial Dehumidification Systems remove humidity using both refrigeration and a desiccant rotor, so it can both control the humidity and temperature of the air independently in one packaged unit.





Applications:

  • War Industry, Scientific Research, Electric Power Transportation
  • Lithium Battery Industry, Biotechnology Pharmaceutical Industry
  • Chemical, Daily Chemical Industry, Food Beverage Industry
  • Safety Glazing Material Industry, Tyre and Rubber Industry
  • Medical Instrument, Vegetables Frozen, Precise Instrument
  • Wood Goods, Shipbuilding Painting Industry, Kinds of Storage



Specifications:



Main Parameters
Model ZCB—8000
Total Process Airflow 8000m3/h
Fresh Airflow 800 m3/h
First Recirculated Airflow 3200 m3/h
Second Recirculated Airflow 4000 h
Rotor Regeneration Airflow 1330m3/h
Parameters of Output Air T≤23℃ RH=30%-40%
Regeneration Heating Power 32kw
The Power of Regeneration Fan 1.1kw
The Power of Blower 7.5kw
The Power of Driving Motor 0.1kw
Installed Power 40.7kw
Cooling Load 42.9kw




Operating Principles:



Supply Air Stream

Outside air is drawn into the unit using the supply fan. The warm, moist outside air first passes through filters and then the cooling coil where it is cooled. The air then goes through the desiccant wheel where the air is dehumidified and the temperature is raised. At last the air is delivered directly to the space or into an existing air handler.



Exhaust Air Stream

Exhaust air is used to provide energy recovery for the desiccant wheel and is drawn into the unit using the exhaust fan. The air filtered and then heated and humidified during the energy recovery process. The air is then heated while passing through the regeneration coil. The heated air removes the moisture that the desiccant wheel adsorbs from the process air stream.





Competitive Advantage:

  • Sweden Proflute silicon gel wheel
  • A totally self contained unit
  • PLC automatic control system, human-machine interface
  • Aluminum alloy frame, anti-cold bridge
  • Body modularization design, foam injected double wall casing
  • Stainless steel drain pan and bottom boards
  • Process and reactivation air flow sectors are insulated
  • Electric or steam heating or convert type can be available
  • All operation parameters can be on-line observed, ensuring operation reliability
  • High temperature safety thermostat cutout
  • Electrical interlocking of fan motors, heaters and rotor driving



We can provide technical design and suitable equipment for dehumidification project according to your requirements.
