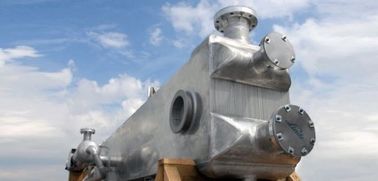

Plate Fin Air Separation Heating Exchanger for Condensation Evaporator

Plate Fin Air Separation Heating Exchanger for Condensation Evaporator

  • Plate Fin Air Separation Heating Exchanger for Condensation Evaporator
  • Plate Fin Air Separation Heating Exchanger for Condensation Evaporator
  • Plate Fin Air Separation Heating Exchanger for Condensation Evaporator
  • Plate Fin Air Separation Heating Exchanger for Condensation Evaporator
Plate Fin Air Separation Heating Exchanger for Condensation Evaporator
Product Details:
Place of Origin: China
Brand Name: Jinxi
Certification: ISO9001:2008
Model Number: Air separator-2701
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Wooden/paper box/paper box
Delivery Time: 10-15 working days
Payment Terms: T/T ,Western union
Supply Ability: 130Tons/month
Contact Now
Detailed Product Description
High Light:

air to air heat exchangers

,

Air Separation Heat Exchanger

Aluminum Plate Fin Air Separation Condensation Evaporator Heat Exchanger

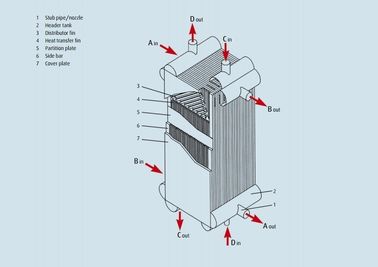

The Brazed Aluminum Plate-Fin Heat Exchanger with the characteristics of compact structure,light weight and high heat taransfer efficiency ,the aluminum plate fin heat exchanger is widely used in various industries such as gas separation plant , LNG plant,transportation, petrochemical and refrigeration applications.





Quick Detail:



Name Air separation heat exchanger Brand Name Jinxi
Color Silver Feature Compact structure,high transfer efficiency
Technique Brazing / Arc Welding Certificate ISO9001:2008





2. Specifications

  • Aluminum vacuum brazed plate-fin air separation
  • Integrated design for pre-cooling,evaporation,fog-removing and water-separating,compact and less losing of cooling and the lowest dew point to 2℃
  • Single unit for air-treating quantity:0.5m³/min-200m³/min
  • Applications: for air separation industry and chemical profession
  • Structure: Plate-fin
  • Highly flexible complete,ready-to-use cooling packages



3. Description:

  1. Production:air separation heat exchanger
  2. Material: Aluminium
  3. Technique: Vacuum Brazing and argon welding
  4. Characteristic:it’s a construction machinery air separation heat exchanger,compact structure, robust design,less losing and the lowest dewoint ,light weight ,easy installation.
  5. Process flows: Blanking ->Fin Punching- > Cleaning - > Core Assembly- >Vacuum Brazing ->Part Machining-> Welding->Pressure Test->Drying ->Overall Inspection -> Painting -> Packaging
  6. OEM&ODM service provided
FIN SPEC.
Fins Pitch(mm/FPI) G(mm) H(mm)
Louvered Fin 2.5~5mm/10~20FPI 0.1~0.17 6.5~18
Wavy Fin 2.5~8mm/6~20FPI 0.1~0.35 2.5~12
Flattop Fin 2.1~10mm/5~20FPI 0.1~0.2 2.5~12
Offset Fin1 4.5~8mm/6~16FPI 0.15~0.5 1~5
Offset Fin2 4~8mm/6~13FPI 0.12~0.2 5~18





Place of Origin: China
Brand Name: Jinxi
Certification: ISO9001:2008
Model Number: Air separator-2701





Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden /paper box
Delivery Time: 10-15 working days
Delivery Terms: FOB shanghai
Payment Terms: T/T ,Western union
Supply Ability: 130Tons/month





Satisfy your demand with following strength:



1) Design term:We have professional design team.



2) Professional manufacturer: Our Jinxi company have been founded for many years.During the period,we are focused on producing various types of heat exchanger,and have a good selling in Europe,North America,Korea,Australia,Indonesia, Southeast and Asia.



3) Reasonable price: We do not believe in huge profit margin for long term business.Win-win is the survival.Our price is more competitive than others manufacturer.



4) Excellent quality:Our technicians have rich professional working experience,and design or produce what you want and our produces have passed ISO certification.



5) Rapid response to your needs:We will reply within 24 hours after receiving you letter.If you have urgent thing,welcome to call us.
