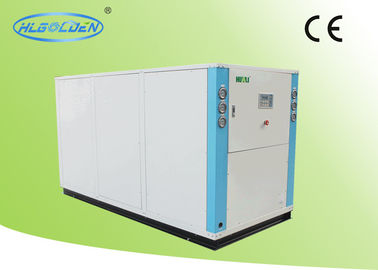

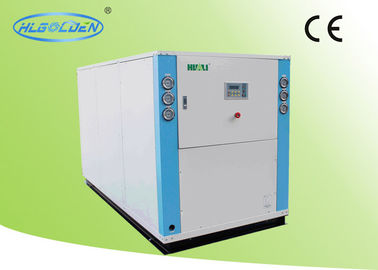

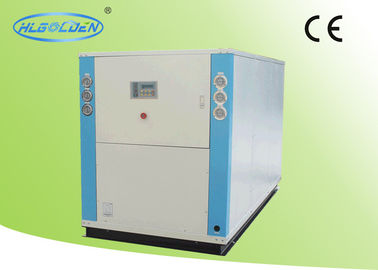

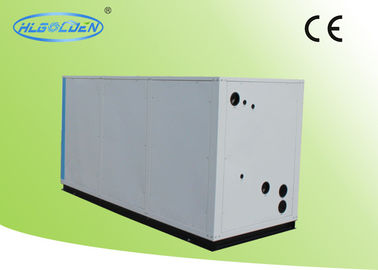

Industrial Water Chiller Machine

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	30 days
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	20 Units per Month

Contact Now

Detailed Product Description

Function:	Industry Cooling	Cooling Capacity:	10.2KW
Input Power:	2.85KW	Compressor:	1 Pc
Comp. Current:	5.3 A	Power Supply:	380~400V/3PH/50HZ
Circuit Number:	1	Water Tank:	80 L
Water Pump:	0.75 KW	Type:	Water Cooled Chiller
Protection:	Low Temp. Protection	Noise:	54 Db(A)
Total Weight:	120KG	Dimension:	8505501050mm
High Light:	Water Cooler Chiller , Water To Water Chiller

Packaged type Industrial Water Chiller Machine , Shell And Tube Type

Product Description:

1. Cooling Capacity: 10.2~156.0KW

2. Chilled Water Range: 5～20℃;

3. Condenser: Shell and tube type.

Evaporator: Shell and tube type.

The heat exchanger units are used in efficient heat transfer tubes,the host selection of imported and

efficient hermetic scroll compressor(Copeland), has a compact structure, small size, light weight,

small installation location, and many other advantages.

4. Microcomputer program controller: Pump Brand.

5. Refrigerant: R22, R407C, R410A, R134A etc.

6. Chilled water flow:29.2~447.1 (L/m).

7. Tank Volume:80~270L.

8. Safe Protection: Phase reversion protection, Phase lack protection, Overload current protection,

Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow

protection etc.

9. High efficient compared to air cooled system chillers.

After-sale Service:

Product Detail:

Model HLLW ～		03SPI
Rated Cooling Capacity	×1000 kcal/h	8.8~134.1
	KW	10.2~156.0
Input Power (KW)		2.85~32.8
Comp. Input Power×Qty. (KW)		2.1~10.2*3
Chilled Water Pump Power (KW)		0.75·2.2
Comp. Current (A)		5.3~64.2
Power Supply		3φ-380V-50HZ
Safety Protection		Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection,
Number of Refrigeration Circuit		1~3
Capacity Control (%)		0, 100~0, 33, 66, 100
Refrigerant		R22
