30HP Air Cooled Industrial Water Chiller Units for Food / Chemical / Leaser

30HP Air Cooled Industrial Water Chiller Units for Food / Chemical / Leaser

    • 30HP Air Cooled Industrial Water Chiller Units for Food / Chemical / Leaser
    • 30HP Air Cooled Industrial Water Chiller Units for Food / Chemical / Leaser
    • 30HP Air Cooled Industrial Water Chiller Units for Food / Chemical / Leaser
    • 30HP Air Cooled Industrial Water Chiller Units for Food / Chemical / Leaser
  • 30HP Air Cooled Industrial Water Chiller Units for Food / Chemical / Leaser

    Product Details:

    Place of Origin: DongGuan, GuangDong
    Brand Name: HIGOLDEN
    Certification: CE
    Model Number: HLLA~30DI

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: Negotiable
    Packaging Details: Wooden Case
    Delivery Time: 30 days
    Payment Terms: T/T, Western Union, L/C, MoneyGram
    Supply Ability: 20 Units per Month
    Contact Now
    Detailed Product Description
    Function: Chilled Water Cooling Capacity: 94.8KW
    Input Power: 31.2KW Compressor: 2 Pcs
    Comp. Current: 49.8 A Power Supply: 380~400V/3PH/50HZ
    Circuit Number: 2 Water Tank: 270 L
    Water Pump: 1.5 KW Type: Air Cooled
    Protection: Discharge Air Temp. Protection Noise: 75 Db(A)
    Total Weight: 980KG
    High Light:

    Water Cooler Chiller

    ,

    Water To Water Chiller


    30HP Air Cooled Industrial Water Chiller Units for Food / Chemical / Leaser


    Product Description:



    Industrial air cooled water chiller:
    1. CE certification.
    2. Imported Brand Parts
    3. Capacity: 9.2KW to 142.2 KW.
    4. Air cooled.

    5. Chilled water temp: 5~20°C.





    Product Function:



    Golden brand industrial chiller are the perfect solution for many application of industry, particular for

    plastic field, such as: injection molding, extrusion(sheet, profile), blow molding, thermoforming, PET,

    plastic film, and other industrial field: medicine, food, chemical, leaser, shoe - making, electronic, printingetc,which need to low the water temperature.





    Product Sale Service:



    • Technical support online service provided.
    • Technical files service provided.
    • On-site training service provided.
    • Spare parts replacement and repair service provided.



    Product Detail:



      Model  HLLA ~

    30DI

    Rated Cooling Capacity

    ×1000 kcal/h

    81.5



    KW

    94.8

    Input Power (KW)

    31.2

    Comp. Input Power×Qty.  (KW)

    12.5×2

     Chillded Water Pump Model

    HT65-19

     Chilled Water Pump Power  (KW)

    2.2

     Comp. Current (A)

    49.8

    Power Supply

    3φ-380V-50HZ

     Safety Protection

    Phase reversion protection,

    Phase lack protection,

    Overload current protection,
    Discharge air temp. protection,

    Low & High pressure protection,

    Low temp. protection, Water flow protection,

     Number of Refrigeration Circuit

    2

     Capacity Control (%)

    0, 50, 100

     Refrigerant

    R22

     Condenser

    Ripple Aluminum Fins around Cooper Pipe

     Power lnput of Fan (KW)

    4.0

     Evaporator

    Shell and Tube Type

     Water Side Max Pressure (MPa)

    1

     Dia.of Pipe to Evaporator (inch)

    2-1/2"

     Chilled Water Flow (L/m)

    272.2

     Evaporator Water Pressure drop (kPa)

    32

     Running Noise dB(A)

    75

     Tank Volume (L)

    270

     Total weight (Kg)

    980

     Dimension L×W×H

    2200×1180×2200

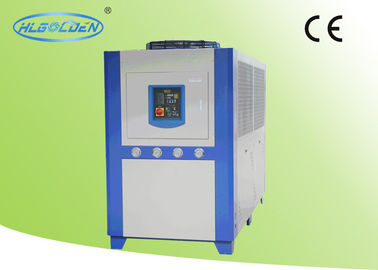

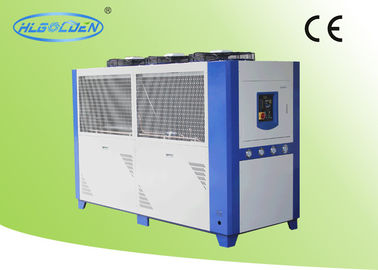

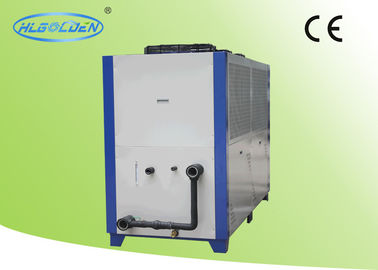

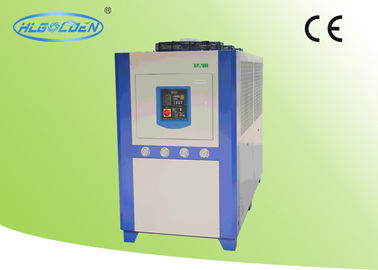

    Product Show:



    30HP Air Cooled Industrial Water Chiller Units for Food / Chemical / Leaser 030HP Air Cooled Industrial Water Chiller Units for Food / Chemical / Leaser 130HP Air Cooled Industrial Water Chiller Units for Food / Chemical / Leaser 2
