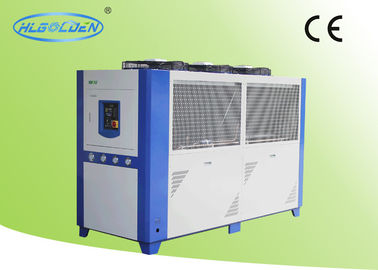

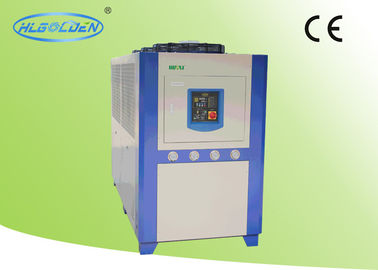

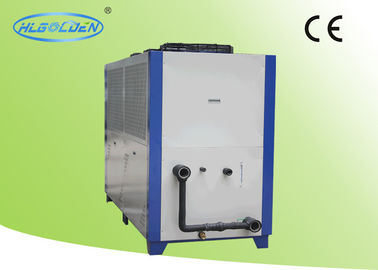

75.2 KW Commercial Water Chiller Machine / Air Cooled Chiller Box

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	25 days
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	20 Units per Month

Contact Now

Detailed Product Description

Function:	Chilled Water	Cooling Capacity:	75.2KW
Input Power:	22.5KW	Compressor:	2 Pcs
Comp. Current:	33.8 A	Power Supply:	380~400V/3PH/50HZ
Circuit Number:	2	Water Tank:	270 L
Water Pump:	1.5 KW	Type:	Air Cooled
Protection:	Discharge Air Temp. Protection	Noise:	75 Db(A)
Total Weight:	880KG
High Light:	Water Cooler Chiller , Air Cooled Scroll Chiller

Electric 75.2 KW Commercial Water Chiller , Box Air Cooled Chiller

Product Description:

Golden industrial air cooled chiller:

1. Convenient for installation and operation;

2. Integrated electronic control, microcomputer display.

3. Onestop automatic intelligent temperature control: in different environment, user does not

need to change setting due to it will automatically switch to appropriate operating temperature.

Questions about our water chiller and product:

1. How to choose suitable industrial air cooled chiller?

* Cooling capacity.

* Water flow.

* Inlet temperature and outlet temperature.

2. Why do you choose our company?

* CE certified.

* High quality.

* Competitive price.

* Beautiful appearance.

3. What is the MOQ, Payment, Packaged, Warranty?

* MOQ: 1 Set.

* Payment: 30% as deposit, 70% before delivery.

* Packaged: Wooden packaged.

* Warranty: For one year.

Product Detail:

Model HLLA ～		25DI
Rated Cooling Capacity	×1000 kcal/h	64.7
	KW	75.2
Input Power (KW)		22.5
Comp. Input Power×Qty. (KW)		9.3×2
Chillded Water Pump Model		HT50-17
Chilled Water Pump Power (KW)		1.5
Comp. Current (A)		37.2
Power Supply		3φ-380V-50HZ
Safety Protection		Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection,
Number of Refrigeration Circuit		2
Capacity Control (%)		0, 50, 100
Refrigerant		R22
Condenser		Ripple Aluminum Fins around Cooper Pipe
Power lnput of Fan (KW)		2.4
Evaporator		Shell and Tube Type
Water Side Max Pressure (MPa)		1
Dia.of Pipe to Evaporator (inch)		2"
Chilled Water Flow (L/m)		194.8
Evaporator Water Pressure drop (kPa)		28
Running Noise dB(A)		75
Tank Volume (L)		270
Total weight (Kg)		880
Dimension L×W×H		2200×1180×2200
