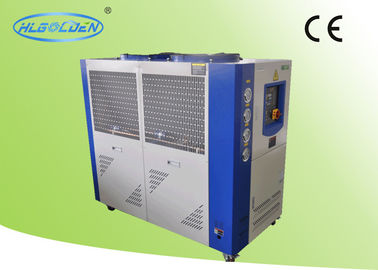

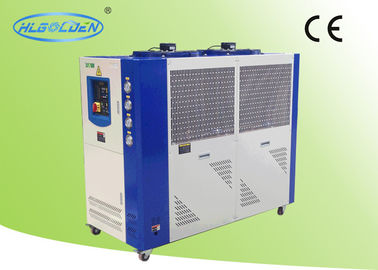

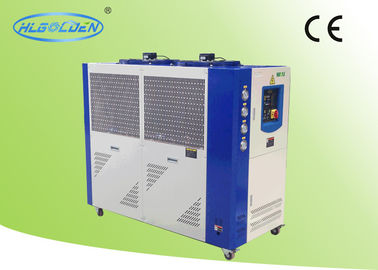

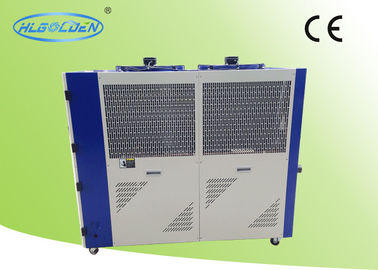

Commercial Air Cooled Water Chiller Unit 37.6 KW for Machinery Industry

Product Details:

Place of Origin:	DongGuan, GuangDong
Brand Name:	HIGOLDEN
Certification:	CE
Model Number:	HLLA~12.5SI

Payment & Shipping Terms:

Minimum Order Quantity:	1 Unit
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	25 days
Payment Terms:	T/T, Western Union, L/C, MoneyGram
Supply Ability:	20 Units per Month

Contact Now

Detailed Product Description

Function:	Chilled Water	Cooling Capacity:	37.6KW
Input Power:	12.0KW	Compressor:	1 Pc
Comp. Current:	20 A	Power Supply:	380~400V/3PH/50HZ
Circuit Number:	1	Water Tank:	180 L
Water Pump:	1.1KW	Type:	Air Cooled
Protection:	Overload Current Protection	Noise:	75 Db(A)
Total Weight:	510KG
High Light:	Water Cooler Chiller , Air Cooled Scroll Chiller

Commercial Air Cooled Water Chiller Unit 37.6 KW for Machinery Industry

Product Description:

Golden chiller consists of compressor, control panel, condenser, evaporator
and water pump, water tank.
You can choose the type and brand of these components yourself .

1. Compressor
Our standard industrial water cooled chiller use the famous Copeland scroll compressors. If you have
requirement of compressor, pls tell us the brands you need.

2. Control Panel
Normally, scroll chiller is equipped key control panel with LED display (Punp Brand).

3. Condenser
Finned type condenser: Ripple aluminum fins around copper pipe, can be titanium coil tube type or

stainless plate type.

4.Evaporator
The evaporator of our air cooled chiller is shell and tube type.

5. Water Pump
The air cooled industrial chiller has inside water pump and water tank, easy installation, it doesn’t need

to compact cooling tower and other water tank.

6. Water Tank
Different models with different sizes of water tank: 80L~270L.

Product Function:

Injection Industry
Golden chiller can accurately control the temperature of mold which can improve the quality and

production rate.

Electronic Component Industry
Golden chiller can stabilize the molecular structure of electronic component inside. This can improve

the FTQ and product time.

Machinery Industry
Golden chiller can cool down the oil for the machine and stabilize the oil temperature and pressure.

It’ll extend the useful life of oil. And it can also improve mechanical lubrication efficiency.

Electroplating Industry
The temperature of electroplate can be controlled by our chiller. It can improve the density and smooth

of electroplate and production efficiency.

Food & Drink Processing Industry
The temperature of processed food and drink will be too high to be packaged. Golden chiller can cool

it down through food grade stainless steel heat exchanger.

Product Detail:

Model HLLA ～		12.5SI
Rated Cooling Capacity	×1000 kcal/h	32.3
	KW	37.6
Input Power (KW)		12.0
Comp. Input Power×Qty. (KW)		9.3
Chillded Water Pump Model		HT50-17
Chilled Water Pump Power (KW)		1.5
Comp. Current (A)		20
Power Supply		3φ-380V-50HZ
Safety Protection		Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection,
Number of Refrigeration Circuit		1
Capacity Control (%)		0, 100
Refrigerant		R22
Condenser		Ripple Aluminum Fins around Cooper Pipe
Power lnput of Fan (KW)		1.2
Evaporator		Shell and Tube Type
Water Side Max Pressure (MPa)		1
Dia.of Pipe to Evaporator (inch)		2"
Chilled Water Flow (L/m)		107.8
Evaporator Water Pressure drop (kPa)		28
Running Noise dB(A)		75
Tank Volume (L)		180
Total weight (Kg)		510
Dimension L×W×H		1500×1100×2200
