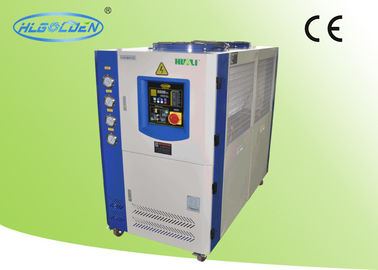

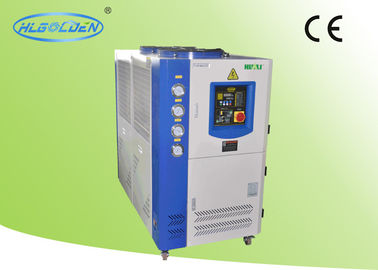

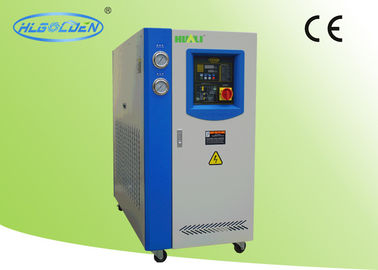

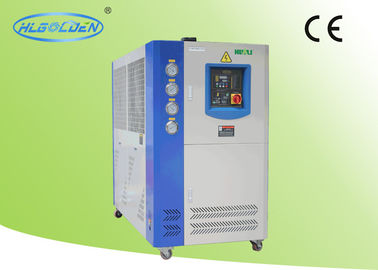

Recirculating Air cooled Industrial Water Chiller Box , Phase Reversion Protection

Product Details:

Place of Origin:	Shenzhen, Dongguan
Brand Name:	Golden
Certification:	CE
Model Number:	HLLA~08SI

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD 1500
Packaging Details:	Standard packaged Wooden packaging
Delivery Time:	15~25 days
Payment Terms:	D/A, Western Union, MoneyGram
Supply Ability:	20 Units per Month

Contact Now

Detailed Product Description

Function:	Cooled Water	Cooling Capacity:	24.2KW
Input Power:	8.15KW	Compressor:	1 Pc
Comp. Current:	14A	Power Supply:	380~400V/3PH/50HZ
Circuit Number:	1	Water Tank:	180 L
Water Pump:	1.1KW	Color:	Blue
Type:	Air Cooled	Protection:	Overload Current Protection
Noise:	73 Db(A)	Total Weight:	430KG
High Light:	Water Cooler Chiller , Water To Water Chiller

Recirculating Air cooled Industrial Water Chiller Box , Phase reversion protection

Product Description:

1. Working power supply: 380V/50Hz/3Ph.

2. Temperature control precision: ≤ ± 1 °C.

3. Temperature control range: 5 °C~20 °C.

4. Total power: 8.15KW.

5. Cooling capacity: 24.2KW.

6. Refrigerant: R22 / R407C / R134A.

7. Working environment: temperature ≤ 36 °C.

Product Function:

The water chiller is widely applicable for:

• Induction heating equipment, and diathermy device
• High / medium frequency power supply, and IGBT quenching equipment
• Die casting machine, injection molding machine
• Rectifier equipment, and resistance welding machine
• Other water equipment with higher requirements on water quality and water temperature.

Product Detail:

Model HLLA ～		08SI
Rated Cooling Capacity	×1000 kcal/h	20.8
	KW	24.2
Input Power (KW)		8.15
Comp. Input Power×Qty. (KW)		6.35
Chillded Water Pump Model		HT40-15
Chilled Water Pump Power (KW)		1.1
Comp. Current (A)		14
Power Supply		3φ-380V-50HZ
Safety Protection		Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection,
Number of Refrigeration Circuit		1
Capacity Control (%)		0, 100
Refrigerant		R22 / R407C
Condenser		Ripple Aluminum Fins around Cooper Pipe
Power lnput of Fan (KW)		0.7
Evaporator		Shell and Tube Type
Water Side Max Pressure (MPa)		1
Dia.of Pipe to Evaporator (inch)		1-1/2"
Chilled Water Flow (L/m)		69.4
Evaporator Water Pressure drop (kPa)		17
Running Noise dB(A)		73
Tank Volume (L)		180
Total weight (Kg)		430
Dimension L×W×H		1500×1100×2200
